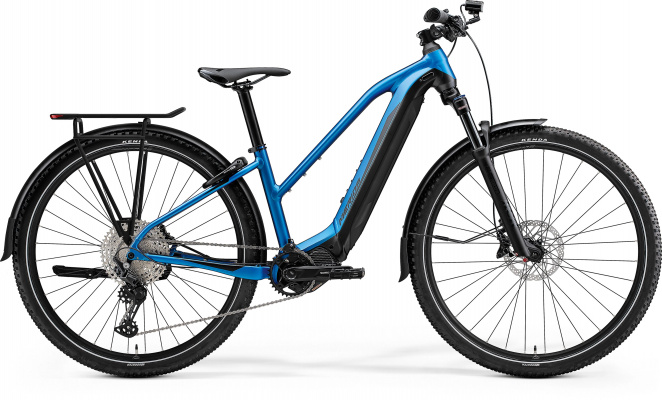

Merida eBIG.TOUR 600 EQ

About the Merida eBIG.TOUR 600 EQ

Think of the eBIG.TOUR 600 EQ as the cycling equivalent of a capable SUV: it'll haul your shopping through winter rain, carry panniers across a long weekend in the Highlands, and still handle a muddy bridleway without complaint. Merida's built this around a triple-butted PROLITE 66 aluminium frame that borrows stiffness tricks from their mountain-bike catalogue - tapered head tube, oversized seat tube, a cast motor bracket and 148×12mm rear thru-axle - then wraps it in trekking practicality. The Shimano EP6 motor sits low and central, delivering 85Nm through a natural-feeling pedal stroke, while the 630Wh battery tucks inside the down tube where it's safe from kerb strikes and weather.

Out of the crate you get full mudguards, a MIK HD rear rack with integrated tail-light, a Lezyne front lamp and a kickstand. No need to hunt down accessories or book a workshop slot; you're ready to ride. The 100mm Suntour XCR34 fork takes the sting out of potholes and towpath roots, the 1×11 Deore drivetrain spans 11-51 teeth for steep climbs, and Shimano's four-piston front brake hauls you down from speed with confidence. It's the sort of bike that makes sense if your week mixes canal-path commutes, supermarket runs and the occasional gravel exploration - and you'd rather own one machine that does it all than juggle two.

The 2024 spec carries over the EP6 motor and 630Wh battery that defined the 2023 model, with Merida fine-tuning frame details and keeping the build sensibly mid-tier. There's no word yet on a 2026 iteration, so what you see here is the latest confirmed platform. It's not the lightest e-bike you'll swing onto a roof rack, and it won't out-sprint a dedicated road machine, but that's not the brief. This is about reliable, comfortable miles across any surface you're likely to meet, with enough mountain-bike DNA to keep things composed when the tarmac runs out.

Merida eBIG.TOUR 600 EQ geometry

Merida hasn't published a full geometry chart for the eBIG.TOUR 600 EQ, but the frame's character is clear enough from the saddle. The riding position is upright and relaxed, with a bent top tube that drops the standover height and makes mounting easier when you're loaded with shopping or wearing work clothes. You sit tall enough to scan traffic and peer over hedgerows, yet the cockpit isn't so stretched that you lose control when the surface gets loose. The tapered head tube and slack front end bring stability at speed and calm handling on descents, while the 100mm fork keeps the front wheel tracking smoothly over ruts and roots.

Chainstays are long enough to accommodate the motor, battery and rear rack without making the bike feel sluggish, and the 148mm Boost rear axle adds lateral stiffness that you'll notice when you're out of the saddle on a steep climb or leaning into a corner. The 29-inch wheels roll over obstacles with less fuss than smaller hoops, and the 2.2-inch Kenda Booster tyres offer enough volume to run lower pressures for comfort without feeling vague. Frame sizes span S to XL, covering riders from around 158cm to 199cm, so most adults will find a fit that puts the bars and saddle where they need to be. It's a geometry that prioritises all-day comfort and confidence over razor-sharp handling, which suits the bike's touring and commuting brief perfectly.

Component choices & upgrades

The stock build is already well sorted for the bike's intended use. Shimano's Deore M5100 1×11 drivetrain is robust, shifts cleanly under motor torque, and the 11-51T cassette range means you'll spin up steep hills without grinding. The KMC e11S chain is rated for e-bike loads, and the Shimano EP6 motor's 85Nm output pairs naturally with the gearing. Shimano M4100 hydraulic brakes - four-piston up front, two-piston at the rear - offer plenty of stopping power, and the 180mm rotors front and back are sensibly sized for a bike that'll carry luggage and rider weight.

The Suntour XCR34 fork is air-sprung, so you can tune it to your weight and load, and 100mm travel is enough to smooth rough towpaths and gravel without adding unnecessary weight or maintenance. The Merida Comp CC rims are aluminium with a 20mm internal width, and the Shimano MT400 hubs use Centerlock mounts and thru-axles for stiffness and ease of wheel changes. The Kenda Booster tyres are a sensible all-rounder, but if you're spending more time on tarmac you could swap them for something faster-rolling with a slick centre tread; if you're venturing onto looser trails more often, a chunkier tread pattern would add grip without exceeding the frame's 2.35-inch clearance.

The Merida Expert cockpit - 720mm aluminium bar, 90mm adjustable stem, ergonomic grips - is comfortable and practical, though riders chasing a more aggressive position might prefer a longer stem or narrower bar. The 34.9mm aluminium seatpost is sturdy, and some riders fit a suspension post for extra comfort on longer rides. The MIK HD rack system is a highlight: it's rated for serious loads, integrates the rear light, and accepts MIK-compatible panniers without fiddly straps. Unless you're planning to race or tackle serious singletrack, the stock spec will serve you well for years. Upgrades are best saved for wear items - tyres, brake pads, grips - or for tailoring the bike to a specific use case once you've logged enough miles to know what you need.

Where the Merida eBIG.TOUR 600 EQ excels

This bike is outstanding at mixed-surface commuting and light touring. If your daily route threads through traffic, crosses a park, then follows a canal towpath before climbing a hill to the office, the eBIG.TOUR 600 EQ will handle it without fuss. The motor's assist feels natural and strong enough to flatten gradients, the mudguards and lights mean you're not caught out by weather or dusk, and the rack lets you carry a laptop, lunch and a change of clothes without resorting to a sweaty rucksack. It's equally capable on weekend rides that mix tarmac lanes, gravel tracks and the occasional bridleway - the suspension fork and wide tyres soak up the rough stuff, and the stable geometry keeps you confident when the surface gets loose.

It's also very good at longer tours where comfort and carrying capacity matter more than outright speed. The upright position and suspension fork mean you'll arrive fresher at the end of a long day, the 630Wh battery offers genuine range (especially if you're sensible with assist modes), and the robust frame and components will cope with loaded panniers and varied terrain. The Shimano EP6 motor is reliable and well supported, so you're not left stranded if something needs attention on a multi-day trip.

Where it's not ideal: this isn't a bike for technical mountain-bike trails or fast road rides. The geometry is too relaxed and the weight too high for aggressive singletrack, and the upright position and wide tyres create drag that'll hold you back if you're trying to keep pace with a fast road group. It's also heavier than a dedicated lightweight commuter, so if you're hauling it up flights of stairs daily or lifting it onto a car rack regularly, you'll notice the bulk. But if you want one bike that'll do commuting, shopping, touring and light off-road exploration without needing a second machine, the eBIG.TOUR 600 EQ hits that brief squarely.

Merida eBIG.TOUR 600 EQ FAQs

What is the range of the Merida eBIG.TOUR 600 EQ?
The 630Wh Shimano battery will typically deliver 60 - 100km of range depending on terrain, assist mode, rider weight and load. Use Eco mode on the flat and you'll stretch that further; lean on Boost mode for steep climbs and the range drops. Real-world touring with moderate assist and mixed terrain usually lands somewhere in the middle of that span.

What type of motor does the Merida eBIG.TOUR 600 EQ use?
It's powered by Shimano's EP6 motor, which delivers 85Nm of torque with a natural, progressive feel that mirrors your pedal effort. The EP6 sits in the middle of Shimano's range - more powerful than the E6100, less aggressive than the EP8 - and it's proven reliable across Shimano's trekking and mountain-bike platforms.

Is the Merida eBIG.TOUR 600 EQ good for touring?
Yes, very. The comfortable geometry, suspension fork, wide gear range and integrated rack make it well suited to loaded touring. The 630Wh battery offers enough range for a full day's riding with moderate assist, and the robust frame and Shimano drivetrain will handle the extra weight and varied surfaces you'll meet on multi-day trips.

What are the key features of the Merida eBIG.TOUR 600 EQ?
Shimano EP6 motor with 85Nm torque, 630Wh integrated battery, 100mm Suntour air fork, 1×11 Deore drivetrain with 11-51T cassette, Shimano four-piston front brake, full mudguards, MIK HD rear rack with integrated light, Lezyne front light, and 29×2.2-inch Kenda Booster tyres. The PROLITE 66 aluminium frame uses internal cable routing and a tapered head tube for stiffness and clean looks.

How much does the Merida eBIG.TOUR 600 EQ weigh?
Around 21kg without the battery. Add the battery and you're closer to 24kg. That's typical for a well-equipped trekking e-bike with a suspension fork and full accessories, but it's worth considering if you need to lift the bike regularly.

Can I fit wider tyres on the Merida eBIG.TOUR 600 EQ?
The frame clears up to 29×2.35 inches without mudguards, or 29×2.25 inches with guards fitted. The stock 2.2-inch Kenda Booster tyres leave a bit of room, so you could go slightly wider for more grip or cushion, but you won't fit full-on mountain-bike rubber.

What is the intended use for the Merida eBIG.TOUR 600 EQ?
It's designed for versatile use: daily commuting, weekend touring, light off-road exploration and general utility riding. The combination of mountain-bike stability, trekking practicality and e-bike assist makes it a strong all-rounder for riders who want one bike to cover multiple roles.

Is the Merida eBIG.TOUR 600 EQ suitable for commuting in all weather?
Absolutely. Full mudguards keep spray off you and the bike, integrated lights ensure you're visible in low light, and the Shimano hydraulic disc brakes work reliably in the wet. The upright position gives good visibility in traffic, and the motor's assist flattens hills and headwinds, so you'll arrive less sweaty and more punctual than on an unassisted bike.
