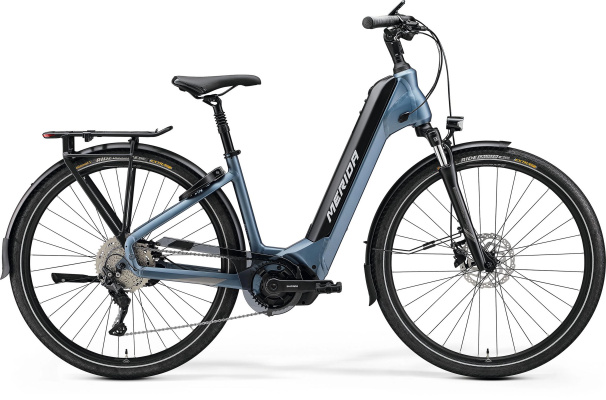

Merida eSPRESSO CITY 500 EQ

About the Merida eSPRESSO CITY 500 EQ

Merida's eSPRESSO CITY 500 EQ is built around one simple truth: the best urban e-bike is the one you'll actually use every day. That means a frame you can step through without yoga training, a motor that doesn't leave you sweating through your shirt, and enough battery to forget about range anxiety. The Energy Cradle frame design drops the 630Wh battery low and central, giving you a planted, natural feel rather than the top-heavy wobble some city e-bikes suffer. You get Shimano's EP6 drive unit - 85Nm of torque that flattens hills without drama - and a spec sheet that reads like a checklist of everything you'd add yourself: hydraulic discs, integrated lights, a proper rack, full-length mudguards, even a frame lock.

This isn't a bike that demands compromise. The step-through is genuinely low and wide, so you can swing on in work trousers or a skirt without contortions, and the upright cockpit keeps your head up and your back happy over longer distances. Merida's fitted 50mm Continental Ride Cruisers on 20mm-internal rims, which means you're rolling over potholes and tram tracks with more composure than most road bikes muster. There's a suspension seatpost with 40mm travel and a basic SR Suntour coil fork up front - nothing fancy, but enough to take the sting out of kerb drops and cobbled side streets. It's a bike that works the moment you roll it out of the shop, and keeps working through rain, rush hour, and the occasional detour down a towpath.

The 2025 model carries forward the core recipe from the previous year's EP6-equipped version, refining rather than reinventing. You're looking at a 10-speed Shimano drivetrain - either Deore or the newer CUES U6000 depending on build - paired with an 11-46T cassette and a single 38T chainring. It's simple, it's robust, and it covers the range you need without fuss. Weight sits around 28kg, which is typical for a well-equipped city e-bike with this much battery capacity. That heft disappears the moment you twist the throttle (metaphorically - this is pedal-assist only, as UK law requires), and the low centre of gravity means the bike feels nimbler than the scales suggest. If you've been circling the idea of an e-bike but worried about clunky handling or a learning curve, the eSPRESSO CITY makes a compelling case for just getting on and riding.

Merida eSPRESSO CITY 500 EQ geometry

Merida's drawn the eSPRESSO CITY with a 70-degree head angle and a relatively short reach - 386mm on the XS, stretching to around 441mm on the XL - which translates to an upright, confidence-inspiring posture. You're not leaning forward hunting for speed; you're sitting tall with your weight centred, scanning traffic and enjoying the view. The stack is generous without being absurdly high, so you get comfort without feeling perched on a bar stool. That relaxed head angle and short front centre mean steering is light and responsive - some riders find it surprisingly quick at first, but the low battery placement and 470mm chainstays anchor the rear wheel firmly, so the bike tracks straight and stable even when you're threading through tight gaps or riding no-handed (not that we're suggesting you do).

The tapered head tube adds a dose of precision that cheaper city bikes often lack; you get clean, predictable turn-in rather than vague wandering. Wheelbase hovers around 1,120mm on the smallest frame, growing incrementally with size, which keeps the bike manoeuvrable in car parks and bike sheds without feeling twitchy on open roads. The 65mm bottom bracket drop is modest, so pedal strikes are rare even if you're cutting across a dropped kerb at an angle. Chainstays are consistent across sizes, which means smaller riders get the same planted feel as taller ones - no compromise in stability just because you're on the XS. The result is a bike that feels intuitive from the first pedal stroke, with enough agility to nip through city centres and enough composure to cruise canal paths or quiet B-roads without second-guessing every input.

Component choices & upgrades

The stock build is already well sorted for its intended role. Shimano's EP6 motor is one of the most refined mid-drives on the market, delivering smooth, progressive power that feels like a tailwind rather than a shove in the back. The 630Wh battery is generous - expect 60 to 100 miles depending on terrain, assist level, and how much you're willing to contribute - and it charges in around four hours. The 10-speed drivetrain offers enough range for steep climbs and flat-out cruising, and the Shimano MT-200 hydraulic brakes (or Tektro M275 on some builds) haul you down reliably with 180mm rotors front and rear. The Continental Ride Cruiser tyres are fast-rolling and grippy on tarmac, with a reflective sidewall stripe for visibility, though their wire bead and relatively smooth tread mean they're not ideal if you're planning serious off-road excursions.

If you're chasing upgrades, start with the tyres. Swapping to a more aggressive tread - something like a Schwalbe Marathon or a light gravel option - opens up towpaths and bridleways without sacrificing too much speed on the road. The SR Suntour NEX coil fork is functional but basic; if you're regularly riding rough surfaces, an air-sprung fork with lockout would add control and reduce weight, though it's not essential for most urban riders. The suspension seatpost does a decent job of smoothing out bumps, but a higher-quality post with adjustable preload can fine-tune comfort if you're particularly sensitive to vibration. Beyond that, consider ergonomic tweaks: a wider saddle if you're doing longer rides, or locking grips if the stock ones feel slippery in the wet. The beauty of the eSPRESSO CITY is that it doesn't need much - Merida's already done the thinking for you.

Where the Merida eSPRESSO CITY 500 EQ excels

This bike is outstanding at daily urban commuting and practical transport. If your routine involves stop-start traffic, short climbs, wet roads, and the occasional detour through a park or along a canal, the eSPRESSO CITY handles it all without complaint. The low step-through and upright position make it genuinely accessible - ideal if you're carrying a bag, wearing work clothes, or simply want a bike that doesn't demand athletic flexibility. The integrated lights, rack, and mudguards mean you're ready for year-round use straight out of the box, and the Shimano EP6 motor has enough grunt to flatten hills that would leave non-assisted riders gasping.

It's also excellent for leisure rides and light touring. The big battery and comfortable geometry make 30- or 40-mile days entirely feasible, and the wide tyres soak up rough tarmac and gravel paths with ease. You can load up the rear rack with panniers, dial in a moderate assist level, and cruise at a steady 15mph without breaking a sweat. Where it's not ideal is aggressive off-road riding or technical trails - the basic suspension, urban-focused tyres, and relaxed geometry aren't designed for rooty singletrack or steep descents. It'll handle a towpath or a well-maintained bridleway happily, but if you're after a bike that doubles as a weekend trail explorer, Merida's eSPRESSO CC range (with wider tyres and more capable suspension) is the better shout. Similarly, if you're chasing outright speed or racing club rides, the upright position and weight will hold you back. This is a bike that prioritises comfort, practicality, and ease of use over performance - and it delivers on those priorities brilliantly.

Merida eSPRESSO CITY 500 EQ FAQs

What is the range of the Merida eSPRESSO CITY 500 EQ?
Expect between 60 and 100 miles on a full charge, depending on terrain, assist level, and rider input. The 630Wh battery is one of the larger capacities in the city e-bike category, so you're unlikely to run dry on a typical commute or day ride. Eco mode stretches range furthest; Turbo mode drains faster but flattens hills effortlessly.

How much does the Merida eSPRESSO CITY 500 EQ weigh?
Around 28kg for the 2024 model, and the 2025 version is likely similar. That's typical for a well-equipped city e-bike with a large battery and full accessories. The weight feels less noticeable when riding thanks to the low centre of gravity and motor assistance, though you'll notice it if you need to lift the bike up stairs or onto a rack.

Is the Merida eSPRESSO CITY 500 EQ good for hills?
Yes, very. The Shimano EP6 motor delivers 85Nm of torque, which is more than enough to tackle steep urban climbs without strain. The 10-speed drivetrain and 11-46T cassette give you plenty of low gears to keep cadence comfortable, and the motor's smooth power delivery means you can modulate effort precisely on variable gradients.

What size Merida eSPRESSO CITY 500 EQ should I get?
Merida offers XS through XL, with the XS suiting riders from around 148cm to 158cm, and the XL covering up to 198cm. The step-through design is forgiving, so if you're between sizes, consider your riding style: smaller for nimble city handling, larger for stability on longer rides. The adjustable stem helps fine-tune reach once you're on the bike.

Can the Merida eSPRESSO CITY 500 EQ be used on trails?
Light trails and well-maintained gravel paths, yes; technical singletrack, no. The 50mm tyres and basic suspension cope with towpaths, canal routes, and smooth forest tracks, but the urban-focused tread and limited fork travel aren't designed for roots, rocks, or steep descents. If you want a Merida e-bike with more off-road capability, look at the eSPRESSO CC models with their wider tyres and more robust suspension.

What is the difference between Merida eSPRESSO CITY and eSPRESSO CC?
The eSPRESSO CITY prioritises urban practicality with a lower step-through, 700c wheels, and narrower tyres suited to tarmac and light paths. The eSPRESSO CC uses 650b wheels with wider, knobbier tyres (often 2.25-inch or more), a more capable suspension fork, and a slightly more upright geometry, making it better suited to mixed terrain, rougher trails, and riders who want one bike for both city commutes and weekend adventures.

Is the Merida eSPRESSO CITY 500 EQ suitable for long commutes?
Absolutely. The generous battery range, comfortable upright position, suspension seatpost, and wide tyres all contribute to a bike that's happy covering 20, 30, or even 40 miles in a day. The integrated rack and mudguards mean you can carry work gear and stay clean in wet weather, and the Shimano EP6 motor ensures you arrive fresh rather than exhausted, even if your route includes hills.
