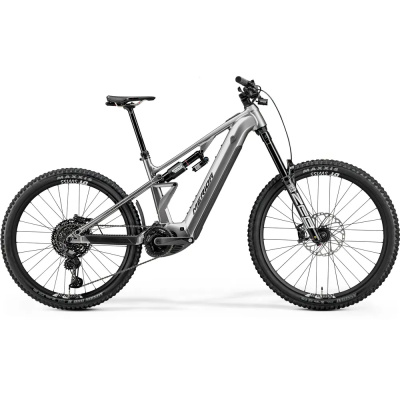

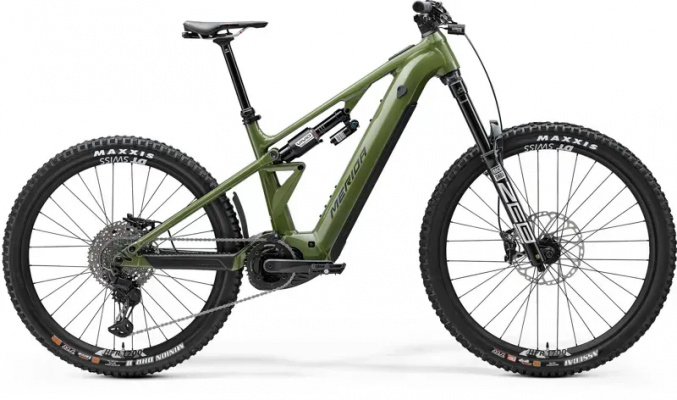

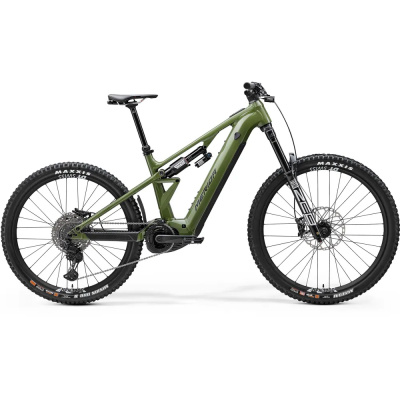

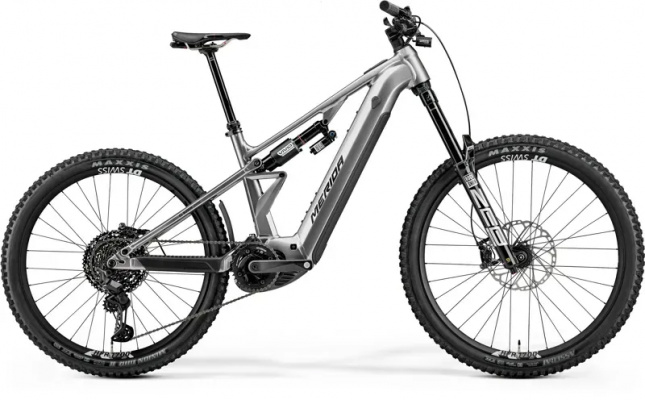

Merida eONE-EIGHTY 900

About the Merida eONE-EIGHTY 900

This is Merida's longest-travel e-MTB, and it wears that crown with intent. The eONE-EIGHTY 900 pairs a robust aluminium frame with 180mm of RockShox suspension front and rear, a Bosch Performance Line CX motor, and an 800Wh battery that'll outlast your legs on all but the most marathon days. It's built for gravity-focused riding - bike parks, big mountain descents, enduro stages where the clock starts at the top and you're hunting every second on the way down. The mullet wheel setup - 29-inch front, 27.5-inch rear - gives you the rollover momentum of a bigger wheel up front and the snappy, flickable rear end that makes tight switchbacks and sudden line changes feel intuitive rather than wrestled. Weight sits around 27 kilograms, so you're not hoisting this over stiles, but once it's rolling the mass becomes an asset: it ploughs through chunder, holds a line in ruts, and settles into high-speed descents with the composure of a much longer bike.

Merida's AGILOMETER sizing system underpins the whole package. Rather than locking you into a single frame size based on inseam, it offers reach-based options that let you size down for a more playful, agile feel or size up for stability and confidence at speed. The geometry is modern without being extreme - steep seat angle to keep your weight forward on climbs, slack head angle to inspire confidence when the trail pitches down. Short chainstays (a byproduct of that mullet setup) mean the front wheel can lift on really steep technical climbs if you're not careful with weight distribution, but they also mean the bike pivots beneath you rather than ploughing wide. It's a trade-off that makes sense when descending is the priority and the motor is there to flatten most climbs anyway.

The 900 sits at the sharp end of the eONE-EIGHTY range, specced with Shimano XT brakes (four-piston, 220mm front rotor), an 11-speed Shimano Linkglide drivetrain chosen for durability under motor torque, and DT Swiss wheels on Maxxis rubber - Assegai up front for grip, Minion DHR II out back for predictable drift. RockShox's Zeb Ultimate fork and Vivid Ultimate Air shock bring countless clicks of adjustment, but they're intuitive to set up and reward time spent dialling sag and rebound. The frame carries a Category 5 rating, meaning Merida will warranty it for bike-park and downhill use - a confidence vote that matters when you're committing to repeated high-impact runs. Integrated front and rear lights, a magnetic Fidlock battery cover, and headset cable routing round out a package that's clearly been thought through for riders who want to session hard without constant fettling.

Merida eONE-EIGHTY 900 geometry

The numbers translate to a bike that feels longer and lower than older-generation trail e-MTBs but stops short of the sprawling proportions you'd find on a pure downhill sled. Reach grows across the size range, and Merida's AGILOMETER system means you can pick a frame that suits your style: size down and you'll find the bike easier to throw into corners and manual over obstacles; size up and you'll gain stability at speed and more room to shift your weight back when the trail gets properly steep. The slack head angle - typical of modern enduro geometry - keeps the front wheel tracking ahead of you on fast, rough descents, while the steep seat angle plants you over the bottom bracket for efficient climbing. That's crucial on an e-MTB, where the motor flattens gradients but can't fix poor weight distribution.

Short chainstays are the defining quirk. They make the bike feel compact and responsive, especially when you're pumping through rollers or snapping the rear wheel round tight berms. On very steep, technical climbs - the kind where you're picking your way up rock steps at walking pace - you'll need to consciously weight the front end to stop the wheel lifting. It's not a flaw so much as a character trait, and one that makes sense when you consider this bike's primary mission: getting to the top efficiently so you can rip back down with maximum agility. The mullet setup reinforces that intent. The 29-inch front wheel rolls over square edges and roots with less deflection, holding momentum through rough sections, while the smaller rear wheel tucks in tight and lets you change direction without the sluggishness that can plague full-29ers at this travel length. Wheelbase is generous enough to inspire confidence at speed, but not so long that you're planning every turn three bike-lengths ahead.

Component choices & upgrades

The stock build is well sorted. Shimano's XT four-piston brakes deliver consistent power and modulation, and the 220mm front rotor gives you plenty of leverage when you're scrubbing speed on long descents. The Linkglide drivetrain - 11-speed with an 11-50 cassette - prioritises durability over the widest possible range, which makes sense on an e-MTB where the motor fills in the gaps. Shifts are clean, and the beefier construction holds up better to the sustained torque of the Bosch motor than a standard mountain bike cassette would. DT Swiss HF 1700 wheels are solid all-rounders: 30mm internal width supports the chunky Maxxis tyres well, and the hubs are reliable if not exotic. Maxxis Assegai and Minion DHR II are proven choices - grippy, predictable, and available in a range of casings if you want to fine-tune for your local trails.

If you're chasing marginal gains or riding terrain that demands more, there are sensible upgrade paths. A coil shock - RockShox's Vivid Coil or a Fox DHX2 - will add a touch more small-bump sensitivity and a more linear, supportive feel on repeated big hits, though you'll sacrifice some climb efficiency and add a bit of weight. Wheels are an obvious target if you're racing or simply want to shed rotating mass: a lighter, stiffer set with faster-engaging hubs will sharpen acceleration and make the bike feel more responsive out of corners. Tyres are the easiest tweak - swap to a faster-rolling rear if you're spending more time on hardpack, or go full MaxxGrip front and rear if your local trails are permanently damp and you value grip over longevity. Contact points matter too: a wider bar (800mm or more) will give you more leverage on steep descents, and a different saddle might suit your anatomy better than the stock Proxim. But none of these are urgent. The 900 arrives ready to ride hard, and most riders will get more from dialling suspension settings and tyre pressures than from swapping parts.

Where the Merida eONE-EIGHTY 900 excels

This bike is outstanding at one thing above all: descending fast, rough, technical trails where you want to carry speed and let the suspension do the thinking. Bike parks, enduro stages, big mountain epics where the fun starts when you point downhill - that's its natural habitat. The 180mm of travel soaks up repeated impacts without feeling wallowy, the mullet setup keeps the rear end agile, and the weight (which feels like a burden in the car park) becomes an advantage once you're committed to a line. It holds momentum through rock gardens, tracks beautifully in ruts, and inspires the kind of confidence that lets you brake later and push harder into corners. The Bosch motor and 800Wh battery mean you can session the same descent over and over without the soul-sapping grind of pedalling back up fire roads, and the Category 5 frame rating means you can ride it as hard as your skill allows without worrying you're voiding the warranty.

It's also very capable on long, rough trail rides where the terrain is varied and the descents are worth the climb. The motor flattens most gradients, the geometry keeps you comfortable over hours in the saddle, and the suspension irons out the kind of trail chatter that would leave you beaten up on a shorter-travel bike. Integrated lights mean you can stretch a ride into dusk without planning ahead, and the 800Wh battery gives you genuine all-day range if you're not hammering Turbo mode on every climb. It's less ideal for tight, twisty singletrack where constant direction changes and minimal elevation gain make the weight feel like a handicap, and it's overkill for mellow trail centres or anything approaching cross-country pace. If your riding is more about flow and efficiency than gravity and gnar, you'd be better served by the shorter-travel eONE-SIXTY or a lighter, more playful trail e-MTB. But if you want a bike that'll get you to the top without complaint and then reward you with composed, confidence-inspiring descents, the eONE-EIGHTY 900 delivers exactly that.

Merida eONE-EIGHTY 900 FAQs

What is the weight of the Merida eONE-EIGHTY 900?
Around 27 kilograms for a size Large, which is typical for a long-travel e-MTB with an 800Wh battery and robust aluminium frame. It's not a bike you'll want to carry far, but the mass works in your favour once you're rolling, especially on rough descents where it holds momentum and tracks with confidence.

What is the range of the Merida eONE-EIGHTY 900 with its 800Wh battery?
Range depends heavily on terrain, rider weight, assist mode, and how much climbing you're doing, but the 800Wh PowerTube will comfortably see you through a full day of trail riding or multiple bike-park laps. Expect anywhere from 1,200 to 2,000 metres of climbing on a single charge if you're mixing modes sensibly; less if you're hammering Turbo all day, more if you're conservative on flatter sections.

Is the Merida eONE-EIGHTY 900 good for climbing?
The Bosch CX motor and steep seat angle make it very capable on climbs, flattening most gradients and keeping your weight centred over the bottom bracket. Short chainstays can cause the front wheel to lift on very steep, technical climbs if you don't shift your weight forward, but on fire roads and typical trail climbs it's efficient and confidence-inspiring. It's not an XC race bike, but it'll get you to the top without drama.

What are the key differences between the Merida eONE-EIGHTY and eONE-SIXTY?
The eONE-EIGHTY has 180mm of travel front and rear versus 160mm on the eONE-SIXTY, a mullet wheel setup (29"/27.5") rather than full 29-inch wheels, and geometry that's more gravity-focused. The eONE-SIXTY is lighter, more agile on tighter trails, and better suited to all-round trail riding; the eONE-EIGHTY is built for bigger hits, faster descents, and bike-park use.

What type of riding is the Merida eONE-EIGHTY 900 best suited for?
Gravity-focused riding: bike parks, enduro racing, big mountain descents, and long trail rides where the descents are the highlight. It's also excellent for riders who want to session the same descent repeatedly without the fatigue of climbing back up. Less ideal for tight, twisty singletrack or mellow trail centres where the weight and travel feel like overkill.

Can I fit a different rear shock on the Merida eONE-EIGHTY 900?
Yes, the frame is compatible with coil shocks as well as the stock RockShox Vivid Ultimate Air. A coil shock will add a touch more small-bump sensitivity and a more linear feel on repeated big hits, though you'll sacrifice some climb efficiency and add weight. Make sure any replacement shock matches the correct eye-to-eye and stroke measurements for the frame.

How does the AGILOMETER sizing system work on Merida bikes?
AGILOMETER is a reach-based sizing system that lets you choose a frame size based on your riding style rather than just your height. Size down for a more agile, playful feel with quicker handling; size up for more stability at speed and room to move your weight back on steep descents. Merida provides overlapping height ranges across sizes so you can pick the fit that suits your priorities.
