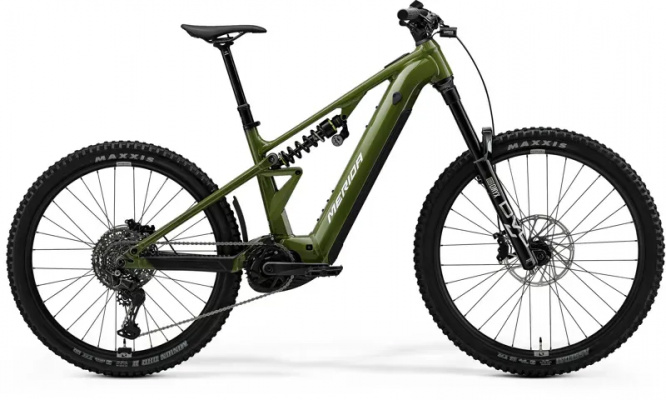

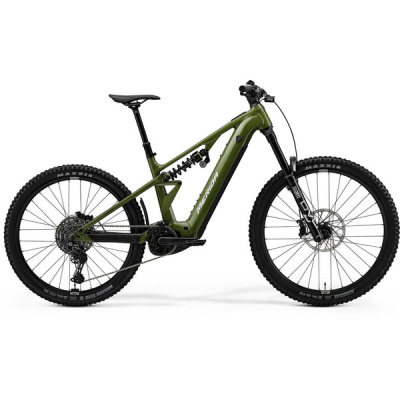

Merida eONE-EIGHTY FR 600

About the Merida eONE-EIGHTY FR 600

Merida's eONE-EIGHTY FR 600 is a gravity bike with a built-in uplift. Where most e-MTBs hedge their bets between climbing efficiency and descending prowess, this one plants its flag firmly on the downhill side of the argument. You're looking at 180mm of travel front and rear, a DVO coil shock, a mullet wheel setup, and geometry that's more interested in holding a line through rock gardens than dancing up switchbacks. The Bosch Performance Line CX motor and 800Wh battery give you the range to session your favourite descent until your arms give out, not your charge.

Built around Merida's LITE I aluminium frame - rated Category 5 for the kind of abuse that makes warranty departments nervous - the FR 600 channels the brand's award-winning FAST kinematic into a package that prioritises strength and descending confidence over gram-shaving. The spec reflects that philosophy: SRAM's four-piston DB4 brakes with a 220mm front rotor, Reynolds 309 Enduro Comp rims with a 30mm internal width, and Maxxis rubber chosen for grip and durability rather than rolling speed. It's a bike that knows what it's for.

At 27.6 kg it's no featherweight, but the mullet setup - 29-inch front, 27.5-inch rear - keeps it surprisingly nimble when you're threading tight lines or snapping through transitions. The weight matters less when you're pointed downhill and the suspension is soaking up everything the trail throws at you. This isn't a bike that pretends to be all things; it's a tool for riders who want to maximise their descending time without relying on a van shuttle or chairlift.

Merida eONE-EIGHTY FR 600 geometry

The numbers here are drawn with a Sharpie, not a pencil. A 64.5-degree head angle plants the front wheel out ahead of you, giving you the stability to hold speed through rough sections and the confidence to commit when the trail gets steep. Paired with a 78.5-degree seat angle, you're positioned forward enough to weight the front when climbing - though let's be honest, climbing isn't this bike's party piece - and the reach figures span from 415mm in XShort to 505mm in XLong, following Merida's Agilometer sizing philosophy that prioritises reach over arbitrary frame labels.

Short chainstays - around 440mm - keep the rear end snappy despite the long front centre, so you can still manual over roots and pivot the bike mid-corner without fighting its length. The mullet wheel configuration sharpens that agility further; the smaller rear wheel tucks in tighter and lets you flick the bike around with less effort than a full 29er would demand. Combined with a low bottom bracket that drops your centre of gravity, the FR 600 feels planted and composed when you're leaning into berms or bracing for compressions.

Stack grows progressively with size, ensuring taller riders aren't folded over the bars, and Merida tunes dropper post travel to match - 125mm in XShort, climbing to 230mm in XLong. That attention to proportion means every size gets the same confident, centred riding position, whether you're 160cm or pushing two metres. When you're committed to a line and the trail is coming at you fast, that balance between length and agility is what keeps you in control.

Component choices & upgrades

The stock build is already well sorted for its intended use. DVO's Onyx 38 fork and Jade X coil shock are gravity-focused pieces that prioritise small-bump sensitivity and big-hit absorption over weight savings. The coil rear shock, in particular, delivers a plush, consistent feel through the travel that air shocks struggle to match when you're hammering rough descents lap after lap. SRAM's DB4 brakes bring four-piston stopping power and a 220mm front rotor - more than adequate for controlling speed on long, steep runs - and the Reynolds 309 rims are built to take impacts without folding.

Shimano's CUES drivetrain is the compromise here: a functional 1x10 setup with an 11-48 cassette that covers the range you need, but it's not the silky-smooth shifting or wide span of a higher-tier groupset. For most riders, it'll do the job without fuss. If you're chasing marginal gains or find yourself grinding through technical climbs where every gear counts, a move to Shimano's XT or SRAM's GX would sharpen the experience - but you'll be spending money that Merida wisely allocated elsewhere.

Maxxis rubber is well chosen: an Assegai up front in 3C MaxxGrip with EXO+ casing gives you the grip and confidence to lean hard into corners, while the Minion DHR II rear in MaxxTerra compound balances traction with a bit more rolling efficiency. If you're riding in particularly loose or muddy conditions, swapping the rear to a MaxxGrip compound or a burlier casing like DoubleDown will add security, though you'll sacrifice a touch of speed on hardpack. The stock tyres are tubeless-ready, so setting them up without tubes is a no-brainer for reducing pinch flats and improving feel.

Beyond that, upgrades should follow your riding style. If you're spending more time in bike parks or on shuttle runs, consider a cushier saddle or grips with more damping - your hands and backside will thank you after a full day of repeated descents. A shorter stem might suit riders who want even quicker steering response, though the stock 40mm is already on the stubby side. The reality is that Merida has specced this bike to handle hard riding straight out of the box; upgrades are about personalisation, not necessity.

Where the Merida eONE-EIGHTY FR 600 excels

This bike is outstanding at one thing above all: descending. Bike park laps, steep technical singletrack, rock-strewn chutes, root-choked trails - anywhere gravity does the work and you need suspension, grip, and geometry to keep you in control. The 180mm of coil-sprung travel and aggressive angles let you charge through rough sections that would have you feathering the brakes on a shorter-travel trail bike, and the Bosch motor means you can session your favourite descent over and over without the slog of pedalling back to the top.

It's also excellent for big mountain riding where the climbs are a means to an end and the descents are the reward. The 800Wh battery gives you the range to tackle long, remote routes without range anxiety, and the robust build - Category 5 rated - means you're not tiptoeing around obstacles or worrying about breaking something when you commit to a line. The mullet setup adds a layer of agility that makes the bike feel more playful than its travel and weight suggest, so you can still have fun on tighter, twistier trails rather than just pointing it downhill and holding on.

Where it's not ideal: fast, flowing XC trails or long fire-road climbs where weight and rolling resistance matter. The FR 600 will get you up, but it's not going to feel lively or efficient when you're grinding out elevation on smoother terrain. The CUES drivetrain and gravity-focused tyres aren't optimised for speed on the flat, and at 27.6 kg you'll feel every kilo when you're out of the saddle on a long slog. This is a bike for riders who accept that climbing is the price of admission, not the main event.

It's also not the best choice if you're after a nimble, flickable trail bike for tight, technical climbs or all-day epics where you're covering big distances on varied terrain. The long wheelbase and slack angles make it stable and confidence-inspiring at speed, but they also make it less eager to change direction quickly at slower speeds or in tight switchbacks. If your riding is more trail-focused than gravity-focused, Merida's eONE-SIXTY range will suit you better.

Merida eONE-EIGHTY FR 600 FAQs

What is the intended use of the Merida eONE-EIGHTY FR 600?
It's designed for aggressive trail riding, bike park laps, big mountain descents, and enduro racing. The focus is squarely on maximising descending performance and durability, with the e-assist providing the uplift so you can session challenging terrain repeatedly.

How much suspension travel does the Merida eONE-EIGHTY FR 600 have?
It offers 180mm of travel front and rear. The DVO Onyx 38 fork and DVO Jade X coil shock are both tuned for gravity-focused riding, prioritising plushness and big-hit absorption over weight savings.

What motor and battery system does the Merida eONE-EIGHTY FR 600 use?
It's powered by Bosch's Performance Line CX motor paired with an 800Wh PowerTube battery. That combination delivers strong, reliable assistance and enough range to lap bike parks or tackle long mountain routes without running out of charge mid-ride.

Is the Merida eONE-EIGHTY FR 600 suitable for bike parks?
Absolutely. The Category 5 frame rating, 180mm of coil-sprung travel, robust components like SRAM DB4 brakes and Reynolds 309 rims, and aggressive geometry make it purpose-built for the repeated impacts and steep descents you'll encounter in a bike park.

What is the weight of the Merida eONE-EIGHTY FR 600?
It weighs approximately 27.6 kg. That's substantial, but the mullet wheel setup and well-tuned suspension mean the weight is well managed on descents, where it actually adds stability and momentum through rough sections.

Does the Merida eONE-EIGHTY FR 600 come with a coil shock?
Yes, it's specced with a DVO Jade X CORE coil shock as standard. The frame is also compatible with coil shocks if you want to swap or upgrade, and the coil setup delivers a plush, consistent feel that's ideal for hard, repetitive descending.

What type of brakes does the Merida eONE-EIGHTY FR 600 have?
It's fitted with SRAM DB4 hydraulic disc brakes featuring four-piston callipers. Rotor sizes are 220mm front and 200mm rear, giving you plenty of stopping power and heat management for long, steep descents.

What are the advantages of the mullet wheel setup on this bike?
The 29-inch front wheel rolls over obstacles more easily and holds momentum, while the 27.5-inch rear wheel makes the bike more agile and easier to flick through tight sections or transitions. You get the stability and speed of a 29er with the playfulness of a 27.5, which suits the bike's gravity focus perfectly.
