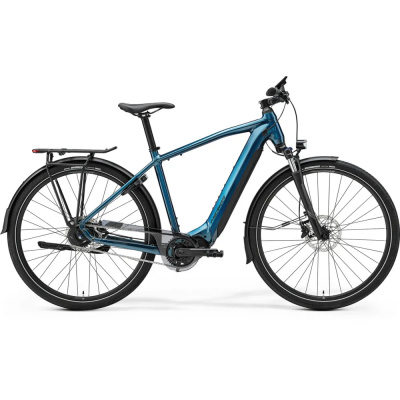

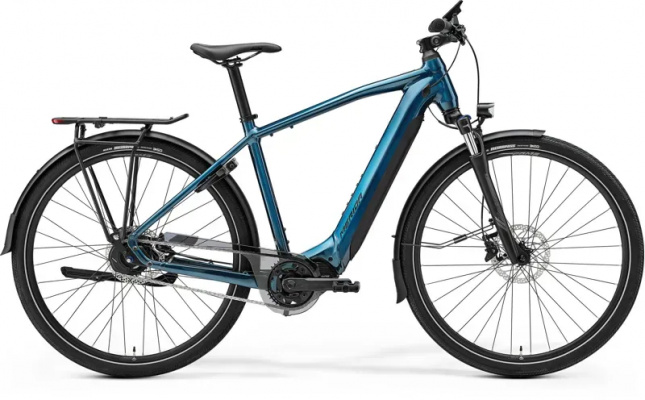

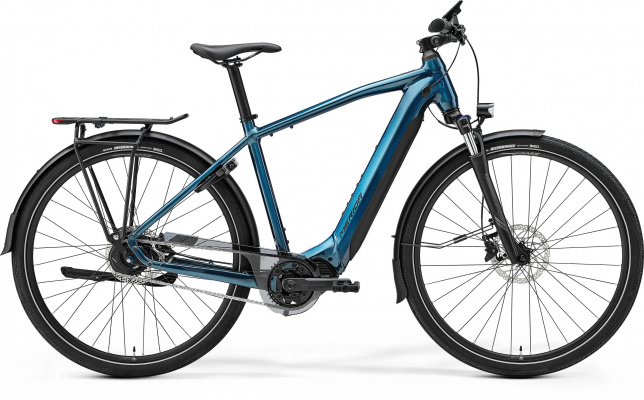

Merida eSPRESSO 775 EQ

About the Merida eSPRESSO 775 EQ

The Merida eSPRESSO 775 EQ arrives ready to work. Where many urban e-bikes ask you to bolt on the essentials yourself, this one rolls out with lights, rack, fenders, lock and kickstand already fitted - a proper city bike that doesn't need a shopping list before you can ride it. Underneath that practical shell sits Shimano's EP6 motor and a 750 Wh battery, a pairing that brings proper grunt to the morning commute and enough range to string together errands without range anxiety. The Nexus Inter-5E hub gear seals the deal: five speeds tucked inside the rear hub, shifting while you're stationary at traffic lights, no derailleur to snag or adjust. It's a bike built for the everyday, not the weekend.

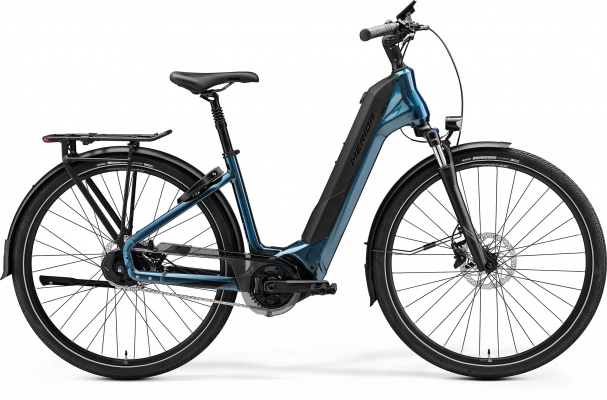

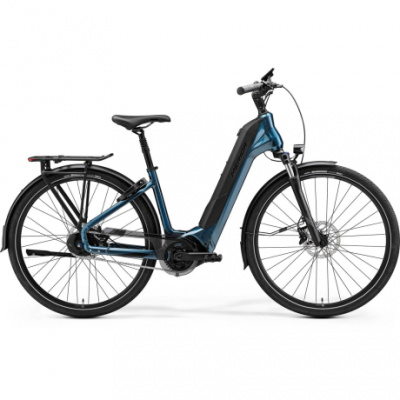

Merida's LITE IV HG aluminium frame keeps weight sensible - 28.1 kg isn't featherlight, but it's competitive for a fully loaded trekking e-bike with this much battery. The low step-through option makes mounting and dismounting effortless, whether you're in work clothes or carrying shopping. Internal cable routing and the integrated battery keep the lines clean, and the 700x50c Continental Contact Cruiser tyres offer enough cushion and grip for potholed streets and the occasional towpath detour. This isn't a bike that shouts; it just gets on with it.

You'll find the eSPRESSO 775 EQ most at home threading through city traffic, hauling cargo on the rear rack, or stretching out on longer leisure rides where comfort trumps speed. The SR Suntour NEX E25 fork adds 63 mm of travel to smooth out kerb drops and cobbles, while Shimano's MT410 hydraulic discs deliver confident stopping power in all weathers. It's a bike that rewards consistency over flash, and if you need a dependable urban workhorse that doesn't demand constant fettling, it's worth your attention.

Merida eSPRESSO 775 EQ geometry

Merida hasn't published full geometry charts for the 2025 eSPRESSO 775 EQ, but the frame's design intent is clear: upright, stable, and forgiving. The low step-through option drops the top tube almost to the down tube, making it accessible for riders who value ease of mounting over aggressive positioning. Even the traditional diamond frame keeps you sitting tall, with a short stem - 90 mm on smaller sizes, 110 mm on large and extra-large - and a 660 mm handlebar that's wide enough for control without feeling unwieldy in tight spaces.

The 700c wheels and generous tyre clearance (up to 50c with fenders) push the contact patches outward, lengthening the wheelbase and adding stability at the expense of quick steering. You won't carve tight switchbacks on this bike, but you will track straight through ruts and hold a line when the road surface turns sketchy. The suspension fork slackens the head angle slightly compared to a rigid setup, reinforcing that planted feel. It's a geometry that prioritises confidence and comfort over responsiveness, which suits the bike's urban mission perfectly.

Reach and stack figures would tell you more about fit, but the rider-height chart suggests Merida's sizing runs fairly conventional: extra-small suits riders from 156 cm, extra-large stretches to 195 cm. If you're between sizes, consider how much standover clearance you want - especially important on the step-through - and whether you prefer a more stretched or compact cockpit. The adjustable stem offers some fine-tuning, though most riders will find the stock setup comfortable enough for daily duties.

Component choices & upgrades

The eSPRESSO 775 EQ's stock build is already well sorted for its intended use. Shimano's EP6 motor and 750 Wh Trendpower battery form the backbone, delivering smooth, powerful assistance with enough capacity for extended rides. The Nexus Inter-5E hub gear is the real star here: five speeds with a wide enough range for urban gradients, sealed internals that shrug off rain and grime, and the ability to shift while stationary - a feature you'll appreciate at every red light. It's not a system you'll want to swap unless you're chasing a wider gear range or lighter weight, and for most riders, it's ideal.

Shimano's MT410 hydraulic brakes with 180 mm rotors front and rear offer dependable stopping power, and the two-piston calipers are easy to maintain. If you're regularly hauling heavy loads or tackling steep descents, four-piston calipers would add modulation and power, but the stock setup is more than adequate for typical urban and leisure riding. The Continental Contact Cruiser tyres are a sensible choice - durable, reflective sidewalls for visibility, and enough width for comfort - but if you're spending most of your time on smooth tarmac, swapping to a faster-rolling slick tyre would reduce drag without sacrificing much grip.

The SR Suntour NEX E25 fork is a basic coil unit with 63 mm of travel, enough to take the sting out of rough surfaces but not adjustable. If you're riding heavily loaded or want more plush compliance, an air fork with lockout would be a worthwhile upgrade, though it's not essential unless your routes are particularly harsh. The MERIDA EXPERT cockpit components - aluminium bar, adjustable stem, and saddle - are functional rather than fancy; if you're logging serious miles, a saddle swap tailored to your sit-bone width and a set of ergonomic grips will improve comfort more than any other single change. The bike comes with everything you need; upgrades are about refining the ride to your specific demands, not fixing shortcomings.

Where the Merida eSPRESSO 775 EQ excels

This bike is outstanding at urban commuting and practical transport. The combination of powerful motor, long-range battery, and low-maintenance hub gearing makes it a dependable daily workhorse, whether you're navigating stop-start traffic, hauling shopping on the rear rack, or tackling a hilly route to work. The integrated accessories mean you're ready to ride in all conditions from day one, and the 150 kg system weight capacity gives you serious carrying headroom. If your riding revolves around getting places efficiently, comfortably, and without fuss, the eSPRESSO 775 EQ is hard to fault.

It also handles leisure rides and light touring well. The 750 Wh battery extends your range beyond typical commuter distances, and the comfortable geometry and wide tyres make longer outings pleasant rather than punishing. You can venture onto towpaths, gravel byways, and rougher lanes without worrying about the bike's capability - the suspension fork and generous tyre clearance offer enough compliance and grip for mixed surfaces. It's not a gravel racer or a mountain bike, but it's more versatile than a pure road machine.

Where it's not ideal: fast group rides, technical off-road trails, or situations where weight and rolling resistance matter. The 28.1 kg weight and chunky tyres mean you'll work harder if you're trying to keep pace with unassisted riders on smooth roads, and the Nexus hub's five-speed range, while practical, doesn't offer the fine-tuning of a derailleur system. The upright position and stable handling prioritise comfort over speed, so if you're chasing personal bests or tackling aggressive singletrack, you'll want a different tool. This is a bike that rewards consistency and practicality, not outright performance.

Merida eSPRESSO 775 EQ FAQs

What is the range of the Merida eSPRESSO 775 EQ?
Range depends on terrain, rider weight, assist level, and conditions, but the 750 Wh battery typically delivers 60 to 120 km on a single charge. Eco mode stretches range furthest; Turbo mode drains it faster but flattens hills effortlessly. If you're commuting 20 km each way, you'll comfortably manage several days between charges.

How heavy is the Merida eSPRESSO 775 EQ?
The bike weighs approximately 28.1 kg, which includes the motor, battery, and all integrated accessories. That's competitive for a fully equipped trekking e-bike with a 750 Wh battery. It's not a bike you'll want to carry upstairs daily, but it's manageable for occasional lifting.

Is the Merida eSPRESSO 775 EQ good for commuting?
Yes, it's designed specifically for urban commuting. The powerful motor, long-range battery, low-maintenance hub gearing, and integrated lights, rack, and fenders make it a practical, dependable choice for daily transport. The ability to shift while stationary is particularly useful in stop-start traffic.

What motor does the Merida eSPRESSO 775 EQ use?
It uses Shimano's EP6 motor, which delivers 85 Nm of torque and smooth, responsive assistance up to the UK legal limit of 25 km/h. It's a proven mid-drive unit that balances power, efficiency, and reliability, and it's widely supported for servicing.

Can I fit wider tyres on the Merida eSPRESSO 775 EQ?
The frame clears up to 700x50c with fenders fitted, and the fork can accommodate up to 700x52c. You could fit slightly wider tyres if you remove the fenders, but the stock 50c Continental Contact Cruisers already offer plenty of comfort and grip for mixed surfaces.

How do I maintain the Shimano Nexus hub on the Merida eSPRESSO 775 EQ?
The Nexus hub is largely maintenance-free - no derailleur adjustments, no exposed cables to corrode. Check the oil level annually (Shimano specifies a small amount of hub oil), keep the external shifter cable clean and lubricated, and ensure the wheel is properly tensioned. It's one of the lowest-maintenance drivetrains available.

What is the maximum weight capacity of the Merida eSPRESSO 775 EQ?
The system weight capacity is 150 kg, which includes the rider, luggage, and any accessories. That's generous enough for most riders to carry shopping, work gear, or touring kit without worrying about overloading the frame or components.

Does the Merida eSPRESSO 775 EQ come with lights and a rack?
Yes, it comes fully equipped with integrated front and rear lights, a rear rack, fenders, a lock mount, and a kickstand. You don't need to buy or fit any additional accessories to start commuting - it's ready to ride straight away.
