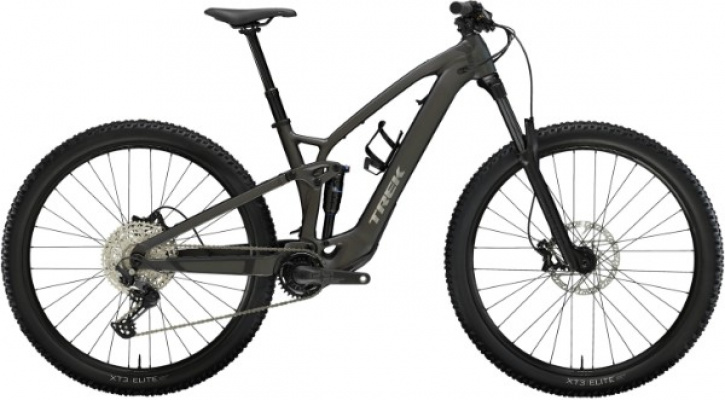

Trek Fuel EXe 5

Compare Trek Fuel EXe 5 UK prices and conditions

The Trek Fuel EXe 5 is the aluminium route into Trek's light-assist trail-bike idea: enough motor help to make another climb feel inviting, without the hefty, forceful character of a full-power e-MTB. Its original UK RRP was £4,500. It no longer appears in Trek's current UK Fuel EXe catalogue, so offers are likely to span older new stock, ex-display, nearly-new and used bikes. Separate those conditions when weighing up an offer, and make sure the displayed frame size and component list match this Deore build.

For the right rider, that can make the Fuel EXe 5 a cracking way back into longer trail days. It suits intermediate riders and confident beginners with suitable instruction who want to keep contributing through the pedals, stay with fitter mates on repeat climbs, or return after a break in fitness. It is not aimed at maximum-torque uplift laps, nor is it a practical loaded commuter: there are no rack, mudguard or kickstand mounts.

Which Trek Fuel EXe 5 version is the latest?

The latest UK Fuel EXe 5 build is the official 2024 first-generation alloy platform. Some retailers describe the same bike as a 2025 model, but that label does not mean a new frame generation or a different component package. The bike remains the one straightforward Fuel EXe 5 configuration, with Shimano Deore mechanical 12-speed shifting, a RockShox Recon Silver RL fork and an X-Fusion Pro 2 rear shock.

Power comes from the TQ-HPR50 mid-drive, rated at 50 Nm, with 250 W maximum continuous rated power and 300 W peak. It is intended to add measured support as you pedal rather than flatten every climb with brute force. UK assistance stops at 15.5 mph, so on fast linking paths, road sections or a flat battery, you are pedalling a 20.98 kg size M bike under your own steam. That published weight includes tubeless sealant and no inner tubes, and production weight can vary.

The 360 Wh battery is removable, which is handy when the bike lives in a shed but charging is more convenient indoors. Removal needs tools rather than a quick-release key. Trek's broad 2-5-hour estimate is best used to plan a ride, not promise one: assist level, climbing, mud, temperature, rider mass and tyre choice can all move the result about. The optional 160 Wh TQ Range Extender gives more capacity for longer days, but it is not included and takes the bottle-cage position.

Fuel EXe alloy frame, sizing and trail character

Under the paint is an Alpha Platinum Aluminium frame with an alloy rocker link, ABP rear suspension and Trek's Mino Link. Every size gets 150 mm of fork travel and 140 mm at the rear, along with 29-inch wheels. The bike ships in the Low Mino Link position, where its 64.8-degree head angle and 76.8-degree effective seat angle point towards a calm front end on descents and a centred position when you are seated and grinding up a steep fire road.

That adds up to a proper trail-bike stance rather than a nervous cross-country feel. The 29-inch wheels, slack front end and four-piston brakes with 203 mm rotors give it sound descending basics for technical singletrack and trail-centre riding. The modestly powered motor keeps the experience rider-led, too. It should feel more like a familiar trail bike with a helpful tailwind than a machine that takes over the ride.

Suspension travel is generous enough to soften roots, braking bumps and rocky sections, but the Recon and X-Fusion dampers are the cost-conscious parts of an otherwise capable chassis. They are functional equipment, not a flaw in themselves, and careful air-pressure, sag and rebound setup will make a real difference. Faster, heavier and more aggressive riders are the ones most likely to outgrow their simpler damping on repeated rough descents. The frame can take a 160 mm fork and supports several higher-grade shock options, so there is a credible improvement path without replacing the bike.

Fit changes more than the letter on the frame. Size S has a 100 mm TranzX dropper, M gets 150 mm, while L and XL receive 170 mm. Reach also grows from 428 mm on S to 508 mm on XL, helping the bike retain a proportionate feel through the range. The size guide below has the manufacturer height and inseam bands, including the small disagreement around the top end of M sizing.

UK maintenance, battery care and useful upgrades

A mechanical Deore 1x12 drivetrain is a sensible choice for muddy UK riding. Its 10-51T cassette gives a wide climbing gear, and there is no separate derailleur battery to remember. Regularly clean and lubricate the chain, then pay particular attention around the charging area, battery cover and suspension seals after wet rides. ABP is designed to keep the rear suspension active while braking, but its pivot hardware still benefits from periodic inspection and bearing care.

For storage lasting three months or more, leave the battery above 30% rather than fully depleted. TQ software updates and advanced diagnostics need an authorised workshop. The HPR60 motor retrofit is technically supported, but it is not a simple home swap: it requires dealer tools and removal of cooling fins, while Fuel EXe firmware still limits peak mechanical output to 300 W after the conversion. Treat it as a specialist workshop job, not an easy way to turn the bike into a full-power model.

Mino Link High offers a steeper setup and 7 mm more bottom-bracket height, while optional angle-adjust headset cups provide a larger geometry change. For extra range, budget for the extender's power cable, cable guide, retention strap and compatible side-load cage as well as the 160 Wh battery itself. Powered lights can also be added with extra TQ electronics and dealer activation, though rechargeable standalone lights are the simpler option for most riders.
