Scott Voltage eRIDE 900 Tuned

About the Scott Voltage eRIDE 900 Tuned

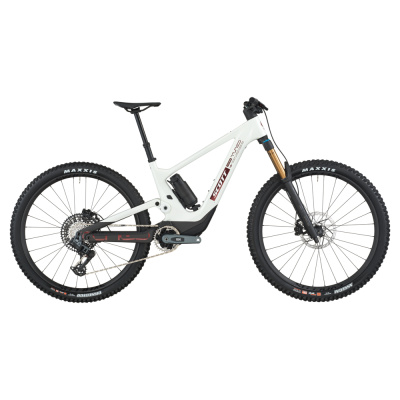

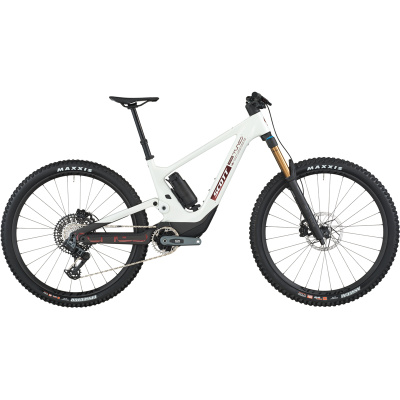

Scott's taken everything they've learned about hiding things inside frames and applied it to their most sophisticated trail eMTB yet. The Voltage eRIDE 900 Tuned tucks its rear shock completely inside the seat tube, creating a silhouette that's part stealth fighter, part mountain bike. But this isn't just aesthetic trickery - that hidden shock drops the centre of gravity and transforms how the bike moves beneath you.

The TQ HPR50 motor whispers rather than shouts, delivering 50Nm of torque that feels like your legs just got stronger rather than a robot taking over. Combined with Scott's Virtual 4 Link suspension and a geometry that splits the difference between playful and planted, you get a bike that climbs like it's half the weight and descends like it knows every root personally.

This is light eMTB territory where you still need to pedal properly, but the reward is handling that'll make you forget there's a motor onboard until you need it most.

Scott Voltage eRIDE 900 Tuned geometry

The numbers translate to a bike that sits you upright enough for all-day comfort but forward enough to weight the front wheel when things get steep. That 77-degree seat angle keeps your pedalling position efficient whether you're grinding up fire roads or picking through technical climbs, while the 64-degree head angle (adjustable via headset cups) provides enough stability for confident descending without feeling sluggish in tight corners.

Reach grows sensibly across the size range without getting extreme - even the XL keeps things manageable at 513mm. The consistent 455mm chainstays across all sizes mean the bike's character stays true whether you're on the small or large end of the spectrum. Stack height climbs appropriately with frame size, so taller riders don't end up hunched over the bars.

The result is a posture that encourages you to move around the bike rather than just sit and spin. You'll find yourself naturally shifting weight through technical sections, using the bike's balanced feel to flow rather than fight the terrain.

Component choices & upgrades

Scott's specced this bike like they expect you to ride it hard from day one. The Fox 36 Factory fork with Grip2 damper gives you proper adjustment range for everything from smooth flow trails to chunk-fest descents, while the hidden Fox Float X shock delivers 155mm of supple, supportive travel. SRAM's GX Eagle AXS Transmission handles shifting duties with the reliability of wireless tech that's powered by the main battery - no more dead shifter batteries mid-ride.

The Syncros carbon wheels with 30mm internal width suit the 2.6-inch Maxxis rubber perfectly, creating a contact patch that grips without feeling sluggish. SRAM Code Silver brakes provide four-piston stopping power that matches the bike's trail ambitions, while the integrated Syncros cockpit keeps cables tidy and positions sorted.

If your riding demands more, consider upgrading to a coil shock for ultimate sensitivity on rough trails, or swap to more aggressive rubber if your local terrain is particularly loose or steep. The stock build handles most trail scenarios brilliantly, so upgrades should be driven by specific needs rather than perceived shortcomings.

Where the Scott Voltage eRIDE 900 Tuned excels

This bike owns the middle ground between XC efficiency and enduro capability. It's outstanding on flowing singletrack where you can use the motor's subtle boost to maintain momentum through technical sections, then rely on the bike's natural handling to carve corners and pump features. Long trail rides with varied terrain play to its strengths - the efficient climbing position and supportive motor assistance eat up elevation, while the capable suspension and balanced geometry handle whatever the descent throws back.

It also shines on rides where you want to feel like you're still mountain biking rather than just along for the electric ride. The TQ motor's natural delivery means you're still working, just with a tailwind that never stops blowing.

Where it's less ideal is on rides demanding maximum power assistance - steep, technical climbs that would have full-power eMTBs walking up might leave you working harder than expected. The sophisticated integration also means maintenance requires more patience and potentially more specialist knowledge than simpler designs.

Scott Voltage eRIDE 900 Tuned FAQs

What is the weight of the Scott Voltage eRIDE 900 Tuned? The complete bike weighs 18.6kg with tubes, making it notably light for a full-suspension eMTB. This weight contributes significantly to its nimble handling characteristics and natural ride feel.

What motor does the Scott Voltage eRIDE 900 Tuned use? It uses the TQ HPR50 motor system, which delivers 50Nm of torque and 300W peak power. This motor is known for its quiet operation and natural power delivery that feels like an extension of your own pedalling effort.

How much travel does the Scott Voltage eRIDE 900 Tuned have? The bike features 160mm of front travel via the Fox 36 Factory fork and 155mm of rear travel from the integrated Fox Float X shock. The suspension offers multiple modes including climb, ramp control, and descend settings.

Is the Scott Voltage eRIDE 900 Tuned a full-power or light e-bike? It's classified as a light eMTB, with the TQ motor providing assistance that requires more rider input compared to full-power systems. This approach creates a more natural, engaging ride experience while maintaining better handling characteristics.

What is the battery capacity of the Scott Voltage eRIDE 900 Tuned? The internal battery provides 360Wh of capacity, with the option to add a 160Wh range extender for longer rides. The system is designed to provide sufficient power for typical trail rides while keeping weight down.

Can I fit a water bottle on the Scott Voltage eRIDE 900 Tuned? Yes, the frame accommodates both a water bottle and the optional range extender simultaneously. Scott's designed the frame with practical trail riding needs in mind, ensuring you don't have to choose between hydration and extended range.
