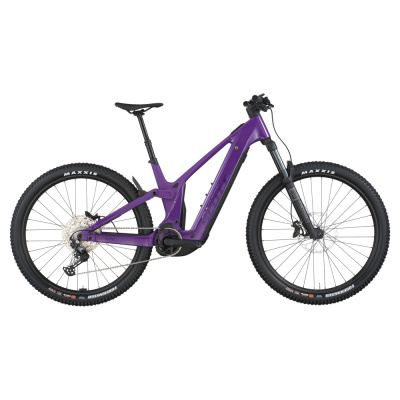

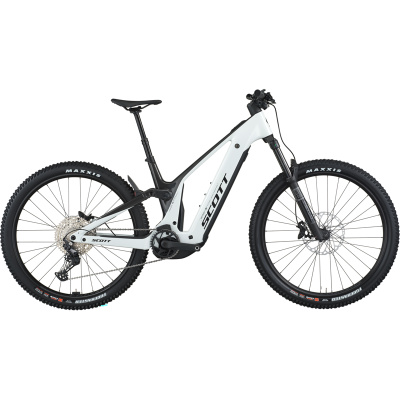

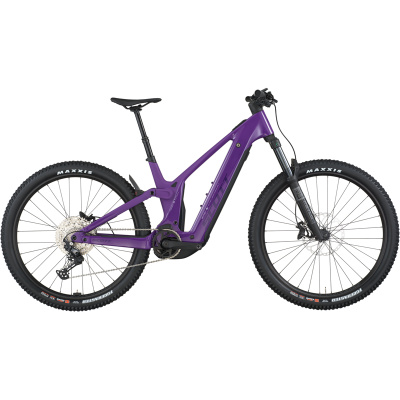

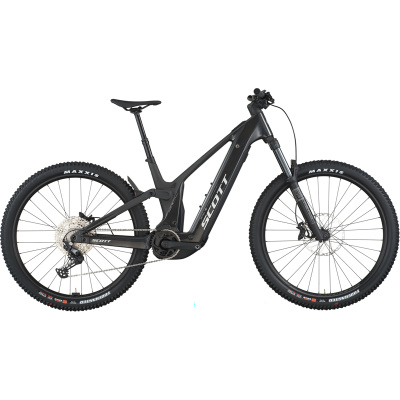

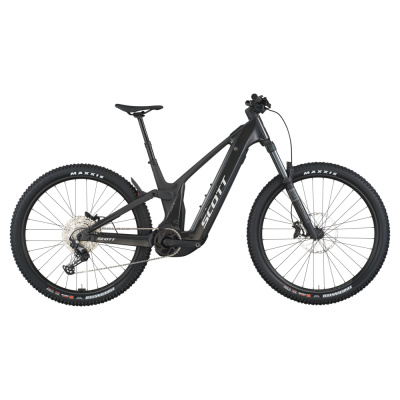

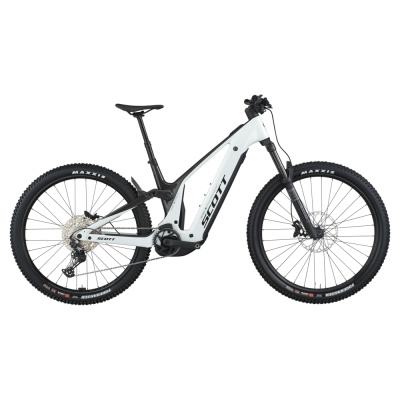

Scott Patron 920
The Scott Patron 920 is a full-power, 150mm-travel trail e-MTB with a Bosch Performance Line CX motor and removable 800Wh battery, built for riders who want serious assisted climbing and confident, adjustable descending.
- Bosch Performance Line CX motor (up to 100Nm): Strong, dependable assistance for tackling steep or sustained climbs without exhausting yourself before the descent
- 800Wh removable PowerTube battery: Enough capacity for longer days out, and easy to take indoors to charge if you don't have power near the bike
- 150mm travel front and rear: A genuinely capable trail chassis that can handle rough, technical descents, not just fire roads
- TracLoc 2 bar-mounted suspension remote: Switch between Descend, Traction Control and lockout without taking a hand off the grip
- Carbon main frame with alloy rear triangle: A lighter, more refined frame than the alloy Patron 930, at a lower price than the SRAM AXS-equipped Patron 910
- Shimano MT520 four-piston brakes with 220mm/203mm rotors: Strong, controlled stopping power for loaded, fast descents
Scott Patron 920 Deals
Prices and availability can change quickly. Delivery charges are not always included in listed prices.
Final price, stock status and delivery terms are set by retailer. We may receive a commission on purchases made.
Bikesy's Verdict
The Scott Patron 920 suits a trail rider who wants a full-power e-MTB capable of long, assisted climbs and genuinely confident descents, not a lighter-assist bike dressed as a trail machine. Its Bosch Performance Line CX motor and 800Wh removable battery give real climbing reserve, while 150mm of travel and a bar-mounted TracLoc remote let you adjust the suspension to match the terrain without stopping. Sitting between the alloy Patron 930 and the SRAM AXS-equipped Patron 910, it offers a sensible middle ground of carbon frame construction and useful equipment for its price. The main thing to weigh up is weight: at around 24.8kg, this is a bike built to be ridden with assistance, not carried far without it.
Pros
- Bosch Performance Line CX motor and a large 800Wh removable battery for serious assisted climbing
- 150mm-travel chassis with bar-controlled TracLoc suspension for confident, adjustable descending
- Carbon main frame and TracLoc-equipped suspension undercut the pricier Patron 910 while improving on several components fitted to the alloy Patron 930
- Fast 4A charger and an easily removable battery make charging at home straightforward
- Four-piston Shimano MT520 brakes with large 220mm/203mm rotors for controlled stopping on loaded descents
Cons
- At a stated 24.8kg, it's a heavy bike to lift onto a rack or pedal unassisted over distance
- No official range or riding-time figure is published for this build, so assisted distance is something to learn through use rather than plan against a stated number
- The fitted tyres and rotors are already at the platform's published maximum sizes, limiting how far you can size up either later
The Scott Patron 920 is aimed at a rider who wants a proper trail bike with genuine electric assistance, not a gentler commuter-style e-bike wearing knobbly tyres. Scott specifies it for all-mountain and trail use, with 150mm of travel at each end and a chassis built around a carbon main frame and alloy rear triangle. What sets it apart within Scott's own range is the size of its battery and the way its suspension can be adjusted without taking a hand off the bar, both of which matter more the longer and rougher your rides get.
A full-power motor built for long assisted climbs
The 920 uses a Bosch Performance Line CX motor, paired with a removable 800Wh PowerTube battery. Scott states up to 100Nm from the motor, which is a maximum figure rather than something you'll feel constantly on the trail, and assistance cuts out at 25km/h in line with UK e-bike rules. What the large battery buys you is confidence on longer routes or repeated climbs in a day; Scott hasn't published a distance or riding-time figure for this specific build, so it's worth treating any range as something you build a feel for through use rather than a fixed number to plan tightly around. The battery comes out easily for charging indoors, useful if you don't have power near where the bike lives, and the fitted 4A charger will top it up faster than the 2A charger supplied with the cheaper Patron 930. If you regularly do big days and want more than 800Wh, the frame is PowerMore-ready, meaning a range-extender battery is a compatible accessory rather than something included in the price.
Suspension control from the bar
Scott's TracLoc 2 remote lets you switch the X-Fusion NUDE 5 RLX rear shock between a full 150mm Descend setting, a firmer 100mm Traction Control mode and a lockout, without letting go of the grip. Paired with a RockShox Psylo Silver RC Air fork offering the same 150mm up front, it's a setup built for riders who want the suspension fully open on descents and firmed up again for the climb back to where the motor does its best work. The head angle is also adjustable by ±0.6°, though Scott's manual is specific that this needs the correct tool rather than a standard headset wrench, so it's a job for someone comfortable following that procedure rather than an everyday trailside tweak.
Where the 920 sits between the 930 and the 910
Scott sells three current Patron builds, and the 920 is the middle one. Against the Patron 930, official UK list prices of £4,699 for the 930 and £5,599 for the 920 don't tell you which is the better live purchase, but they do show what the extra money buys on paper: the 920 swaps the 930's alloy frame for a carbon main frame, moves from a simpler X-Fusion O2 PRO RL shock to the TracLoc-controlled NUDE 5 RLX, upgrades brakes from Shimano MT420 to MT520, and adds the Intuvia 100 display and the faster 4A charger. Step up to the Patron 910 at £6,899 and you get the same carbon-main-frame layout and 800Wh battery, but with a FOX 36 Rhythm fork, FOX Float shock and SRAM's wireless S1000 AXS Transmission in place of the 920's cabled Shimano Deore drivetrain. None of these are live selling prices, but they're a useful guide to what separates the builds if you're comparing offers rather than just badges.
Sizing and the Patron ST distinction
The 920 comes in four sizes, S to XL, with Scott's own geometry showing reach and standover both growing steadily through the range. Dropper post travel is matched to frame size, so taller riders get proportionally more drop rather than everyone sharing the same post. Height guidance you'll see against this bike on some UK retailer listings comes from a broader Scott trail and e-MTB sizing guide rather than a model-specific fit chart from Scott itself, so it's worth treating it as a starting point and checking the reach and standover figures against your own bike if you're near a boundary between two sizes. It's also worth knowing that Scott makes a separate Patron ST model with different geometry and equipment; that's a distinct, more descent-focused bike rather than an alternative frame option within the 920 range, so don't assume ST geometry applies here.
Weight and what keeps the guarantee valid
Scott's manufacturer guarantee requires the first buyer to register the bike within ten days of purchase, and keeping the five-year term on the frame and rear end means having it serviced at least annually by an authorised dealer; without that servicing the term drops to three years, and components sit outside the guarantee altogether, though your statutory rights aren't affected. At a stated 24.8kg, the Patron 920 carries the weight you'd expect from a full-power e-MTB with an 800Wh battery, which is worth bearing in mind if you'll often lift it onto a rack or need to pedal it any distance without assistance. That weight is really the trade-off for what the motor, battery and 150mm-travel chassis let you do together: climb further and descend harder than a lighter, less assisted bike would comfortably manage.
Key Features & Benefits
- Intuvia 100 display and 4A charger: Clear ride data at a glance and notably faster charging than the 930's 2A charger
- PowerMore-ready frame: Option to add a range-extender battery later for bigger days, without it being part of the standard price
- Pre-installed front-light wiring alongside the fitted rear light: Adding a compatible front light later is straightforward thanks to the wiring already in place
Geometry
Geometry, standard Patron frame (non-ST), current 150mm/800Wh platform
| Size | Reach (mm) | Stack (mm) | Effective top tube (mm) | Head angle (°) | Seat angle (°) | Chainstay (mm) | Wheelbase (mm) | Standover (mm) | Other measurements |
|---|---|---|---|---|---|---|---|---|---|
| S | 439.4 | 643 | 579.3 | 65.8 | 77.4 | 453.5 | 1212.8 | 719 | Seat tube 405mm; head tube 120mm; bottom bracket height 340.8mm |
| M | 459.3 | 647.4 | 605.5 | 65.8 | 77.2 | 453.5 | 1234.9 | 719 | Seat tube 435mm; head tube 125mm; bottom bracket height 340.9mm |
| L | 484.7 | 656.3 | 626.6 | 65.8 | 77.2 | 453.5 | 1264.7 | 729 | Seat tube 470mm; head tube 135mm; bottom bracket height 341.1mm |
| XL | 514.2 | 665.1 | 657 | 65.8 | 77.2 | 453.5 | 1298.4 | 732 | Seat tube 500mm; head tube 145mm; bottom bracket height 341.2mm |
Alternatives to Consider
Scott Patron 930
The 930 shares the same 800Wh Bosch Performance Line CX platform and 150mm travel, but uses an alloy frame rather than the 920's carbon main frame, a simpler X-Fusion O2 PRO RL shock without the TracLoc remote, Shimano MT420 brakes, a 2A charger and no Intuvia 100 display. It suits a buyer who wants the same core motor and travel for less outlay and doesn't need the 920's extra suspension control or display.
Scott Patron 910
The 910 shares the 920's carbon-main-frame layout, 800Wh battery and 150mm travel, but specifies a FOX 36 Rhythm fork, FOX Float shock, wireless SRAM S1000 AXS Transmission and a Kiox 300 display in place of the 920's RockShox fork, X-Fusion shock, cabled Shimano Deore drivetrain and Intuvia 100. It suits a buyer prioritising wireless shifting and FOX suspension over the 920's TracLoc-controlled setup.
Reviews
E-MOUNTAINBIKE Magazine's test team, riding a Patron ST 900 Tuned on the same 150mm/800Wh Patron platform, found the downward-removing 800Wh battery easy to access and its cover securely retained. That's a platform-level observation about battery access rather than a test of the Patron 920's own suspension, brakes or ride, since the tested bike was a different build.
Full Specification
800Wh carbon-main-frame build (current UK Patron 920)
| Component | Specification |
|---|---|
| Frame | Carbon main frame, alloy rear triangle; integrated four-link suspension; adjustable head angle; 150mm front and rear travel; all-mountain/trail use |
| Motor | Bosch Performance Line CX (BDU384Y), Smart System; assistance to 25km/h; Scott states up to 100Nm maximum |
| Battery, controls and charger | Removable Bosch PowerTube 800Wh; System Controller, Mini Remote and Intuvia 100 display; 4A charger |
| Fork | RockShox Psylo Silver RC Air, 150mm travel, compression and rebound adjustment |
| Rear shock and remote | X-Fusion NUDE 5 RLX Trunnion; TracLoc 2 bar remote with Descend (150mm), 100mm Traction Control and lockout settings; dropper remote integrated |
| Drivetrain | Shimano Deore RD-M6100 SGS rear derailleur, SL-M6100-IR shifter, 12-speed; Shimano CS-M6100 10-51T cassette; published 36T chainring |
| Brakes | Shimano MT520 four-piston hydraulic discs; Shimano SM-RT64 Centre Lock rotors, 220mm front and 203mm rear |
| Wheels and tyres | 29-inch wheels; tubeless-ready Syncros MD30 rims; Maxxis Forekaster 29 x 2.6-inch EXO 3C MaxxTerra tubeless-ready tyres, front and rear |
| Lighting and dropper | Rear-fender-integrated Syncros light; front-light cable pre-installed (no front light fitted); Syncros Duncan Dropper Post 2.5, travel varies by size |
| Weight and load limit | Approximately 24.8kg; maximum system weight 130kg including bike, rider, equipment and luggage |
| UK RRP | £5,599.00 |
Scott's official UK specification lists a 36T chainring, though one matching UK offer describes 34T; check the actual fitted ring if precise gearing matters to your purchase.
Size-specific equipment (S-XL, standard Patron frame)
| Size | Dropper post travel | Handlebar rise | Maximum seatpost insertion |
|---|---|---|---|
| S | 125mm | 15mm | 205mm |
| M | 150mm | 15mm | 232mm |
| L | 170mm | 25mm | 267mm |
| XL | 200mm | 25mm | 298mm |
Upgrade and compatibility notes
| Area | Detail |
|---|---|
| Additional battery capacity | PowerMore-ready; the range extender is a separate accessory with its own holder and cable, not included in the standard build |
| Head angle adjustment | Adjustable by ±0.6°; Scott's manual specifies a dedicated tool rather than a standard headset wrench |
| Tyres and rotors | Maximum published tyre width 2.6 inches and maximum rotor diameters 220mm front/203mm rear are already fitted as standard; coil shocks are not compatible with this platform |
| Lighting and accessories | Front-light wiring is pre-installed but no front light is fitted; the Bosch ConnectModule accessory is not compatible with this platform |
