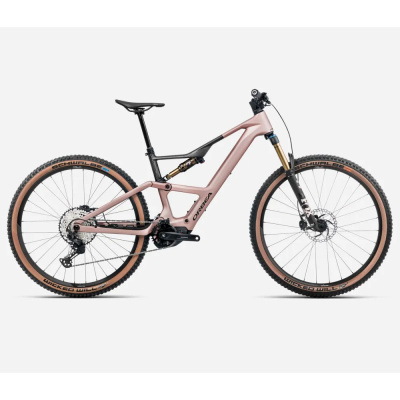

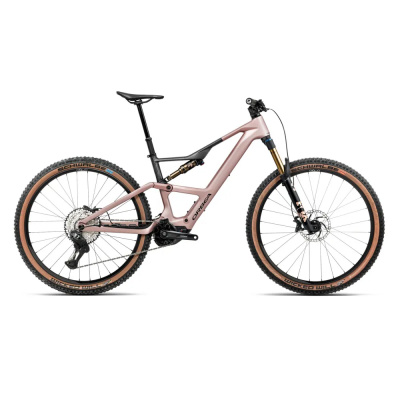

Orbea Rise SL M10

The Rise SL M10 is Orbea's carbon-framed answer to the question of how much assistance a trail bike really needs. It keeps 140mm of rear-wheel travel and 29-inch wheels wrapped around a genuinely light-feeling motor system, and it comes with a battery choice that lets you weigh range against weight rather than accepting a fixed setup. For a rider who wants a full-suspension e-bike that behaves more like an unassisted trail bike with help built in, rather than a heavier all-day tourer, this is the pitch worth understanding properly.

Two levels of assistance, one control system

At the centre of the bike is Shimano's EP801 RS Gen2 MC motor, run through Orbea's own RS Control system. Orbea states 60 Nm in the standard RS mode, rising to 85 Nm when you switch into RS+. The same RS Control unit also operates the dropper post, gear shifting and display, so the electronics that would normally be spread across separate remotes and cables are pulled into one system drawing from the main battery. For a rider used to juggling a dropper lever, a shifter and a separate display, that consolidation is a practical simplification rather than a performance claim.

Choosing between 420Wh and 630Wh

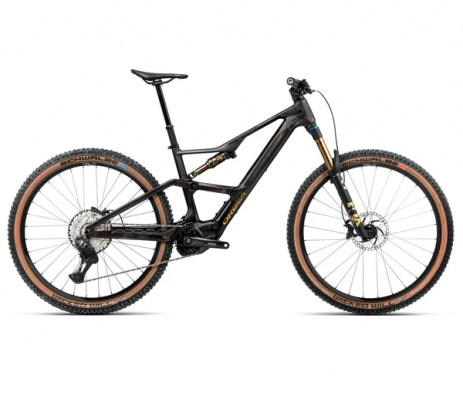

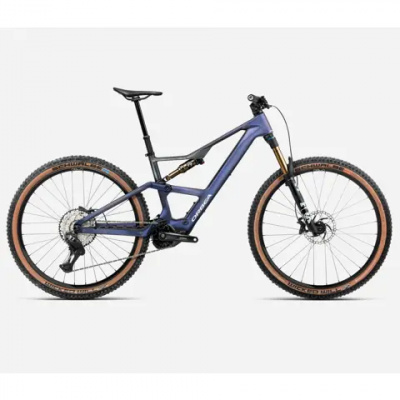

Orbea sells the Rise SL M10 with a choice of batteries: a 420 Wh pack in the standard published configuration, or a larger 630 Wh pack as a selectable option. There's also an optional 210 Wh range extender, the second-generation RS unit, which isn't fitted as standard on either build but can be added if you regularly ride further than a single battery comfortably covers. None of this comes with a fixed mileage promise attached; Orbea doesn't publish a set number of miles for either battery, so the sensible way to compare capacity is by Wh figures and how you actually ride, not by an assumed range. A full specification table and UK list price for the 630 Wh build weren't as clearly published as for the 420 Wh version, so it's worth confirming exactly what's included before treating the two as simple like-for-like alternatives.

Same name, two different equipment specs

One thing worth knowing before comparing listings: the Rise SL M10 name and its OMR 2025 frame code have stayed in place while the fitted equipment around them has changed. An earlier UK specification pairs the frame with a Fox 34 Factory fork, a mechanical XT rear derailleur and XT brakes. The newer configuration Orbea currently shows swaps in a Fox 36 Factory GRIP X fork, electronic XT M8250/M8260 shifting and Deore M6120 brakes with 180mm Galfer rotors, alongside OQUO MC32TEAM wheels and Schwalbe Wicked Will tyres. These aren't trivial differences: fork travel and stiffness, shifting type and brake power all affect how the bike copes with rougher, faster trail riding. Because the frame code alone doesn't distinguish them, matching the actual listed components, not just the model year, is the reliable way to know which bike you'd be buying.

Sizing and cockpit differences

Frame sizes run S to XL, and Orbea scales the cockpit hardware accordingly, with a shorter stem and less dropper travel on the S than on M and L, and a further step up again on the XL. What Orbea's UK size guide doesn't currently offer is a published height or inseam range for any of those frame sizes, so the size names alone aren't enough to choose confidently. If you're between sizes, that's a detail worth resolving against your own measurements rather than assuming the naming follows a standard pattern.

Where the Rise SL sits against the Rise LT

Orbea builds the Rise SL alongside a longer-travel Rise LT, and the two are aimed at different riding. The SL's 140mm of rear travel and trail-focused build suit flowing singletrack and all-day rides where a lighter-feeling bike pays off, rather than sustained, rough descents. A rider who spends most of their time on steeper, more technical descents may find the LT's extra travel a better match; the SL earns its keep on the kind of varied trail riding where efficient climbing and playful handling matter as much as outright descending capability, which is exactly the ground this bike is built to cover.
