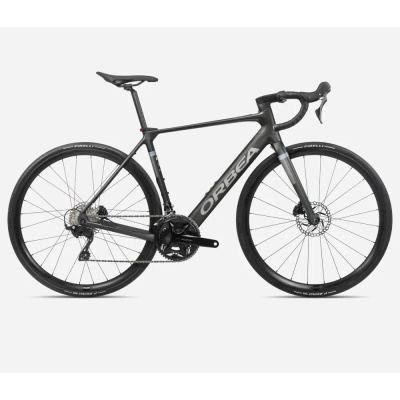

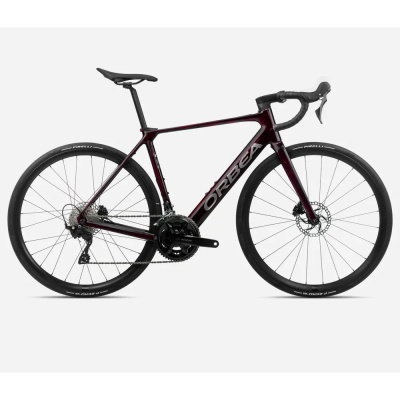

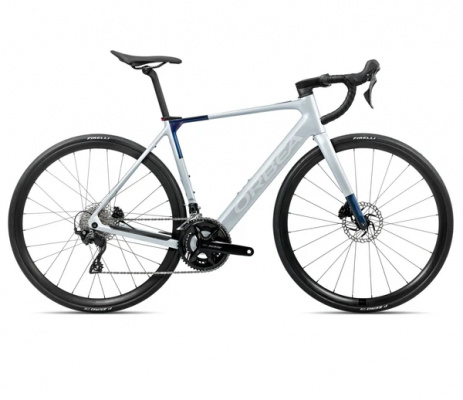

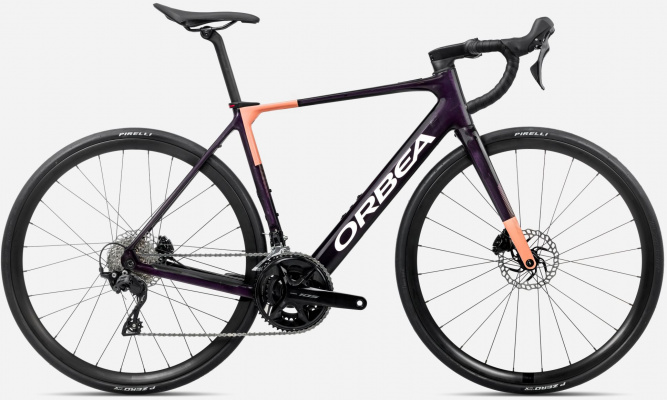

Orbea Gain M30

The Gain M30 is Orbea's case for an e-road bike that still feels like a road bike: a carbon frame, drop bars, mechanical Shimano 105 gearing and a motor system tucked into the rear hub rather than bolted to the bottom bracket. It suits a rider who wants climbs and longer days in the saddle to hurt a little less, without swapping their road bike for something that rides like a hybrid. The appeal here isn't raw power, it's how unobtrusively the assistance sits alongside a bike that still asks you to pedal properly.

How the assistance works day to day

Power comes from a Mahle X20 motor built into the rear hub, fed by an integrated 353Wh battery hidden in the down tube. Orbea quotes 50Nm for this Gain platform, which is modest by general e-bike standards but fits a bike designed to help rather than replace your effort. You choose from three assistance levels via a control unit on the top tube, with a small Pulsar One display giving you a battery and mode readout as you ride. Orbea's own riding-time guidance for the Gain platform is roughly 7 hours at the lowest assistance level, 6 hours in the middle setting and 4 hours at the highest; treat these as a rough shape of what's possible rather than a distance you can bank on, since effort, terrain and speed all move the numbers around. If you regularly want more than that in one go, Orbea lists a separate 185Wh range extender as an accessory, though it isn't part of the standard bike and adds to the overall cost. The bike also runs integrated 60-lumen front and 12-lumen rear lights that Orbea says switch on automatically via a light sensor, handy if your rides span dawn, dusk or unlit lanes without you having to remember separate lights.

The drivetrain, brakes and why the build matters

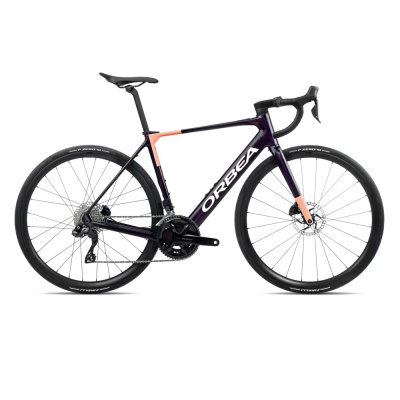

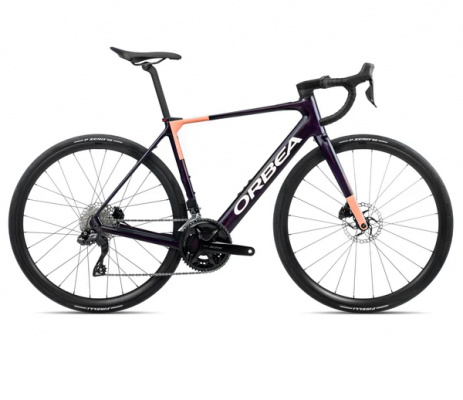

The standard UK build pairs a mechanical Shimano 105 chainset (34x50t) with an 11-34t 12-speed cassette, giving enough range for loaded climbing days without the added cost of an electronic groupset. Shimano's hydraulic disc brakes handle stopping duties, matched to thru-axles at both ends for the stiffness and consistency you want from discs on a fast bike. Orbea's own documentation also lists alternative chainring, cassette and tyre options for this platform, so it's worth being clear that those are configurable extras rather than what ships as standard; don't assume every M30 you see advertised carries this exact gearing. It's also worth keeping the M30 name straight from its stablemate: the Gain M30i is a separately specified model, not simply an M30 with different parts fitted, so treat any comparison between the two as a comparison between different bikes rather than build options on the same one. And if you come across an older Gain M30 while shopping, be aware the previous generation used a smaller 248Wh battery and 11-speed 105 gearing; none of that carries over to this X20-based version, so match any offer to the current 353Wh, 12-speed specification rather than assuming a shared name means a shared bike.

Sizing and fit across six frame sizes

Orbea builds the Gain M30 in six sizes, XS through XXL, and the stem and handlebar width both change size by size rather than being fitted identically across the range, from a 70mm stem and 380mm bar on the XS up to a 110mm stem and 420mm bar on the XXL. That's a meaningful detail if you've ridden a one-size-fits-all e-bike before: it means the smallest and largest frames are set up to handle differently rather than being scaled versions of the same cockpit. Independent UK retailer height guidance broadly lines up with the six official frame sizes, so it's a reasonable way to cross-check fit if you don't have exact figures to hand, though it's worth treating it as a starting point rather than a guarantee, since Orbea's own published geometry doesn't come with height bands attached.

Where the road ends

The standard tyres are 700x30c, and the frame and fork are rated to a maximum of 700x35c, which gives you some room to size up for rougher lanes, patchy tarmac or a gravel path home without turning this into a dedicated gravel bike. It's a road bike first, built to reward a rider who wants to keep moving efficiently rather than one looking to take on proper off-road terrain.

Ownership over time

Orbea asks owners to register the bike within 30 days to unlock its registration benefits, and its warranty explicitly excludes the gradual loss of battery capacity that comes with normal use over time, treating that as expected wear rather than a fault; components from other brands carry their own separate warranty terms. None of that is unusual for an e-bike, but it's worth building into how you think about the battery's long-term health, since a hidden, integrated pack like this one isn't something you'll casually swap out yourself years down the line.
