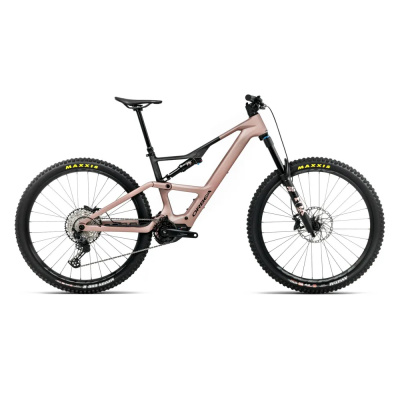

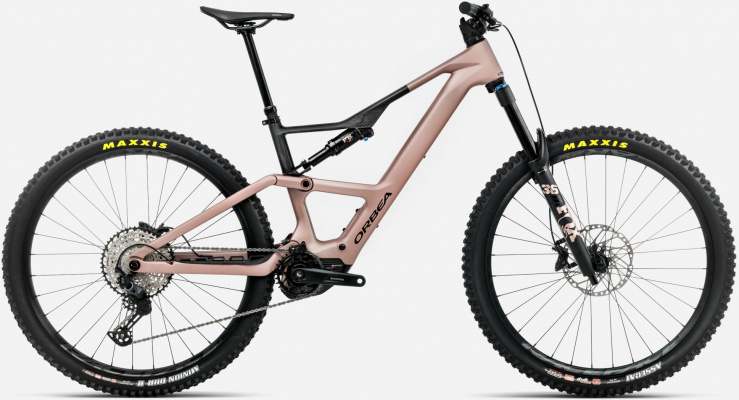

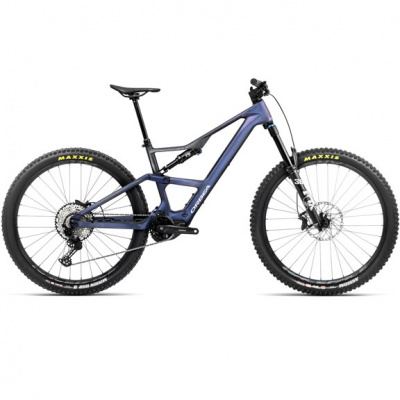

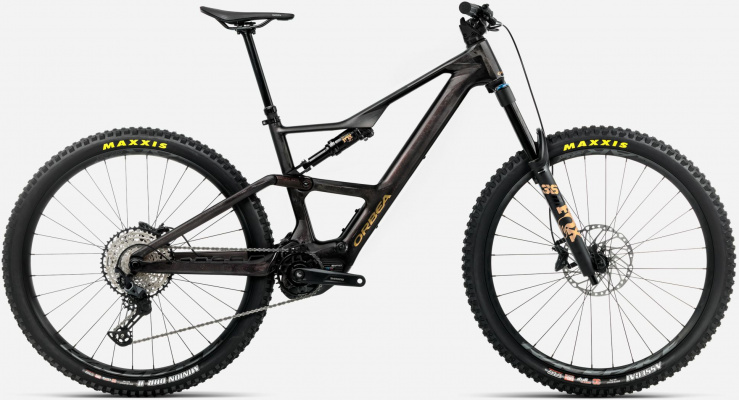

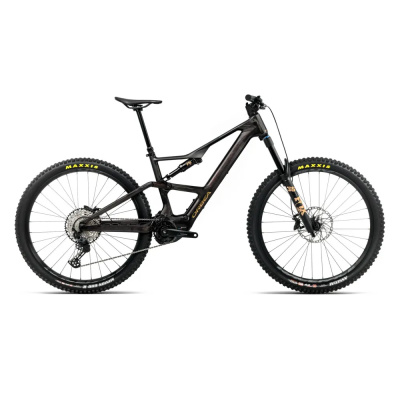

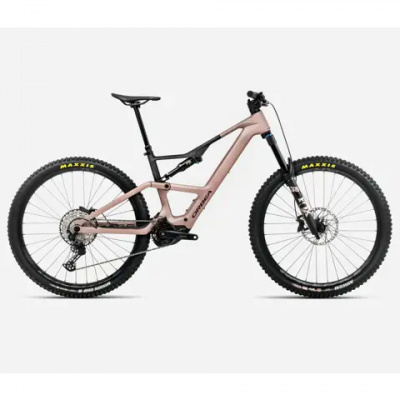

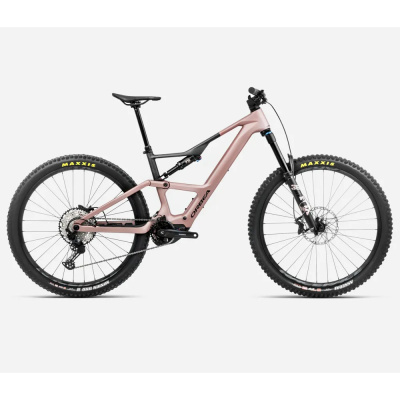

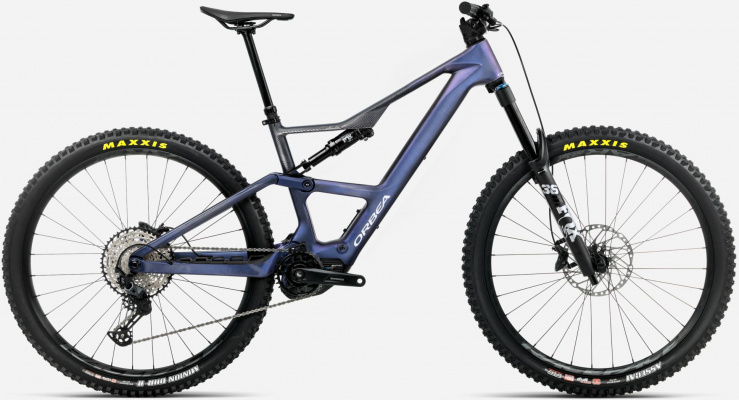

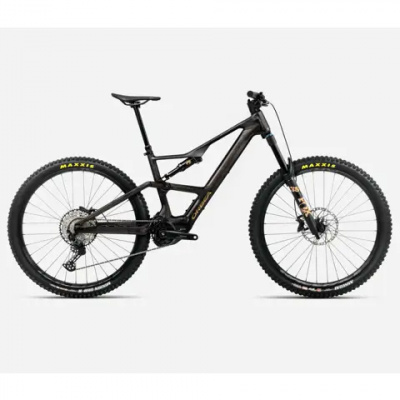

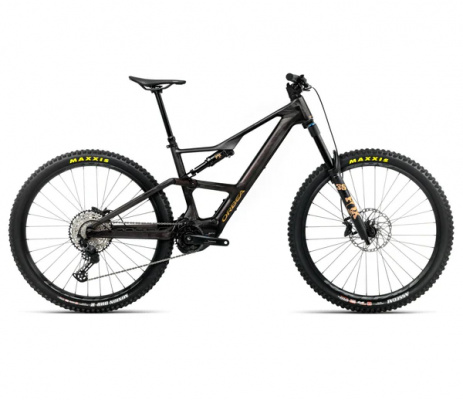

Orbea Rise LT M20

The Rise LT M20 is Orbea's answer for a trail rider who loves what a lightweight e-MTB does for the climbs but doesn't want to trade away confidence on the way back down. Where the shorter-travel Rise SL keeps things svelte and cross-country minded, the LT build carries a full carbon frame with 160mm of travel up front and 150mm out back, plus geometry you can adjust to suit the terrain. It's built for someone who rides technical trails properly, wants real assistance getting to the top, and cares just as much about how the bike handles once gravity takes over.

Assisted power, tuned for the terrain

Every Rise LT M20 uses Shimano's EP801 RS Gen2 MC motor, paired with an EN600-L handlebar remote so you can switch assistance levels without taking a hand off the bar for long. Orbea delivers the bike in what it calls RS+, which unlocks up to 85Nm of torque for pulling you up steep, technical sections where momentum alone won't do it. There's also a more efficient RS setting, rated at 60Nm, which Orbea positions as the option for longer days when stretching the battery matters more than outright punch on every climb. Having both built into the same motor means you're not locked into one style of assistance for the whole ride.

Picking a battery: 420Wh or 630Wh

The Rise LT M20 comes in two battery configurations, and the choice is really about how you ride rather than which is the better bike. A 420Wh battery keeps things lighter and suits shorter, punchier loops, while stepping up to 630Wh gives you meaningfully more stored energy for bigger days out, at the cost of some added weight. Whichever you choose, Orbea also lists an optional 210Wh range extender as a separate accessory rather than something fitted as standard, worth knowing if you think you'll want extra range beyond either capacity down the line, since it's an add-on rather than a reason to favour one build over the other. One point worth flagging for anyone who needs to bring a battery indoors to charge or store away from the bike: an independent account of this generation describes the main battery as built into the frame rather than removable, so your charging routine will need to work with the bike in place.

The kit that does the descending

Three choices stand out in how the M20 is put together for descending terrain. Up front there's a FOX 36 Performance fork running the full 160mm, paired with a FOX Float Performance shock that offers a simple two-position adjustment rather than a fully tunable setup. Braking comes from Shimano's four-piston Deore M6120 callipers on sizeable 203mm front and 180mm rear rotors, giving plenty of stopping power for an e-MTB carrying motor and battery weight at trail speeds. The tyre pairing, a Maxxis Assegai up front with a tougher Minion DHR II out back on tubeless-ready Race Face AR wheels, is a sensible trail-focused combination rather than a lightweight, fast-rolling setup. Gearing runs through Shimano's SLX 12-speed shifter and derailleur with a wide 10-51t cassette, so there's climbing range built in before the motor even helps out. If you're weighing up a 630Wh offer against another retailer's listing, it's worth checking the exact components fitted, since Orbea's own configuration documentation didn't allow every part of that build to be confirmed component by component.

Geometry, sizing and the flip chip

All four frame sizes, S through XL, share Orbea's Attitude Adjust flip chip, which moves the frame between a high and low geometry position. Drop into low and the head angle slackens slightly with a lower bottom bracket, useful for steadying the bike on faster, rougher descents; switch to high and you gain a touch more ground clearance and a marginally steeper head angle, which can help on technical, ledgy climbs. The dropper post and stem length are matched to frame size too: the S gets a 170mm dropper with a 35mm stem, M and L both run a 200mm dropper with a 40mm stem, and the XL steps up to a 230mm dropper with a 50mm stem, so the cockpit and standover should scale sensibly as you move through the range. One caveat worth knowing: Orbea's accessible sizing guide for this bike doesn't publish readable rider-height bands, so it's worth working from the geometry figures themselves, alongside your own fit preferences, rather than assuming a size purely from height.

About 2025 and 2026 listings

You'll see this bike listed under both 2025 and 2026 by different retailers. Orbea's own technical documentation covers the Rise LT carbon platform across that 2025 to 2026 span, built around the same 2025 OMR frame, so a year label on its own doesn't indicate a different bike or specification. The detail that actually matters when comparing offers is the battery capacity, 420Wh or 630Wh, and the specific components fitted to that particular bike, rather than which year a retailer happens to have written on the listing.

Whichever battery and size you land on, the Rise LT's real appeal is that Orbea hasn't diluted the descending side to fit a motor and battery into a trail bike: the 160mm fork, aggressive tyre pairing and adjustable geometry all point the same way, toward a bike that's happy being pushed hard on the way down as well as helped up on the way there.
