Orbea Carpe 25

Orbea Carpe 25

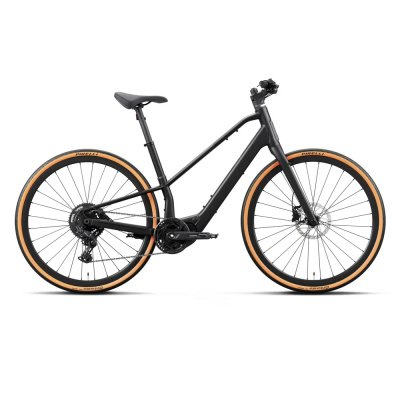

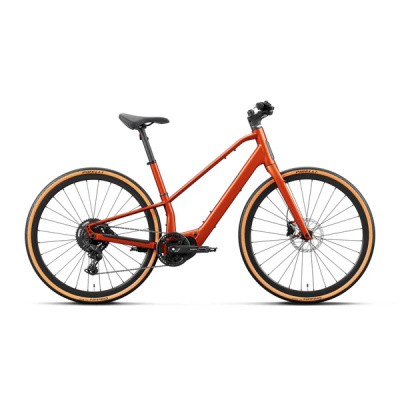

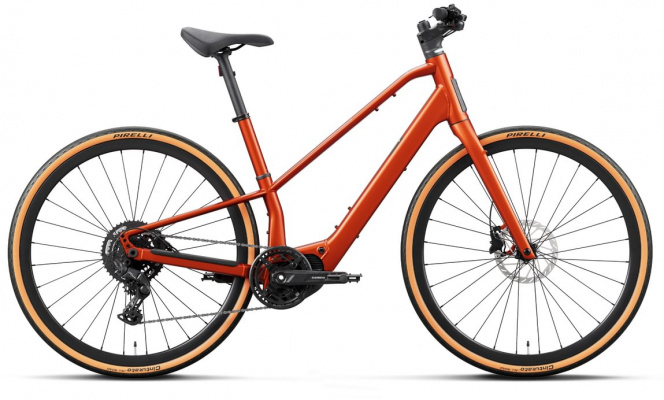

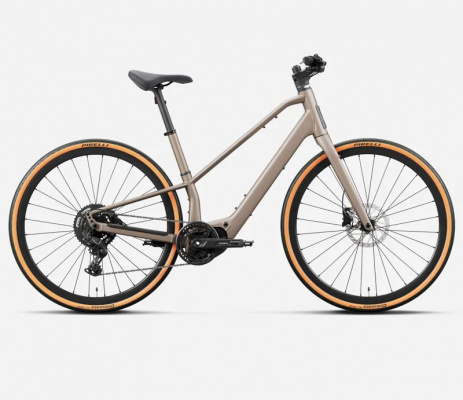

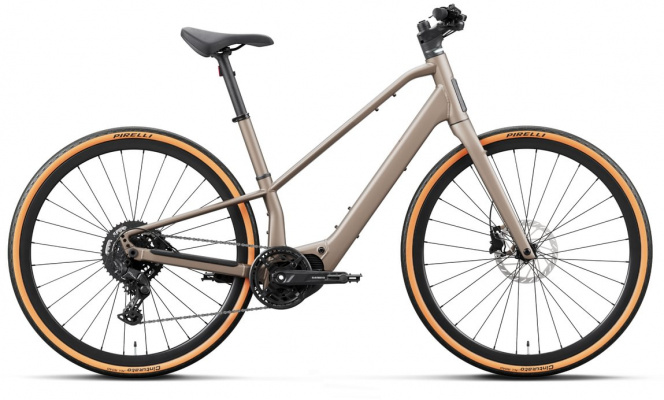

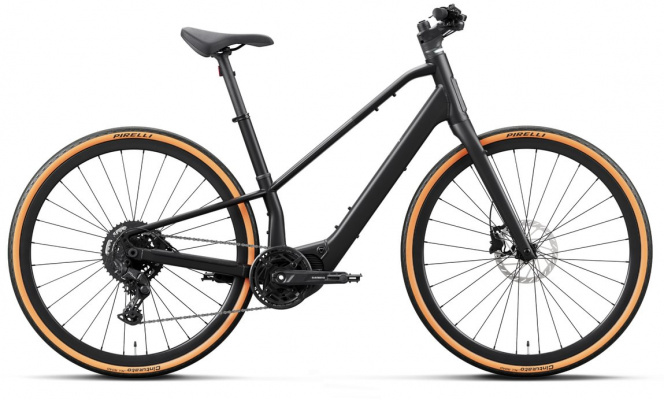

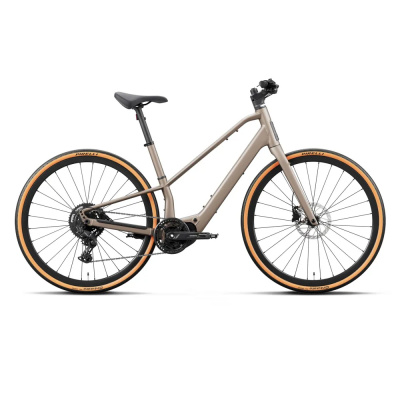

The Orbea Carpe 25 is a minimally accessorised, chain-drive electric city bike with a strong Shimano EP600 mid-drive, aimed at commuters who want punchy assistance and a comfort-tuned frame without paying for extras they may not need.

  • Shimano EP600 mid-drive, up to 85Nm torque: Brisk assistance pulling away from junctions and climbing local rises without a run-up
  • Integrated 420Wh battery with second-generation smart charger: Enough capacity for regular commuting days, topped up from a compact charger you can keep at home
  • Carbon fork paired with a flexing Twin Glide alloy frame: Takes some of the sting out of drain covers and patched tarmac on the daily ride
  • Shimano MT200 hydraulic disc brakes: Confident, consistent stopping in wet UK traffic conditions
  • Pirelli Cinturato All Road Classic 700x45c tyres: Cushioning and grip that handle towpaths and gravel access roads as well as tarmac
  • Integrated Supernova TL3 Mini rear light and front position light: Built-in visibility for being seen, ready to ride without buying separate lights

Bikesy's Verdict

The Carpe 25 suits a commuter who wants strong, torquey assistance and a comfort-oriented frame without paying for accessories they might not need. The EP600 motor's 85Nm makes stop-start city riding easier, the carbon fork and flexing alloy frame take the edge off rough tarmac, and the wide Pirelli tyres cope well with mixed surfaces. Its case weakens if your commute genuinely needs a rack, lights strong enough for unlit country lanes, or a kickstand and lock from day one, since none of those come fitted and each is an extra cost to add. For a rider happy to build their own accessory setup around a capable core bike, though, it's a strong, straightforward starting point.

Pros

  • Punchy Shimano EP600 motor with up to 85Nm torque suited to stop-start city riding
  • Carbon fork and flexing Twin Glide alloy frame aimed at everyday comfort
  • Wide-volume Pirelli 700x45c tyres that cope with mixed paved and semi-rough surfaces
  • Integrated front and rear lighting fitted as standard for being seen
  • Simple, low-maintenance 1x9 chain drivetrain that's easy to service

Cons

  • No front carrier, kickstand or frame lock fitted, so budget for extras if your commute needs them
  • The fitted front light is a position light rather than a full road-illuminating headlamp
  • Some genuinely optional accessories, like the range extender, are easy to mistake for standard equipment when comparing offers

The Orbea Carpe 25 is the simplest specified way into Orbea's electric city range, sitting below the more accessorised Carpe 20 and the belt-driven Carpe 10. That doesn't make it a stripped-down compromise: it keeps the same Shimano EP600 mid-drive and 420Wh battery you'd expect from a serious commuter e-bike, wrapped in a frame built to smooth out the daily grind of drain covers, potholes and patched tarmac. If you want strong assistance and a lighter, less accessory-heavy starting point than a fully loaded utility bike, this is the build to look at.

Assistance that suits stop-start city riding

The EP600 motor is rated by Orbea at up to 85Nm of torque, and it's tuned specifically for the kind of riding this bike is aimed at: pulling away from junctions, holding pace through traffic, and getting up the short sharp rises that show up on most urban commutes. That torque figure matters more than raw wattage for this kind of riding, because it's what determines how readily the bike helps you get moving from a standstill rather than how fast it'll carry you once you're up to speed. The integrated 420Wh battery is charged through Orbea's second-generation smart charger, small enough to live under a desk or by the front door. If your round trip regularly stretches beyond what 420Wh comfortably covers, Orbea sells a 252Wh bottle-mounted range extender as a configuration option, though it's worth checking whether any particular offer already includes it rather than assuming it does, since it isn't part of the standard build.

Frame, fork and ride comfort

Underneath the electronics is a hydroformed 6061 alloy frame using Orbea's Twin Glide design, built to flex slightly and take some of the edge off rough surfaces, paired with a rigid carbon fork rather than a heavier alloy one. It's the kind of detail that matters more on a bike you'll ride daily over the same imperfect road surfaces than on an occasional-use bike, since small vibrations add up over a commute. The 700x45c Pirelli Cinturato All Road Classic tyres reinforce that comfort-first brief, with enough volume to iron out cracked tarmac and cope with towpaths or gravel access roads without feeling out of their depth.

What's fitted, and what you'll want to add

Braking comes from Shimano's MT200 hydraulic discs, a sensible choice for a bike that'll see wet UK winters, and gear changes go through a nine-speed Shimano CUES setup with an 11-46t cassette and a chainguard over the 40-tooth chainring, so it's a simple derailleur system rather than the low-maintenance belt-and-hub arrangement used on the pricier Carpe 10. For visibility, there's a wraparound front position light and a Supernova TL3 Mini rear light built into the seatpost, both useful for being seen. Neither Orbea's specification nor this build includes a separate road-illuminating front headlamp, so if you regularly ride unlit routes after dark, that's worth adding yourself. The same goes for carrying capacity and security: there's no front carrier, kickstand or frame lock fitted as standard, though Orbea offers a 10kg-rated front basket, a folding-pedal and rotating-stem combination for tighter storage, and an ABUS frame lock, all as separate options rather than included equipment.

Sizing and buying it with confidence

Orbea builds the Carpe 25 across four frame sizes, S to XL, with geometry that stretches out gradually through the range; if you're between two sizes, the reach and stack figures in the size chart are worth comparing directly, since the height bands published by UK retailers overlap at the edges rather than giving a single correct answer. You'll also see this bike listed under slightly different year labels in UK results, sometimes as a 2027 model; Orbea's own frame designation for the current Carpe platform is 2026, but this doesn't mean the motor, gearing or geometry differ between listings, it's the same specified build described two different ways.

One thing worth doing regardless of where you buy it: Orbea asks new owners to register their bike within 30 days to activate the lifetime warranty covering manufacturing defects in the frame and rigid fork, a straightforward bit of admin that's easy to forget once the bike's arrived and you're just keen to ride it.

Key Features & Benefits

  • Optional 252Wh range extender: A way to add distance for longer routes without stepping up to a bigger-battery model
  • Lifetime frame and fork warranty via registration: Register within 30 days of purchase to secure long-term manufacturing-defect cover
  • 1x9 Shimano CUES drivetrain with 11-46t cassette and chainguard: Wide-range, simple gearing that's straightforward to maintain and keeps trousers clean

Geometry

Carpe 25 420 Wh 1x9 build, standard frame, 700c wheels

SizeReach (mm)Stack (mm)Effective top tube (mm)Head angle (°)Seat angle (°)Chainstay (mm)Wheelbase (mm)Standover (mm)Other measurements
S4005625546974.24201057651Seat tube 405 mm; head tube 139 mm; BB drop 70 mm
M41659258169.574.24201079659Seat tube 455 mm; head tube 169 mm; BB drop 70 mm
L4336226077074.24201101674Seat tube 470 mm; head tube 199 mm; BB drop 70 mm
XL45165363670.5744201125687Seat tube 520 mm; head tube 229 mm; BB drop 70 mm

Reviews

T3's Leon Poultney rode the belt-driven Carpe 10, which shares the Carpe 25's frame and carbon fork but differs in transmission, tyres and gearing. On that shared platform, he found the steering agile on urban routes and noted useful isolation from minor bumps, an observation that reasonably reflects the frame and fork the Carpe 25 also uses. It isn't a test of the Carpe 25's own chain drivetrain, tyres, cockpit or real-world range, which remain unreviewed independently.

Full Specification

Carpe 25 420 Wh 1x9 build

AreaSpecification
FrameHydroformed Alloy 6061 Carpe frame with Twin Glide flex design
ForkRigid Orbea Carpe carbon fork
MotorShimano EP600 mid-drive, up to 85Nm torque, tuned for urban starts and climbs
BatteryIntegrated Orbea 420Wh battery
ChargerOrbea second-generation 42V/2-4A smart charger
DisplayShimano EN500 (EN600 computer and switch available as an optional configuration)
Drivetrain1x9 Shimano CUES SL-U4000 shifter and U4000 GS Shadow derailleur; Sun Race 11-46t cassette; 40t chainring with chainguard; KMC eGlide chain
BrakesShimano MT200 hydraulic disc brakes
WheelsAlloy 26c, 32-hole wheels
TyresPirelli Cinturato All Road Classic 700x45c TLR (tyre is tubeless-ready; this does not confirm the complete bike is delivered set up tubeless)
LightingWraparound front position light; Supernova TL3 Mini rear light integrated into the seatpost (no separate front headlamp fitted)
Cockpit680mm riser handlebar; OC Road Performance 23 stem at +15°; same handlebar, an 80mm stem and 165mm cranks used across S-XL
Saddle and pedalsSelle Royal Vivo Ergo saddle; VP-836 pedals
UK RRP£2,699 quoted UK RRP (Orbea's accessible official UK product page does not display a base price)

Optional upgrades (not fitted as standard)

UpgradeDetail
Range extenderOrbea 252Wh bottle-mount range extender, offered as a £439 UK configuration option
Front carrierFrame-mounted front carrier and basket, rated to a maximum 10kg load
Compact storageHandlebar-rotating stem and folding pedals available as options
SecurityABUS frame lock available as an option
KickstandNot fitted as standard; kickstand compatibility does not mean one is included
