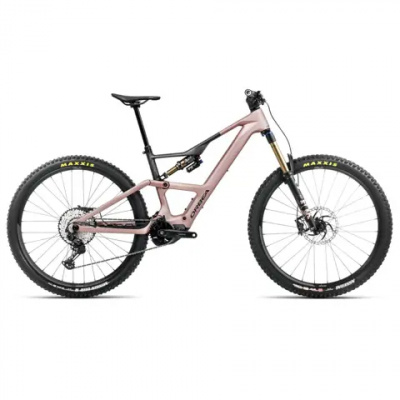

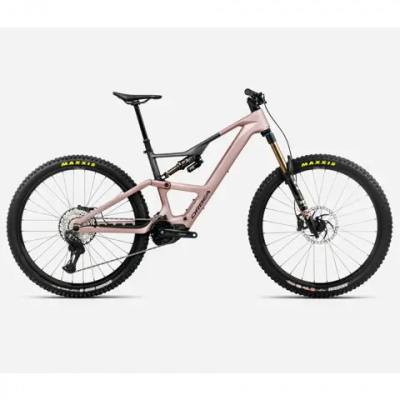

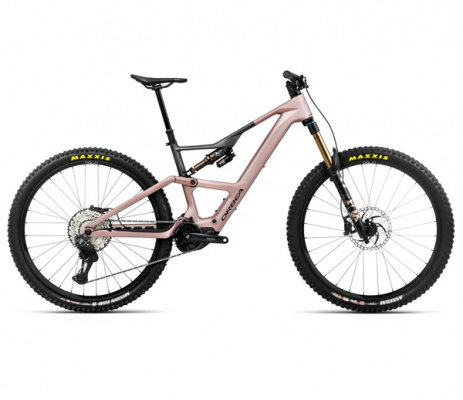

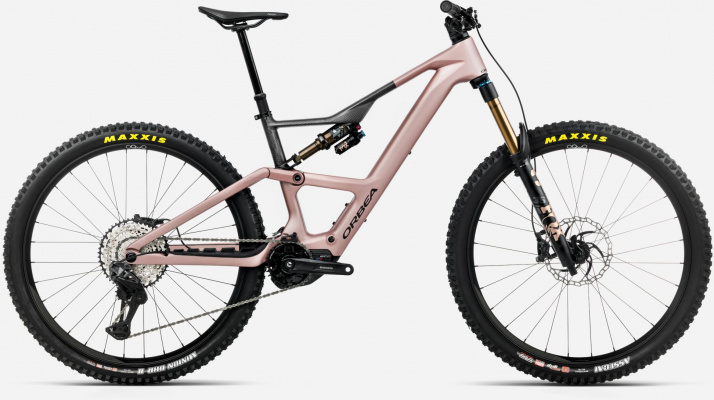

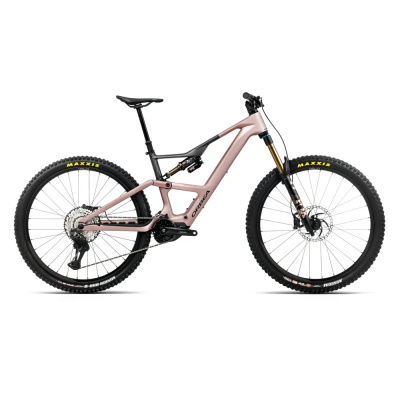

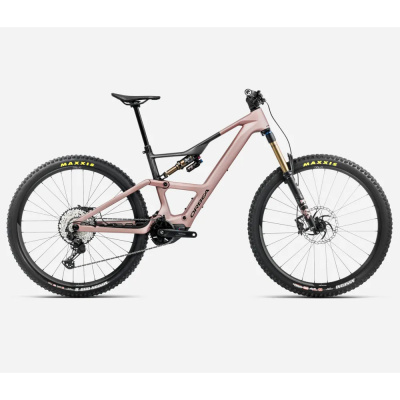

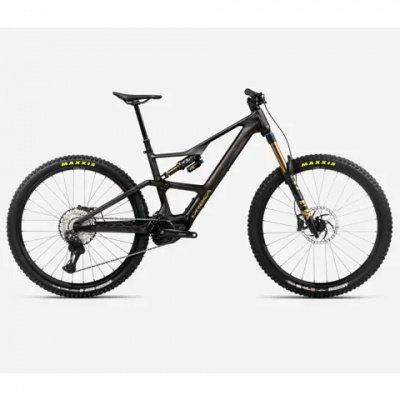

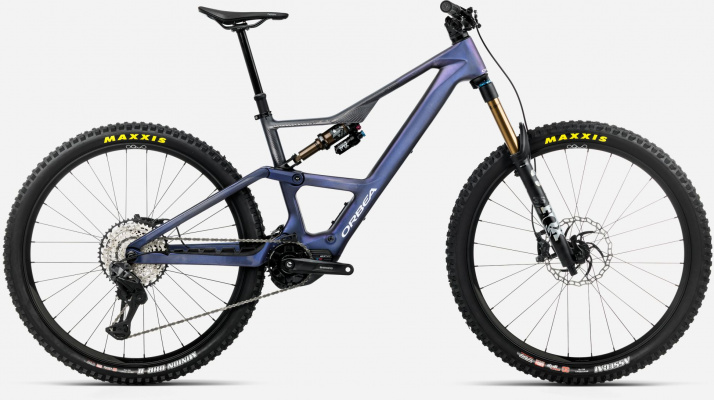

Orbea Rise LT M10

The Rise LT M10 is aimed at a rider who wants a proper trail bike first and an e-bike second: something that climbs difficult ground without drama, then lets you push hard on the way back down. It does that with a carbon long-travel frame, Fox Factory suspension at both ends, Shimano's electronic XT Di2 shifting and a motor with two distinct assistance characters. The real decision for most buyers isn't whether this bike can descend and climb well, it's which battery capacity suits how far they actually ride, and getting your size and cockpit set-up right for a bike built to be pushed.

Built for technical trail and all-mountain riding

Underneath the electronics this is a proper long-travel bike. The carbon LT frame runs 150mm of rear travel paired with a 160mm Fox 36 Factory GRIP X fork and a Fox Float X Factory shock, and the frame has a flip-chip that gives you a high and low geometry setting on every size from S to XL. That adjustability matters more than it sounds: the low setting drops the bottom bracket and slackens the head angle slightly for extra stability on steep, fast ground, while the high setting keeps the ride a touch livelier and less prone to pedal strikes on flatter, more technical trails. Either way, this is a bike built for rougher terrain than a shorter-travel trail e-bike, without tipping into full enduro-sled territory.

Climbing assistance that stays out of the way

Power comes from Shimano's EP801 RS Gen2 MC motor, and Orbea gives you two ways to use it: RS mode, which is the gentler default, and RS+, which unlocks up to 85Nm for when the climb gets serious. You switch between them and control the dropper post through Orbea's System Controller and eDropper Remote at the bar, so there's no separate display to think about. An independent group test from The Loam Wolf, riding a current-spec 630Wh Rise LT M10, found climbing strong and the power delivery controllable in both RS and RS+, which is a useful sign that the assistance is tuned to help rather than to shove you up the trail.

Choosing between the 420Wh and 630Wh builds

Orbea's configurator offers the current LT M10 with either a 420Wh or a 630Wh battery, and as far as published equipment goes, that battery is the only confirmed difference between the two: everything else on the bike is shared. Neither comes with the optional 210Wh RS Range Extender fitted, so treat that as an upgrade to budget for separately if you want extra range for bigger days, not something included in the box. On the subject of range, it's worth being precise about what test data can and can't tell you: on a demanding 13-mile, 1,300-foot loop ridden mostly in the highest assist setting, a 193lb tester used 315Wh out of a 630Wh battery. That's a single test result on a specific ride, not a promise of how far your battery will take you, and your own distance will depend heavily on terrain, assist mode and rider weight. If you're shopping older UK listings of the Rise LT M10 alongside this one, be aware some describe mechanical Shimano shifting rather than the electronic XT Di2 fitted to the current bike, and one even quotes a 140mm frame travel figure despite the LT name; those facts belong to an earlier specification and shouldn't be assumed to carry over here.

The kit that does the work

Beyond the suspension and motor, the current build is finished with Shimano XT M8250 Di2 shifting, an XT M8260 rear derailleur and a 10-51t 12-speed cassette, giving a wide enough spread for both steady climbing and technical singletrack. Braking is handled by Shimano XT M8220 callipers on Galfer Wave rotors, 203mm at the front and 180mm at the rear, a sensible sizing choice for a bike that's going to be ridden hard downhill with assistance adding weight and speed. OQUO wheels are wrapped in a Maxxis Assegai front and Minion DHR II rear, a pairing generally chosen for grip on mixed and technical terrain, and the dropper post length is scaled to frame size rather than fixed across the range.

Sizing and setup

Sizes run S to XL, and cockpit spec is matched to size rather than identical throughout: the S gets a 35mm stem, 165mm cranks and a 180mm dropper, M and L share a 40mm stem with a 210mm dropper, and the XL steps up to a 50mm stem and a 240mm dropper, with an 800mm bar fitted across the board. Orbea's published UK sizing material for this bike names the four sizes but doesn't publish numerical rider-height or inseam bands to go with them, so rather than relying on a generic height chart, it's worth working from the geometry figures for reach, wheelbase and seat tube length at your chosen high or low setting, alongside your own body proportions, to settle on the right size.

One ownership detail worth knowing before you buy: Orbea's lifetime frame warranty for manufacturing defects, covering chainstays, seatstays and the linkage on this full-suspension frame, is only available to the original purchaser if you register within 30 days of buying. It doesn't cover the normal, expected loss of battery capacity over time, but for a carbon frame like this it's a meaningful piece of cover worth setting a reminder for.
