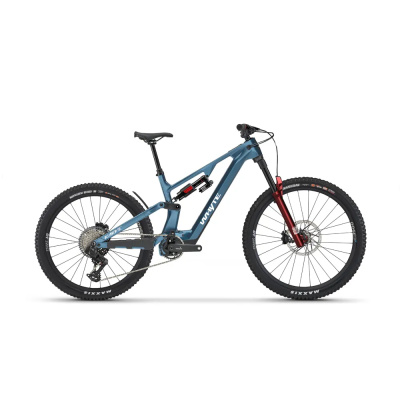

Whyte Karve Evo RSX

The Whyte Karve Evo RSX is a full-power electric mountain bike built around one idea: getting you back to the top for another run. It is the £7,299 flagship build on Whyte's 180mm Karve EVO platform, pairing the Avinox M2S motor with RockShox Ultimate suspension and SRAM's electronic T-Type drivetrain. If your weekends revolve around bike-park laps, steep enduro stages or self-shuttled descents, this is a bike that turns the climb into part of the plan rather than the price of admission.

That gravity focus is worth understanding before you get attached. This is not the shorter-travel Karve, and it is not a general-purpose trail bike. The 24.4kg claimed weight for a size Large, the aggressive tyres and the long, slack chassis are aimed at steep and rough riding, so riders who mainly want mellow woodland loops or towpath miles will find a shorter-travel e-MTB easier to live with. For confident intermediate to expert riders who want repeated descents without relying entirely on an uplift, the RSX makes a strong case.

Compare current Whyte Karve Evo RSX prices and retailer offers

Whyte lists the current UK Karve Evo RSX at £7,299, which places it at the top of the Karve EVO range above the cheaper Karve Evo RS. Live retailer prices are compared on this page, so you can weigh up current offers in one place. The build you are buying is the premium one: Ultimate-level RockShox suspension, Maven Silver brakes, DT Swiss Hybrid wheels and SRAM S1000 AXS Eagle electronic shifting. Nothing here needs an immediate upgrade.

What is the current Whyte Karve Evo RSX?

Whyte's current UK catalogue does not pin an official model year to the Karve Evo RSX, so treat it simply as the current build. It is the launch generation of the Karve EVO Avinox M2S platform, and the equipment package is deliberately gravity-ready. A RockShox ZEB Ultimate fork with 180mm travel and a Linear XL spring sits up front, matched to a custom-tuned RockShox Vivid Ultimate RC2T shock out back. SRAM Maven Silver four-piston brakes run a 220mm front rotor and a 200mm rear rotor, while the electronic SRAM S1000 AXS Eagle 1x12 transmission shifts across a 10-52T cassette with a GX T-Type chain.

DT Swiss Hybrid HF1900 wheels are wrapped in a Maxxis Assegai EXO+ MaxxGrip front tyre and a Minion DHR II Double Down MaxxTerra rear - a combination chosen for wet, rough grip rather than rolling speed. The Avinox M2S drive unit sits at the heart of the bike with 150Nm maximum torque, 1300W peak power and 250W nominal power, feeding an 800Wh fixed internal battery. An OLED display, a wireless controller and app connectivity handle the rider-facing side.

Karve EVO frame, geometry and likely ride character

The frame pairs a carbon-fibre mainframe with a 6061 alloy swingarm and Whyte's Quad-Link 4 suspension layout. The Shape.It Link V2 lets you switch between high and low settings: the low setting drops the head angle from 63.3 to 62.7 degrees and lowers the bottom bracket by 8mm. That is a meaningful change in stance rather than a token adjustment. Geometry also scales with size rather than sharing one rear end across the range. The Medium runs a 445mm rear centre, the Large 455mm and the Extra Large 465mm, which keeps taller riders balanced over a proportionally longer wheelbase.

The bike is supplied with MX wheels - a 29in front and 27.5in rear - with clearance for tyres up to 2.5in. Whyte supports a full 29in conversion on the current Medium, Large and Extra Large bikes, but it is not a standalone wheel swap. You need the correct 58-62mm Shape.It Link and a category 4-rated 29in rear wheel with an e-bike-rated hub. Budget for both parts if maximum rollover and high-speed stability matter more to you than the stock rear wheel's agility and clearance.

Expect a planted, stability-led ride rather than a light trail-bike feel. The slack head angle, long wheelbases and size-specific rear centres point towards calm tracking at speed, while the MX rear wheel keeps some agility and clearance on steep ground. Whyte describes the suspension as moderately progressive, with a high starting ratio for small-bump sensitivity and useful mid-stroke support. The low-anti-squat tuning keeps the rear wheel working for grip rather than locking the bike into a firm pedalling platform - the motor largely offsets that on climbs, and the high link position improves pedal clearance.

Climbing is where the Avinox system earns its keep. The steep seat angles and high geometry setting suit technical return climbs and self-shuttling, but this is not a light cross-country bike when assistance is low or unavailable. Descending is the central reason to buy it: the 180mm travel, ZEB Ultimate fork, Vivid Ultimate shock, aggressive tyres and large front rotor are all directed at steep, fast and rough ground.

UK durability, charging, maintenance and ownership

Wet UK riding has clearly shaped the platform. Whyte fits weather-sealed routing, protected pivot bearings, an integrated rear fender and a protected charge-port position, and the RSX leaves the factory with RideWrap frame protection. That film covers much of the frame against uplift trailers, rock strikes and transport scuffs, though the fork is not included. The MaxxGrip front and Double Down rear tyre package should inspire confidence in wet, rough conditions, with the trade-off of faster rolling and potentially quicker compound wear.

The 800Wh battery is fixed inside the frame for normal use and comes out only through a workshop procedure involving the motor. That means you charge beside the bike rather than carrying the battery indoors, so flat dwellers and anyone storing the bike away from a socket should think about where charging will happen. The supplied 12A charger is the compensation: Whyte states roughly 80% charge in 1 hour 45 minutes and 100% in 2 hours 23 minutes from empty. A lunch-stop recharge is a realistic way to unlock a second session where mains power is available. The Avinox external 600Wh range extender is not approved for this frame, so do not assume the bottle mount can be repurposed. A compatible 600Wh fixed battery can be fitted by a workshop as a capacity-for-weight trade, while the differently shaped 700Wh battery will not fit.

Whyte supports a compatible 230 x 62.5mm coil shock on the Karve EVO for riders who prefer coil-spring behaviour, with spring rate and mounting hardware to be confirmed with a dealer or suspension specialist. A triple-clamp fork is not approved. The electronic drivetrain and integrated motor system also raise the importance of dealer access and software support, so buying through a retailer with Whyte, Avinox and SRAM AXS experience is sensible. Whyte publishes lifetime frame and pivot-bearing warranties for the original owner when the bike is used as intended, and free registration within 28 days of purchase is required to activate them.
