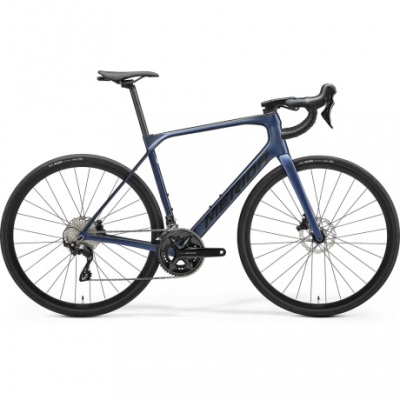

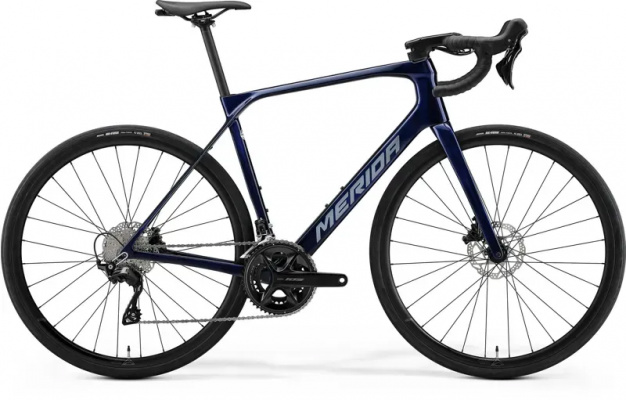

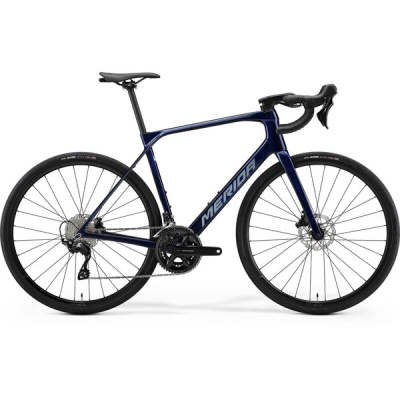

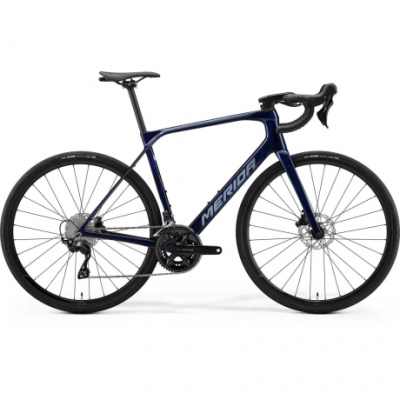

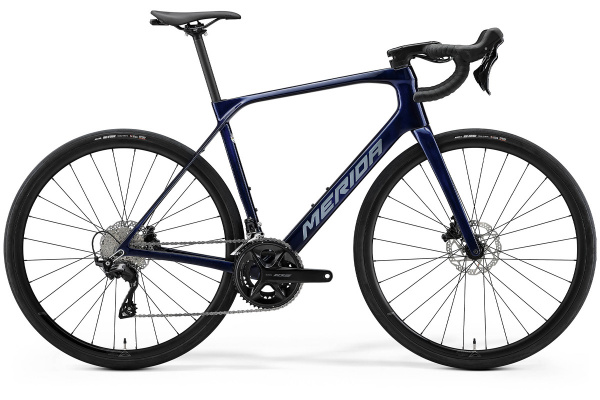

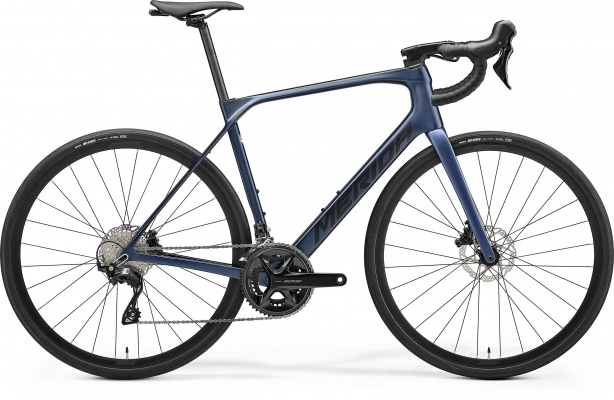

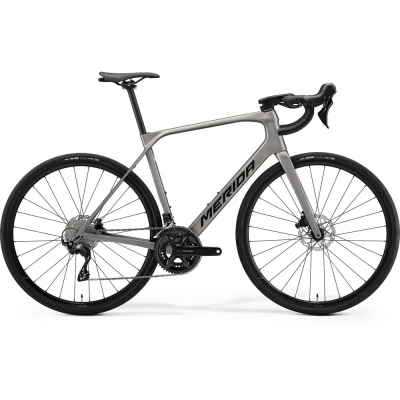

Merida SCULTURA ENDURANCE 4000

About the Merida SCULTURA ENDURANCE 4000

Merida's CF3 carbon frame sits at the heart of the Scultura Endurance 4000, a bike that's been engineered to blur the line between spirited road riding and genuine all-day comfort. The 2025 model carries forward the brand's philosophy of building endurance machines that don't sacrifice handling for plushness - you get a frame that's stiff enough to reward hard efforts yet compliant enough to take the sting out of patchy tarmac. It's a bike that invites you to explore beyond the smooth stuff, thanks to clearance for 35mm rubber and a geometry that keeps you stable when the surface turns sketchy.

Shimano's 105 12-speed groupset anchors the build, delivering crisp shifts and a 50-34T chainset paired with an 11-34T cassette - plenty of range for grinding up long drags without spinning out on the flat. Hydraulic discs with 160mm rotors bring confident stopping power, and Merida's added CNC-machined cooling fins to the calipers to keep fade at bay when you're descending for miles. The cockpit is clean, with full internal cable routing via the WIRE PORT system threading through the headset and frame, and a hidden seatpost clamp borrowed from the brand's aero bikes adds a tidy finishing touch.

At around 9.4 kg for a medium, the Scultura Endurance 4000 isn't featherweight, but it's competitive for a carbon endurance bike at this price point. The aluminium Expert SL III rims are tubeless-ready with a 23mm internal width, shod with Maxxis RE-FUSE 32mm tyres as standard. Mudguard mounts are present - though you'll need to check their placement if you're fitting full guards - and the rear seat-stay bridge can be removed to open up clearance and clean up the lines. It's a bike that's been thought through for riders who want one machine to handle club runs, sportives, and the occasional detour down a gravel byway.

Merida SCULTURA ENDURANCE 4000 geometry

The Scultura Endurance 4000's geometry leans towards comfort without tipping into touring-bike territory. A longer head tube lifts the bars relative to the saddle, easing pressure on your lower back and neck during multi-hour rides. The head angle is slacker than you'd find on a race bike, which slows the steering slightly and adds stability at speed - useful when you're threading through ruts or holding a line on loose gravel. Reach figures are moderate, so you're not stretched out into an aggressive tuck, and the stack keeps your torso more upright, reducing fatigue when you're spending all day in the saddle.

Chainstays are on the longer side, which plants the rear wheel further back and contributes to that planted, confidence-inspiring feel. The wheelbase grows accordingly, making the bike less twitchy in tight corners but more composed when the road gets rough or the pace picks up on a descent. Bottom-bracket drop is conventional, so you're not sitting unusually high or low, and the overall effect is a bike that feels neutral and predictable - it won't surprise you mid-corner, and it won't punish you for sitting up to take in the view.

Merida sizes the Scultura Endurance from XXS to XL, adjusting stem length (90mm to 110mm) and crank arm length (165mm to 172.5mm) across the range to keep the fit proportional. Bar widths step up from 380mm on the smallest frames to 420mm on the XL, so taller riders get the shoulder room they need. The result is a bike that's easy to live with for hours at a time, whether you're chasing mates on a club run or ticking off miles on a solo adventure.

Component choices & upgrades

The stock build on the Scultura Endurance 4000 is well-judged for the bike's intended role. Shimano's 105 groupset is a workhorse - reliable, easy to service, and offering 12-speed precision that's close enough to Ultegra for most riders. The 50-34T compact chainset and 11-34T cassette give you a low gear that'll haul you up steep ramps without resorting to a granny ring, and the hydraulic disc brakes are powerful and consistent. The cooling fins on the calipers are a thoughtful touch for long descents, where heat build-up can sap braking performance.

That said, the Maxxis RE-FUSE tyres are the component most often flagged for an upgrade. They're durable and roll reasonably well, but they lack the suppleness and grip of higher-end rubber. Swapping them for something like a Continental GP5000 or Schwalbe Pro One in 32mm or 35mm will transform the ride feel, adding a layer of plushness and traction that makes rough roads and gravel lanes far more enjoyable. The Expert SL III rims are tubeless-ready, so you can ditch the inner tubes, run lower pressures, and gain puncture resistance - a worthwhile upgrade if you're venturing off the beaten track regularly.

Beyond tyres, the cockpit is solid. The aluminium Expert SL bars and stem are stiff and well-shaped, though carbon alternatives would shave a few grams and add a touch more vibration damping if you're chasing marginal gains. The Expert SL carbon seatpost does a decent job of filtering road buzz, and the Comp SL saddle is comfortable enough for most riders, though saddle fit is personal - don't hesitate to swap it if it doesn't suit you. The Shimano TC500 hubs are reliable if unremarkable; upgrading to a lighter, faster-engaging wheelset would sharpen acceleration and climbing, but it's an expensive step that's only worth it if you're racing or chasing KOMs.

Where the Merida SCULTURA ENDURANCE 4000 excels

The Scultura Endurance 4000 is outstanding at long-distance road riding where comfort and versatility matter more than outright speed. It's the bike for sportives, audax events, and multi-hour club runs where you want to arrive fresh rather than wrecked. The relaxed geometry and compliant carbon frame soak up road vibration, and the wide tyre clearance lets you fit rubber that'll cushion you over chipseal, potholes, and patchy tarmac. It's equally at home on smooth A-roads and rougher B-roads, and it'll handle well-maintained gravel lanes without complaint - though it's not a dedicated gravel bike, so don't expect it to thrive on technical singletrack or deep mud.

The bike also excels at mixed-surface adventures where you're linking tarmac with gravel byways or towpaths. The stable handling inspires confidence when the surface turns loose, and the disc brakes give you control in all weathers. Mudguard mounts mean you can fit full guards for year-round riding, turning the Scultura Endurance into a practical winter trainer or commuter that'll keep you dry and comfortable when the weather turns.

Where it's less ideal is pure racing or aggressive group rides where every watt counts. The geometry prioritises comfort over aerodynamics, and the slightly longer wheelbase makes it less snappy out of tight corners compared to a race bike. If you're chasing crits or hammering chain gangs, you'll want something more aggressive. Similarly, while it'll handle light gravel, it's not built for rough off-road riding - the frame clearance and geometry are designed for all-road versatility, not gnarly trails. Stick to tarmac and well-maintained dirt, and the Scultura Endurance 4000 will reward you with a ride that's engaging, comfortable, and genuinely versatile.

Merida SCULTURA ENDURANCE 4000 FAQs

What is the maximum tyre size for the Merida Scultura Endurance 4000?
The frame clears 700x35C tyres without mudguards, or 700x32C when you've fitted full guards. That's enough width to run lower pressures for comfort and grip on rough tarmac or gravel lanes, and it opens up a wide range of rubber choices depending on your riding.

Is the Merida Scultura Endurance 4000 good for gravel roads?
It'll handle well-maintained gravel and dirt roads confidently, thanks to the stable geometry and wide tyre clearance. The bike's designed for all-road versatility rather than aggressive off-road riding, so it's best suited to smoother gravel byways and towpaths rather than technical singletrack or deep mud. Fit 35mm tyres, drop the pressure, and you'll be surprised how capable it is.

What is the weight of the Merida Scultura Endurance 4000?
A medium frame comes in at around 9.4 kg, which is competitive for a carbon endurance bike at this price point. It's not a lightweight race machine, but the weight is well-distributed, and the bike doesn't feel sluggish on climbs or slow to accelerate.

What is the difference between the Merida Scultura and Scultura Endurance?
The Scultura is Merida's race-oriented road bike, with a more aggressive geometry, tighter tyre clearances, and a focus on aerodynamics and stiffness. The Scultura Endurance prioritises comfort and versatility, with a longer head tube for a more upright position, clearance for wider tyres, and a frame that's tuned for compliance over rough roads. If you're racing, choose the Scultura; if you're riding long distances or mixed surfaces, the Endurance is the better bet.

Is the Merida Scultura Endurance 4000 suitable for long-distance riding?
Absolutely. The relaxed geometry, compliant carbon frame, and wide tyre clearance make it an excellent choice for sportives, audax events, and multi-day tours. The Shimano 105 groupset offers a wide gear range for tackling long climbs, and the hydraulic disc brakes give you confident stopping power on extended descents. Mudguard mounts add practicality for year-round riding.

What is the gear range of the Shimano 105 groupset on the Scultura Endurance 4000?
The 50-34T compact chainset paired with an 11-34T cassette gives you a low gear of 34x34, which is low enough to grind up steep ramps without standing, and a high gear of 50x11 that'll let you push on when the road flattens or tips downhill. It's a versatile range that suits everything from hilly sportives to flat club runs.

Can you fit mudguards to the Merida Scultura Endurance 4000?
Yes, the frame includes mudguard mounts, and the rear seat-stay bridge can be removed to increase clearance and simplify fitting. You'll need to check the mount placement to ensure your chosen guards fit properly, but once installed, they'll turn the bike into a practical year-round machine that'll keep you dry and comfortable in wet conditions.

What type of bottom bracket does the Merida Scultura Endurance 4000 use?
It uses a Shimano PressFit 86.5 (BB86) bottom bracket, which is a press-fit standard that's lighter and stiffer than traditional threaded designs. Some riders prefer threaded bottom brackets for ease of maintenance, but the BB86 is reliable and widely supported by component manufacturers.
