Merida SCULTURA 8000

About the Merida SCULTURA 8000

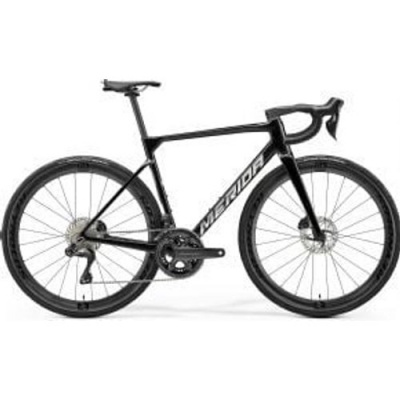

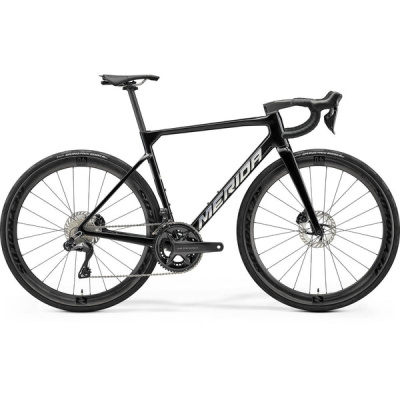

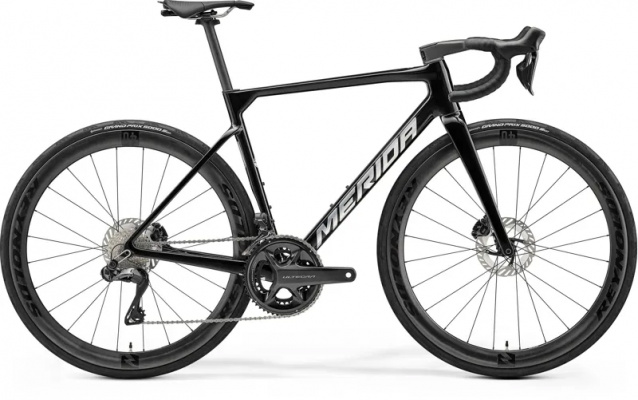

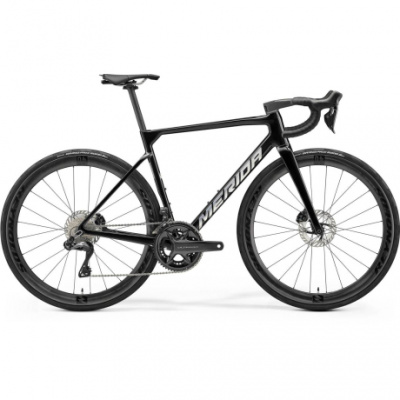

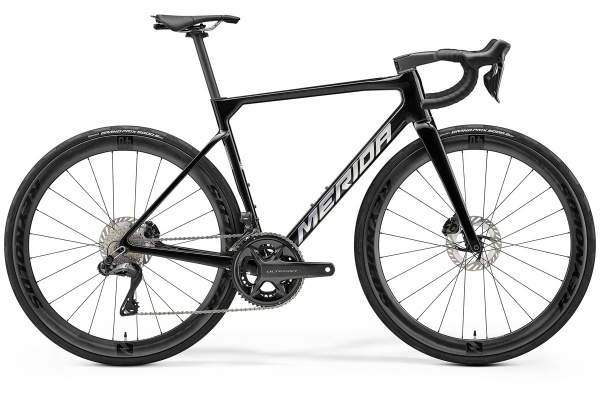

The SCULTURA 8000 sits at the sharp end of Merida's lightweight road range, delivering race-proven geometry wrapped in CF3 carbon and dressed with Shimano Ultegra Di2 12-speed. It's a bike that borrows its frame angles from the REACTO aero platform yet keeps weight low and comfort high, threading the needle between all-day endurance and crit-race aggression. You get Reynolds AR 46 DB carbon wheels, an integrated one-piece carbon cockpit, and Continental Grand Prix 5000S TR rubber in 28mm width - a package that would cost considerably more elsewhere.

What makes the SCULTURA 8000 compelling isn't just the spec sheet. It's the way Merida has tuned the ride: stiff enough to reward hard efforts yet compliant enough to keep you fresh over rough tarmac and long miles. The dropped seat stays and S-Flex carbon post soak up road chatter without turning the back end into a pogo stick, while the integrated bar-stem combo cleans up the front end and shaves a few watts. Disc brakes mean confident stopping in all weathers, and the 700×30c clearance gives you room to fit slightly chunkier rubber if your local lanes are less than pristine.

This is a bike aimed squarely at riders who want a single machine for racing, hard training rides, and weekend sportives - without the compromises that come with ultra-aggressive race geometry or the weight penalty of endurance-first frames. It's not the lightest climber you can buy, nor the slipperiest aero weapon, but it does both jobs well enough that you won't feel shortchanged on either front.

Merida SCULTURA 8000 geometry

The SCULTURA shares its geometry DNA with Merida's REACTO aero bike, which means you're looking at a relatively aggressive position with a low front end and a taut, responsive feel. Reach figures climb steadily through the size range - from 373 mm in XXS to 447 mm in XL - while stack grows in step, keeping the cockpit proportional. Head angles sit at 76 degrees for the smaller sizes, slackening fractionally to 75.5 degrees on L and XL, which translates to sharp steering without twitchiness and stable high-speed manners without sluggishness.

Chainstays measure 389 mm on the three smallest sizes, stretching to 404 mm from medium upwards. That shorter rear centre on the smaller frames quickens the handling and makes the bike feel lively under you; the longer stays on bigger sizes add stability and prevent toe overlap. The seat angle holds steady at 64 degrees across the board, putting you over the pedals in a position that favours power transfer and efficient climbing without tipping you too far forward for comfort on long rides.

What does this mean when you're riding? You'll sit low and stretched, with your weight biased towards the front wheel - ideal for attacking climbs and holding aero tuck on fast descents. The bike responds instantly to shifts in body weight, carving through corners with precision and accelerating cleanly out of tight bends. It's not as relaxed as a pure endurance frame, so if you prefer a more upright posture or have flexibility limitations, you might find yourself reaching for extra spacers or a shorter stem. But for riders comfortable in a race crouch, the geometry delivers the kind of immediacy that makes you want to push harder.

Component choices & upgrades

The stock build on the SCULTURA 8000 is already well sorted. Shimano Ultegra Di2 12-speed gives you crisp, reliable electronic shifting with programmable buttons and synchro modes if you want them; the battery life is generous, and the ergonomics are spot-on. Reynolds AR 46 DB carbon wheels bring aero depth and stiffness without excessive weight, and they're tubeless-ready, so you can ditch the inner tubes and run lower pressures for better grip and comfort. Continental Grand Prix 5000S TR tyres in 28mm are fast-rolling and grippy, with decent puncture protection - there's little reason to swap them unless you're chasing marginal gains or prefer a different ride feel.

The integrated MERIDA TEAM SL 1P one-piece carbon cockpit is where opinions split. It looks clean, saves a handful of grams, and improves aerodynamics by hiding cables inside the bar and stem. But it also locks you into fixed bar width and stem length, so if the stock dimensions don't suit your fit, replacement parts are specific and potentially pricey. If you know your preferred cockpit dimensions and they match what Merida offers, it's a smart piece of kit; if you're still dialling in your position or like to experiment, a traditional two-piece setup might serve you better.

Upgrade paths are straightforward but not essential. If you're racing regularly and want to shave weight, lighter wheels - something in the 1,300 - 1,400 g range - will sharpen acceleration and climbing. A power meter spider or crank arm adds training data without changing the ride feel. Swapping the Prologo Scratch M5 saddle is a personal call; it's a well-regarded perch, but saddle comfort is individual. The S-Flex carbon seatpost already provides compliance, so there's little to gain from aftermarket posts unless you're chasing specific setback or offset needs. Tyres are the easiest tweak: if you want more comfort or grip on rough roads, the frame clears 30mm rubber, though you'll sacrifice a touch of speed.

Where the Merida SCULTURA 8000 excels

This bike is outstanding at long, fast road rides where you're mixing sustained climbs, quick descents, and flat sections at tempo pace. It's light enough to reward you on the way up - 7.5 kg without pedals means it floats when the gradient kicks - and the stiff CF3 frame channels every watt into forward motion. The Ultegra Di2 groupset shifts cleanly under load, so you can stay on top of the gear changes when the road pitches up or down, and the Reynolds carbon wheels hold speed once you've wound them up.

It's also very good at racing and hard group rides. The sharp geometry and responsive handling let you follow attacks, dive into corners, and accelerate out of tight bends without drama. The hydraulic disc brakes give you confident stopping power in all conditions, so you can brake later and carry more speed into technical sections. The integrated cockpit and dropped seat stays add a touch of aero efficiency, which matters when you're holding threshold for long stretches or chasing back onto a fast-moving bunch.

Where it's less ideal: pure comfort-first endurance riding on truly rough roads. The geometry is aggressive enough that you'll feel it in your lower back and shoulders after several hours in the saddle, especially if you're not used to a race position. The integrated cockpit limits fit adjustability, so if you need a very specific bar width or stem length, you might struggle. And while the frame clears 30mm tyres, it's not designed for gravel or mixed-surface adventure riding - the handling is too quick and the clearances too tight for proper off-road work. If your weekends involve long stretches of unmade tracks or you prefer a more relaxed riding position, look elsewhere. But if you want a single bike that climbs like a lightweight, descends with confidence, and looks sharp doing it, the SCULTURA 8000 hits the mark.

Merida SCULTURA 8000 FAQs

What is the weight of the Merida SCULTURA 8000?
The complete bike weighs approximately 7.5 - 7.6 kg in size medium, excluding pedals. The CF3 carbon frame alone comes in around 997 g for a medium, which is competitive for this price point and keeps the overall package light enough to reward you on climbs without feeling fragile.

Is the Merida SCULTURA 8000 good for climbing?
Yes, very. The lightweight frame, responsive geometry, and Shimano Ultegra Di2 gearing - 52-36 compact crankset paired with an 11-30T cassette - give you the range and efficiency to tackle steep gradients without spinning out or grinding. The stiff bottom bracket area and short rear end mean power transfer is immediate, so you're not wasting energy flexing the frame.

What is the tyre clearance on the Merida SCULTURA 8000?
The frame and fork clear 700×30c tyres, which gives you room to fit slightly wider rubber for extra comfort or grip on rough tarmac. The stock Continental GP5000S TR tyres are 28mm, so you've got a bit of headroom if you want to experiment with different widths or tread patterns.

What is the difference between Merida SCULTURA and REACTO?
The SCULTURA is the lightweight all-rounder; the REACTO is the dedicated aero race bike. They share the same geometry, but the REACTO uses deeper tube profiles, integrated cable routing, and aero-optimised shaping to cut drag, while the SCULTURA prioritises low weight and compliance. If you're racing crits or time trials, the REACTO is faster; if you're climbing or riding mixed terrain, the SCULTURA is more versatile.

Is the Merida SCULTURA 8000 suitable for long-distance rides?
It's capable, but with caveats. The S-Flex carbon seatpost and dropped seat stays add compliance, and the frame soaks up road buzz well enough to keep you comfortable over several hours. But the aggressive geometry puts you in a low, stretched position that can fatigue your back and shoulders on very long days, especially if you're not used to a race fit. If you're comfortable in that posture and your routes are mostly smooth tarmac, it'll handle sportives and endurance rides without complaint.

What is the warranty on Merida carbon frames?
Merida typically offers a limited lifetime warranty on carbon frames for the original owner, covering manufacturing defects but not crash damage or normal wear. Specific terms vary by region and purchase date, so check with your retailer or Merida directly for the exact coverage and registration requirements.
