Merida SCULTURA 5000

About the Merida SCULTURA 5000

The SCULTURA 5000 sits in that sweet spot where race-bike sharpness meets all-day comfort, and the 2026 model refines the formula with electronic shifting at a price that makes rivals look greedy. Merida's CF3 carbon frame weighs in at 997 grams for a medium, yet it's tuned for compliance rather than brutal stiffness - think whippet-quick acceleration without the chatter that leaves your palms numb after three hours. The geometry borrows directly from the World Tour-proven REACTO, so you're getting handling that's been honed at the sharp end, but with enough forgiveness to make sportives and rough-lane club runs genuinely enjoyable rather than an endurance test.

What sets this bike apart is how it refuses to compromise. You'll find proper tyre clearance (up to 700x30C), hydraulic disc brakes with DISC COOLER heat sinks, and Shimano's 105 Di2 groupset - electronic shifting that was once the preserve of bikes costing half again as much. The Vision Team 35 wheelset brings a sensible 35mm rim depth that slices through crosswinds without drama, and the whole package tips the scales around 8.6 kilograms. It's a bike that'll hold its own in a chain gang, then soak up the miles home when everyone else is suffering.

We've spent time examining the 2026 model at expos and showrooms, poring over the spec sheets and trusted test coverage, and the consensus is clear: this is a performance road bike that doesn't punish you for choosing comfort. Whether you're chasing personal bests on local climbs or logging centuries through the Cotswolds, the SCULTURA 5000 delivers the ride quality and versatility that keeps you coming back.

Merida SCULTURA 5000 geometry

The SCULTURA's geometry mirrors the REACTO's race-bred proportions, which means you're sitting in a position that's poised rather than slammed. The reach and stack balance puts you forward enough to drive power through the pedals without folding you into a pretzel - ideal if you're mixing fast club rides with longer sportive efforts where comfort becomes currency. The head angle is calm enough to inspire confidence on fast descents, yet sharp enough that the bike responds instantly when you flick it into a corner or need to close a gap.

Chainstays are kept tidy to sharpen acceleration, but the wheelbase isn't so short that the bike feels twitchy when you're threading through traffic or holding a line on broken tarmac. The bottom bracket drop strikes a sensible compromise: low enough for planted cornering, high enough that you're not clipping pedals on roundabouts. When you stand to climb, the frame stiffens under load without that harsh, jarring feedback some race bikes deliver - it's responsive, not rigid.

Across the size range (from 3XS to XL), Merida's kept the proportions consistent, so whether you're five-foot-nothing or well over six feet, you'll find a frame that fits without resorting to extreme stem lengths or saddle positions. The result is a bike that feels intuitive from the first pedal stroke, with handling that flatters rather than fights you.

Component choices & upgrades

The stock build is already well sorted. Shimano's 105 Di2 groupset brings crisp, reliable electronic shifting with a 50-34T compact crankset and an 11-34T cassette - plenty of range for steep climbs and fast flats alike. The hydraulic disc brakes (160mm rotors front and rear) offer consistent stopping power in all weathers, and the DISC COOLER heat sinks are a thoughtful touch that prevents fade on long descents. The Vision Team 35 wheelset is a sensible all-rounder: 35mm rim depth adds a touch of aero benefit without making crosswinds a white-knuckle affair, and the 19mm internal width suits the 28mm Continental Grand Prix TR tyres perfectly.

That said, if you're logging serious miles or chasing marginal gains, the wheelset is the obvious upgrade path. A lighter, stiffer set of hoops will sharpen acceleration and improve climbing response - look for something with a wider internal rim (21mm or more) if you plan to run 30mm tyres for added comfort or light gravel excursions. The tyres themselves are a solid starting point, but swapping to a faster-rolling tubeless setup can reduce weight and improve puncture resistance without sacrificing grip.

The Merida Expert CC carbon seatpost does a fine job of damping vibration, so there's little need to tinker there unless you're chasing the last few grams. The integrated cable routing (WIRE PORT) keeps things tidy, though it does mean cockpit swaps require a bit more patience. If you're comfortable with the Merida Expert SL II bar and stem, leave them be - they're well shaped and stiff enough for hard efforts. Only if your fit demands a significant change in reach or drop should you consider aftermarket options, and even then, you'll want to ensure compatibility with the internal routing.

Where the Merida SCULTURA 5000 excels

This bike is outstanding at long-distance road riding where comfort and speed need to coexist. If your weekends involve sportives, audax rides, or club runs that mix smooth tarmac with patchy B-roads, the SCULTURA 5000 will keep you fresh when others are flagging. The compliance built into the CF3 frame absorbs the worst of road buzz without dulling the bike's responsiveness, so you can push hard on climbs and still have the energy to sprint for village signs.

It's also a genuinely capable climber. The lightweight frame and sensible gearing mean you'll dance up gradients with a whippet-like eagerness, and the geometry keeps the front end planted even when you're out of the saddle. On descents, the bike feels stable and composed - no nervous twitching or vague steering, just predictable handling that lets you carry speed through corners with confidence.

Where it's less ideal: this is a road bike first, so while the 30mm tyre clearance opens the door to light gravel byways and rough lanes, it's not a dedicated gravel machine. If your rides regularly involve sustained off-road sections or technical gravel, you'll want something with wider clearance and more relaxed geometry. Similarly, if you're a pure crit racer chasing the absolute lowest weight and stiffest frame, there are more aggressive options - but you'll sacrifice the all-day comfort that makes the SCULTURA so versatile.

It's also worth noting that the integrated cockpit, while clean and aerodynamic, limits adjustability. If you're still dialling in your fit or like to experiment with bar width and stem length, the two-piece setup requires more effort to swap than a traditional stem-and-bar combination.

Merida SCULTURA 5000 FAQs

What is the maximum tyre clearance for the Merida SCULTURA 5000?

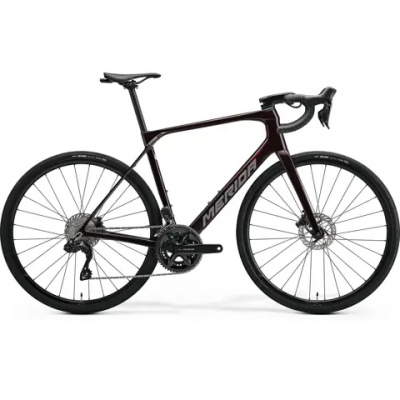

The standard SCULTURA 5000 accommodates tyres up to 700x30C, which is ample for most road conditions and allows you to fit slightly wider rubber for added comfort or light gravel excursions. If you need more clearance, the SCULTURA ENDURANCE variant takes up to 700x35C.

Is the Merida SCULTURA 5000 suitable for long-distance riding?
Absolutely. The CF3 carbon frame is engineered for compliance, soaking up road vibration without sacrificing stiffness where it counts. The geometry is comfortable enough for all-day efforts, and the 11-34T cassette gives you the gearing to tackle varied terrain without grinding yourself into the ground.

What is the difference between the Merida SCULTURA and REACTO?
The REACTO is Merida's dedicated aero race bike, with more aggressive tube shaping and a geometry that prioritises outright speed and aerodynamic efficiency. The SCULTURA shares that race-proven geometry but focuses on a balance of lightweight, comfort, and versatility - it's the bike you'd choose for sportives and long club rides, while the REACTO is for crits and time trials.

How does the Merida SCULTURA 5000 compare to other endurance road bikes?
The SCULTURA 5000 sits at the sportier end of the endurance spectrum. It's lighter and more responsive than many comfort-focused rivals, yet it still delivers the compliance and all-day comfort you'd expect from an endurance bike. It's a strong choice if you want a bike that can race when needed but won't punish you on rough roads.

What is the weight of the Merida SCULTURA 5000?
A size medium comes in around 8.6 kilograms, with the frame alone weighing approximately 997 grams. That's competitive for a bike at this price point, especially given the electronic shifting and disc brakes.

What type of bottom bracket does the Merida SCULTURA 5000 use?
It uses a PressFit 86.5 (also known as BB86 or BB92) bottom bracket standard. It's a common system that keeps the frame's bottom bracket shell narrow and light, though some riders prefer the simplicity of threaded bottom brackets.

Can the Merida SCULTURA 5000 be used for light gravel riding?
Yes, with the right tyres. The 30mm clearance means you can fit slightly knobbier rubber for packed gravel or rough lanes, and the disc brakes and stable geometry inspire confidence on looser surfaces. Just don't expect it to handle technical singletrack or deep gravel - it's a road bike that can dabble, not a dedicated gravel rig.

What groupset does the 2025/2026 Merida SCULTURA 5000 come with?
The 2026 model features Shimano's 105 Di2 12-speed electronic groupset, a significant upgrade from the mechanical Ultegra 11-speed found on earlier models. You're getting crisp, reliable shifting with the convenience of electronic actuation, all at a price that undercuts many rivals still running mechanical drivetrains.
