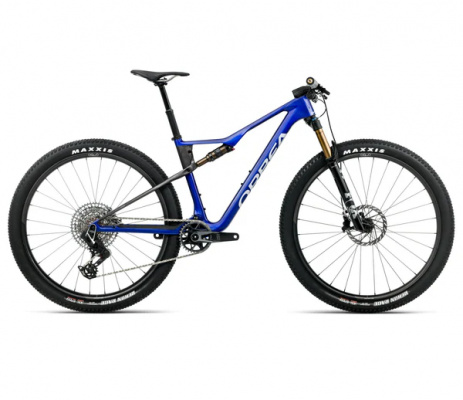

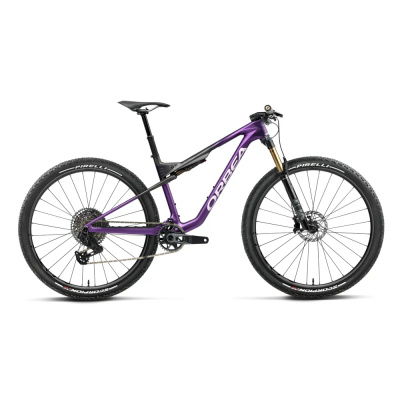

Orbea Oiz M-Team AXS

About the Orbea Oiz M-Team AXS

Orbea's OMX carbon frame sits at the sharp end of cross-country racing, and the M-Team AXS spec wraps it in components that match the intent. This is 120mm travel tuned for speed - efficient enough to reward every pedal stroke on the climbs, composed enough to carry momentum through rock gardens and off-camber roots when the trail tilts down. The UFO suspension platform integrates flex into the seatstays rather than relying on a traditional pivot, keeping the rear end light and direct while the single main pivot above the chainring maintains traction under power.

What sets this build apart is the integration. The Squidlock remote on the bar controls both suspension lockout and the dropper post with a single thumb, and the I-line shock routing runs internally through the frame for a clean cockpit and fewer cables snagging branches. SRAM's X0 Eagle AXS transmission brings wireless shifting and the wide 10-52t range that modern XC demands, while Fox Factory suspension front and rear delivers the control you'll need when you're chasing splits or just riding faster than you probably should.

It's a bike that rewards commitment. The geometry is modern - 67-degree head angle, 76.5-degree seat tube, 432mm chainstays - so you're pitched forward enough to weight the front wheel on steep climbs without feeling cramped, and the longer reach (450mm on a medium) gives you room to move when the descent gets rowdy. At a claimed 10.4kg for a size large with tubes, it's light enough to feel urgent but not so skeletal that you're second-guessing line choice.

Orbea Oiz M-Team AXS geometry

The numbers translate to a riding position that's aggressive without being punishing. That 76.5-degree seat angle plants you over the bottom bracket, so your weight stays centred when the gradient ramps up and the front wheel tracks true rather than wandering skyward. Reach grows sensibly across the size range - 425mm on the small, 496mm on the XL - giving taller riders the cockpit length they need without forcing shorter riders onto a bike that feels like a plank.

The 67-degree head angle is calm enough for technical descents but still quick to respond when you need to thread a tight switchback or dodge a root at speed. Chainstays hold at 432mm across all sizes, keeping the rear end snappy and the bike easy to loft over obstacles, though that shorter back end can occasionally make the rear wheel feel a touch skittish under hard braking on loose surfaces. Stack height climbs progressively - around 596mm on the medium, 616mm on the large - so you're not folded over the bar, but you're not sitting upright either; it's a posture that balances power output with control.

Bottom bracket drop hovers around 33-42mm depending on sag and setup, low enough to feel stable in corners but not so buried that you're clipping pedals on every rock. The wheelbase stretches to roughly 1,170mm on a medium, 1,200mm on a large, which adds a degree of high-speed poise without making the bike feel sluggish when you need to change direction quickly. It's geometry that assumes you'll be riding fast and rewards precision.

Component choices & upgrades

The stock build is already well sorted. SRAM's X0 Eagle AXS transmission shifts cleanly and the wireless setup means one fewer cable to route or replace, while the 10-52t cassette gives you the range to spin up punchy climbs and still have gears left when the trail flattens. Fox Factory suspension - 34 Float SC up front, Float SL out back - offers the adjustability and small-bump sensitivity that XC racing demands, and the Kashima coating reduces friction when you're deep in travel. The Oquo MP30TEAM carbon wheels are stiff, light, and built around DT350 hubs that'll take a beating without complaint.

If you're chasing marginal gains or your local trails demand more, there are sensible upgrade paths. Swapping to the Oquo MP30LTD wheels with DT240 hubs and Sapim CX-Ray spokes shaves a few grams and adds a touch more engagement, though the stock wheels are hardly a weak link. The SRAM Level Silver brakes are adequate for XC work, but if you're heavier, ride steeper terrain, or simply want more power and modulation, a move to four-piston callipers - SRAM Code or Shimano XT - will give you more confidence on long descents without adding much weight. The Maxxis Rekon Race tyres are fast-rolling and light, ideal for dry hardpack and groomed trails, but if your local dirt is loose or wet, a grippier front tyre like a Maxxis Aspen or Schwalbe Racing Ray will improve cornering confidence without killing speed.

The Fox Transfer SL dropper is smooth and reliable, though the 100mm drop on smaller sizes can feel limiting if you're used to more post travel; taller riders on large and XL frames get 125-150mm, which is more useful when the trail gets steep. The Selle Italia SLR saddle works for many riders, but saddles are personal - if it doesn't suit you after a few rides, swap it. The ESI grips are simple and effective, though some prefer lock-on grips for easier replacement. The OC carbon bar is wide at 760mm, which suits modern trail riding, but if you prefer a narrower cockpit for tighter woods, cutting it down is straightforward.

Where the Orbea Oiz M-Team AXS excels

This bike is outstanding at cross-country racing and marathon events where speed, efficiency, and technical capability all matter. It climbs with the urgency of a lighter, more rigid XC bike but descends with the composure of something with more travel, so you're not losing time on the way down or white-knuckling through rock gardens. The suspension platform is efficient enough that you can leave it open on rolling terrain and still feel connected to the trail, and when you do need to firm things up for a long fire-road climb, the Squidlock remote makes the switch instant.

It's also very capable on aggressive trail rides that mix fast climbs with technical descents. The 120mm travel and modern geometry give you enough headroom to tackle rough, rooty singletrack and steep chutes without feeling out of your depth, and the bike's light weight means you can still ride it all day without feeling beaten up. If your weekends involve long loops with varied terrain - smooth climbs, rocky descents, tight switchbacks, and the occasional drop - this bike will handle it all without complaint.

Where it's less ideal is on truly rough, enduro-style trails with big hits, sustained descents, and chunk that demands more travel and a slacker head angle. The 120mm travel and firm suspension tune are optimised for speed and efficiency, not plushness, so repeated square-edge hits and big compressions will feel harsher than they would on a longer-travel trail bike. It's also not the best choice if you prioritise comfort over speed - the aggressive geometry and race-focused setup assume you're willing to work for your speed rather than cruise. And if you're a heavier rider or frequently ride steep, technical descents, the two-piston brakes may feel underpowered compared to four-piston options.

Orbea Oiz M-Team AXS FAQs

What is the Orbea Oiz M-Team AXS best used for?
Cross-country racing, marathon events, and aggressive trail riding where speed and efficiency matter. It's built for riders who want to climb fast and descend confidently on technical terrain, and it excels on courses that reward both pedalling efficiency and handling precision.

How much does the Orbea Oiz M-Team AXS weigh?
Orbea claims 10.4kg for a size large with tubes, though real-world weights can vary slightly depending on build spec and accessories. The OMX carbon frameset alone is claimed at 1,740g, which is impressively light for a full-suspension XC frame.

What is the suspension travel on the Orbea Oiz M-Team AXS?
120mm front and rear. The UFO single-pivot design integrates flex into the seatstays and is tuned for efficient pedalling and responsive handling, with a Fox Factory fork and shock offering adjustable compression and rebound damping.

What are the key technologies found on the Orbea Oiz M-Team AXS?
The OMX carbon frame uses Fiberlink technology for stiffness and light weight, the UFO suspension design integrates flex into the seatstays, and the I-line shock system routes lockout cables internally for a clean cockpit. The Squidlock remote controls both suspension and dropper post from a single lever, and the frame features internal cable routing including through the headset.

Is the Orbea Oiz M-Team AXS suitable for trail riding, or is it strictly for XC racing?
It's primarily an XC race bike, but the modern geometry and 120mm travel make it surprisingly capable on technical trails. If your trail rides are fast and varied rather than purely rough and steep, it'll handle them well, though it won't feel as plush or forgiving as a dedicated trail bike with more travel.

What are the common complaints or cons of the Orbea Oiz M-Team AXS?
Bottle cage clearance is tight, especially with larger bottles, and the internal cable routing through the headset can make maintenance more involved. Some riders find the suspension feel firm on sharp, square-edge hits, and the rear end can occasionally skip under hard braking on loose surfaces. Chain slap noise is also mentioned due to minimal chainstay protection on some models.

What are the differences between the 2024 and 2025 Orbea Oiz M-Team AXS models?
The 2025 model continues with the same OMX carbon frame, 120mm travel, and SRAM X0 Eagle AXS drivetrain as the 2024 version. Updates for 2025 include new colour options and a redesigned Squidlock remote and integrated cockpit, but the core frame and suspension platform remain unchanged.

Can I fit wider tyres on the Orbea Oiz M-Team AXS?
The frame is designed around 2.40-inch tyres, which is what it ships with (Maxxis Rekon Race 2.40 WT). You could potentially fit slightly wider tyres depending on tread pattern and casing, but clearance is optimised for fast-rolling XC rubber rather than aggressive trail tyres, so you're unlikely to gain much beyond 2.4 inches without rubbing.
