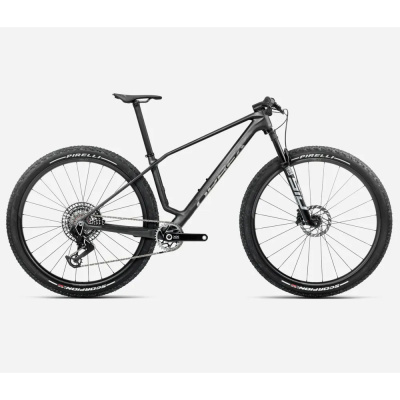

Orbea Alma M LTD

About the Orbea Alma M LTD

Orbea's Alma M LTD sits at the sharp end of the XC hardtail spectrum, where every gram and every watt matter. Built around the brand's OMX carbon monocoque - a frame that tips the scales at around 1,080 grams for a painted medium - this is a bike engineered for riders who chase podiums, KOMs, and that pure, unfiltered connection between effort and speed. The 2026 iteration carries forward the major redesign introduced in 2025, anchoring its character in modern XC geometry, the clever X-Fader compliance technology, and a component spec that reads like a wish list: SRAM XX SL Eagle AXS wireless shifting, RockShox SID SL Ultimate fork, and Oquo's carbon MP30LTD wheelset.

This isn't a bike that apologises for being a hardtail. Instead, it leans into the format's strengths - immediate power transfer, low weight, and that taut, responsive feel under hard pedalling - while deploying smart engineering to sand off the rough edges. The X-Fader tech, a micro-damping feature built into the seat tube, absorbs high-frequency vibration without the weight or complexity of rear suspension. Pair that with clearance for 2.4-inch rubber and a 110mm fork, and you've got a race machine that won't punish you over three hours of singletrack.

Where does it fit? If your weekends revolve around XC races, marathon events, or fast trail rides where climbing matters as much as the descent, the Alma M LTD delivers. It's a bike that rewards fitness and technique, offering a direct, engaging ride that makes you faster simply because it wastes nothing. The integrated cockpit and internal routing keep things tidy, while the Powerspine frame design ensures every pedal stroke translates into forward motion. You're not buying comfort in the trail-bike sense; you're buying efficiency with just enough compliance to keep you fresh when the course gets rough.

Orbea Alma M LTD geometry

Orbea pitches the Alma's geometry as modern XC without the compromises, and the numbers back that up. A 67-degree head angle and 75.5-degree seat angle (both measured with the 110mm fork fitted) plant you in a position that's upright enough for sustained climbing but not so steep you're diving over the bars on technical descents. Reach figures span 426mm in medium through to 485mm in extra-large, giving you room to move forward when the gradient kicks up and enough cockpit length to stay composed when speeds rise.

The 425mm chainstays are short by modern trail standards but typical for an XC racer, keeping the rear end snappy and the bike eager to change direction. That brevity also helps you manual over roots and lift the front wheel without wrestling the bike. Wheelbase grows predictably with size - 1,144mm in medium, stretching to 1,200mm in XL - so larger riders get stability without the bike feeling nervous, while smaller frames stay nimble in tight woods.

Bottom bracket drop hovers around 61mm, which is low enough to keep the bike stable through fast corners but not so slack you're clipping pedals on every rock. Stack climbs from roughly 602mm in medium to 630mm in XL, so taller riders won't feel cramped, and the integrated cockpit's stem options (75mm or 90mm, both at -17 degrees) let you fine-tune your reach without resorting to spacer stacks. On the bike, this geometry translates to a posture that's aggressive enough for racing but sustainable over marathon distances - you're leant forward, weight centred, ready to punch through climbs and hold your line when the trail gets choppy.

Component choices & upgrades

The M LTD arrives with a spec that's already race-ready, so there's little need to reach for the credit card unless your ambitions or terrain demand it. SRAM's XX SL Eagle AXS drivetrain is as good as wireless shifting gets: the 10-52T cassette offers a 520% range, the XX SL derailleur is light and precise, and the AXS Pod shifter sits exactly where your thumb wants it. The RockShox SID SL Ultimate fork - 110mm of DebonAir+ air spring and a three-position Motion Control damper - is tuned for XC speed, with a remote lockout that firms things up for tarmac transitions or fire-road slogs.

Brakes are typically SRAM Level Ultimate Carbon two-piston units, though some builds feature the four-piston Motive Ultimate A2 or even Shimano XTR depending on model year and spec variation. Rotor sizes (180mm front, 160mm rear) are sensible for XC racing, offering plenty of power without the weight penalty of bigger discs. The Oquo MP30LTD carbon wheels - 30mm internal width, Boost spacing - are stiff, light, and wide enough to support the 2.4-inch Pirelli Scorpion XC RC or Maxxis Rekon Race tyres fitted as standard. Those tyres are fast-rolling and grippy enough for dry XC courses, though you might swap to something burlier if your local trails are perpetually muddy or littered with sharp rocks.

Upgrade paths? If you're chasing every second, a lighter saddle or carbon bottle cages will shave a few grams. Riders tackling rougher terrain might consider a beefier tyre - something with a taller tread or reinforced sidewalls - though you'll sacrifice a bit of speed. The integrated OC Mountain Performance MP10 Carbon cockpit (760mm wide, 9-degree sweep) is already top-tier, so there's little reason to change it unless you have very specific fit needs. A dropper post isn't standard, but the frame's SmartClips allow deeper insertion if you want to add one for technical descents. Honestly, the stock build is so well sorted that most riders will simply fit pedals, set sag, and race.

Where the Orbea Alma M LTD excels

This bike is built for one thing above all: cross-country racing. If your calendar includes XC marathons, short-track sprints, or stage races where every climb is a battle and every descent a chance to claw back time, the Alma M LTD is in its element. The frame's stiffness and low weight mean you can attack climbs with confidence, knowing the bike won't flex or bog down under hard pedalling. The X-Fader technology keeps trail chatter from rattling your hands and lower back, so you arrive at the top of a long climb fresher than you would on a harsher hardtail.

It's also brilliant for fast trail rides where the terrain is varied but not overly technical - think smooth singletrack, gravel byways, and fire roads with the occasional rocky section. The 110mm fork and 2.4-inch tyre clearance give you enough cushion and grip to handle rough patches without slowing you down, while the geometry keeps the bike stable at speed. You'll rail bermed corners, hold your line through washboard, and accelerate out of tight switchbacks with minimal effort.

Where it's not ideal: aggressive trail riding or enduro-style descents. The hardtail format and XC-focused geometry mean you'll feel every big hit, and the bike won't inspire the same confidence on steep, loose descents as a longer-travel full-suspension rig. It's also overkill for casual rides or commuting - the race-oriented position and firm ride quality are less forgiving when you're just pootling to the café. If your riding is more about exploration than competition, or if your local trails are consistently rough and technical, a trail hardtail or short-travel full-suspension bike will serve you better. But if speed, efficiency, and that direct, engaging hardtail feel are what you're after, the Alma M LTD is hard to beat.

Orbea Alma M LTD FAQs

What is the Orbea Alma M LTD frame made of?
The frame uses Orbea's OMX carbon monocoque construction, an advanced layup that balances stiffness for power transfer with enough compliance to absorb trail vibration. A painted medium frame weighs around 1,080 grams, making it one of the lighter XC hardtail frames available.

How much does the Orbea Alma M LTD weigh?
Complete bike weight sits between 8.0 and 8.8 kilograms depending on size and exact build spec. That's impressively light for a fully equipped XC race bike, and you'll feel the difference on every climb.

What is the X-Fader technology on the Orbea Alma?
X-Fader is a micro-damping feature built into the seat tube that absorbs high-frequency vibration and small impacts. It's not suspension in the traditional sense, but it noticeably smooths out rough surfaces and reduces rider fatigue without adding weight or compromising pedalling efficiency.

What is the intended use of the Orbea Alma M LTD?
Cross-country racing and fast trail riding are its primary roles. It's designed for riders who prioritise speed, climbing efficiency, and low weight, and who are comfortable with the direct, engaging feel of a hardtail.

What is the tyre clearance on the Orbea Alma M LTD?
The frame and fork accommodate tyres up to 2.4 inches wide, giving you enough room for grippy, volume-rich rubber without resorting to narrow, harsh XC tyres. That clearance is a key part of the bike's ability to handle rougher terrain while staying fast.

What are the key differences between Orbea Alma models?
The Alma range shares the same OMX carbon frame across models like the M-Pro, M-Team, M20, and M30, but component specs and price points vary. The M LTD sits at the top with SRAM XX SL Eagle AXS, carbon wheels, and the lightest finishing kit, while lower-tier models use mechanical shifting, alloy wheels, and slightly heavier parts.

Is the Orbea Alma M LTD suitable for downhill riding?
Not in the gravity-fed, bike-park sense. The 110mm fork and hardtail format are capable on XC descents and fast, flowing singletrack, but the bike isn't designed for steep, technical downhill runs or big jumps. If that's your focus, you'll want a longer-travel full-suspension enduro or downhill bike.

What is the recommended rider height for an Orbea Alma M LTD size Medium?
Medium typically suits riders between 165 and 180 centimetres tall, though exact fit depends on your proportions and riding style. If you're on the cusp between sizes, consider whether you prefer a more compact, nimble feel (size down) or a roomier, more stable position (size up).
