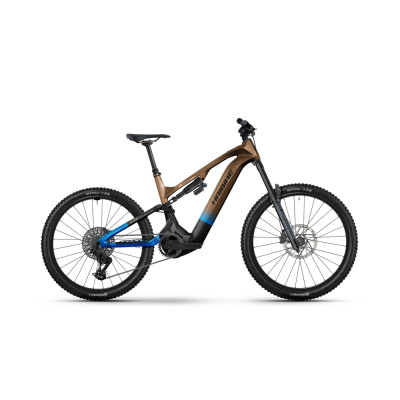

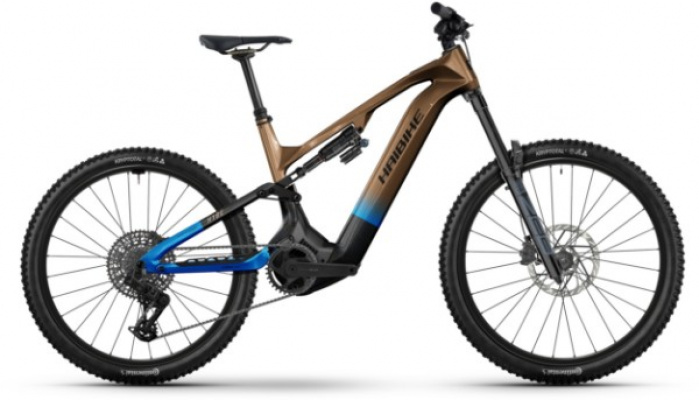

Haibike HYBE CF 9

About the Haibike HYBE CF 9

Haibike rebuilt the HYBE from the ground up for 2025, and the CF 9 sits at the sharp end of that redesign. This is a full-carbon enduro eMTB engineered to own technical descents and power through climbs that would leave lesser bikes gasping. The frame uses extended, straightened tubes and a horizontal shock mount - kinematics that prioritise composure when the trail gets rowdy. Bosch's fifth-generation Performance CX motor sits at an 85-degree angle, which not only tucks the 800Wh PowerTube neatly into the downtube but also lets you swap the battery without wrestling a closed frame. It's a detail that matters when you're deep into a ride and need to hot-swap cells.

The HYBE CF 9 rolls on a mullet wheel setup: a 29-inch front for ploughing over roots and holding speed, a 27.5-inch rear for snapping through tight switchbacks and keeping the back end lively. That combination, paired with 170mm of RockShox ZEB up front and 160mm of Super Deluxe out back, gives you a bike that feels planted at speed yet nimble enough to thread technical lines. SRAM's T-Type AXS drivetrain brings wireless shifting and a clean cockpit, while DB8 four-piston brakes deliver the kind of stopping power you'll lean on when gravity takes over.

This isn't a bike for tentative trail cruising. The HYBE CF 9 is built for riders who want to charge, who'll use every millimetre of that travel, and who need a motor that won't fade when the gradient kicks past twenty per cent. It's confident, capable, and - thanks to that carbon chassis - lighter on its feet than you'd expect from an 800Wh enduro rig.

Haibike HYBE CF 9 geometry

The HYBE CF 9's geometry leans aggressive without tipping into unrideable. A slack 64.5-degree head angle plants the front wheel ahead of you, which translates to stability when you're barrelling down rock gardens or committing to steep chutes. That front-centre length gives you room to move your weight back without feeling cramped, and it keeps the bike tracking straight when the trail gets loose or choppy. The steep 73.8-degree seat angle puts you over the bottom bracket for climbing, so even when the motor's doing the heavy lifting, your pedal stroke stays efficient and you're not fighting the bike to stay centred.

Reach grows sensibly across the size run - from 421mm in small to 511mm in extra-large - so you can find a cockpit that suits your reach and riding style without compromise. Stack climbs in step, keeping the front end high enough that you're not folded over the bars on long descents. The chainstays hold steady at 450mm across all sizes, which keeps the rear end snappy and responsive; you'll feel that when you're pumping through compressions or snapping the bike sideways to avoid a rut. Wheelbase stretches as you size up, adding stability at speed without making the bike feel like a barge in tight singletrack.

The result is a posture that's ready to attack. You're not perched on top of the bike; you're in it, weight low, hands and feet planted. When you need to shift back for a steep descent, there's room. When you're climbing, the steep seat angle keeps your hips over the cranks so the motor's torque translates cleanly to the trail. It's a geometry that rewards commitment - the more you push, the more the bike responds.

Component choices & upgrades

The stock build on the HYBE CF 9 is already well sorted for aggressive trail and enduro riding. RockShox's ZEB Select RC fork and Super Deluxe Select+ shock deliver controlled, progressive suspension that'll handle big hits and rough chatter without drama. The DebonAir+ spring tech keeps the fork supple off the top, so you're not getting bucked around by small bumps, and the damping is tuneable enough that you can dial it to your weight and riding style. SRAM's T-Type AXS drivetrain is clean, reliable, and shifts crisply even under load - there's no cable stretch to worry about, and the wireless setup keeps the cockpit uncluttered. The DB8 brakes are four-piston stoppers with plenty of power and modulation; paired with 220mm front and 200mm rear rotors, they'll haul you down from speed without fade.

That said, if you're riding at a level where you're regularly bottoming out the suspension or you want finer damping control, stepping up to a ZEB Ultimate fork and a Super Deluxe Ultimate shock would give you more adjustability - high- and low-speed compression, rebound tuning, and a plusher feel across the travel. For riders who spend a lot of time in steep, technical terrain, upgrading to SRAM's Maven brakes would add even more power and heat management, though the DB8s are more than capable for most riders. The Continental Kryptotal tyres are enduro-spec rubber with soft compound and aggressive tread; they grip well in loose and wet conditions, but if you're riding drier, hardpack trails, you might swap the rear for something faster-rolling to claw back a bit of efficiency.

The WTB ST i30 rims are tough and wide enough to support the 2.4-inch front and 2.6-inch rear tyres without squirm, but if you're a heavier rider or you're regularly smashing rock gardens, a burlier wheelset with reinforced spokes and a higher spoke count would add durability. The Limotec dropper post offers 170mm of travel, which is generous for getting your weight low on descents; if you're between sizes or you want more drop, aftermarket posts go longer, though 170mm is already plenty for most riders. The stock grips and saddle are functional, but contact points are personal - swap them if they don't suit your hands or sit bones.

The beauty of the CF 9 is that it arrives ready to ride hard. Upgrades are there if your skills or terrain demand more, but the stock kit won't hold you back.

Where the Haibike HYBE CF 9 excels

The HYBE CF 9 is outstanding at enduro and aggressive trail riding - terrain where you need long-travel suspension, a powerful motor, and a chassis that stays composed when the trail gets rough and steep. This is a bike for riders who want to session technical descents, who'll use every millimetre of that 170mm fork travel, and who need a motor that can haul them back to the top without fading. The Bosch Performance CX Gen 5 delivers 85Nm of torque with a smooth, natural power curve; it responds instantly to your pedal input, and the eMTB mode adjusts assistance dynamically so you're not fighting surges or drop-offs. Paired with the 800Wh battery, you've got the range to tackle long backcountry loops or multiple laps of a steep trail park without range anxiety.

The mullet wheel setup shines in mixed terrain. The 29-inch front wheel rolls over roots, rocks, and ruts with calm authority, holding speed and tracking straight even when the trail surface is broken or loose. The 27.5-inch rear keeps the back end lively and responsive, so you can snap the bike through tight corners, pump compressions, and manual over obstacles without the sluggishness that can come with a full 29er setup. The carbon frame is stiff enough to handle hard landings and aggressive cornering without flex, yet it's light enough that the bike feels agile and playful when you're off the brakes.

The HYBE CF 9 also handles steep, technical climbs with ease. The steep seat angle keeps your weight centred over the bottom bracket, so the motor's torque translates cleanly to the rear wheel without spinning out. The suspension stays active enough to maintain traction over roots and rocks, and the bike's weight distribution keeps the front wheel planted even on loose, off-camber sections. It's not a bike that'll win XC races, but for riders who want to climb efficiently so they can descend hard, it's more than capable.

Where the HYBE CF 9 is less ideal: if you're after a lightweight, nimble trail bike for mellow singletrack or you spend most of your time on groomed flow trails, this is overkill. The long-travel suspension and enduro-focused geometry are built for rough, steep terrain; on smoother trails, you'll be carrying extra weight and suspension travel you're not using. The aggressive tread on the Continental Kryptotal tyres grips brilliantly in loose and wet conditions, but they're slower-rolling on hardpack or gravel, so if you're mixing in a lot of fire-road climbs or smoother byways, you'll feel the drag. And while the 800Wh battery offers impressive range, the bike's weight and the motor's assistance are tuned for steep, technical riding - if you're after a lighter, more efficient eMTB for long-distance touring or less demanding terrain, there are better-suited options.

This is a bike for riders who want to push hard, who'll use the motor to session descents rather than just cruise trails, and who need a chassis that can handle the consequences of speed and commitment.

Haibike HYBE CF 9 FAQs

What is the range of the Haibike HYBE CF 9?
Range depends on terrain, rider weight, assistance mode, and how hard you're pushing, but the 800Wh PowerTube battery offers substantial capacity for long rides. In eMTB mode on steep, technical trails, expect 40 - 60 kilometres; in Eco mode on mellower terrain, you could stretch that to 80 - 100 kilometres or more. The Bosch Smart System app lets you monitor battery levels and adjust assistance to maximise range.

What type of riding is the Haibike HYBE CF 9 best suited for?
The HYBE CF 9 is built for enduro and aggressive trail riding - steep descents, technical climbs, rough terrain, and trail park laps. It's a bike for riders who want long-travel suspension, a powerful motor, and a chassis that stays composed at speed. It's less suited to mellow trail cruising, XC racing, or long-distance touring on smoother surfaces.

How does the mullet wheel setup affect the Haibike HYBE CF 9's handling?
The 29-inch front wheel rolls over obstacles with calm authority, holds speed, and tracks straight on rough terrain. The 27.5-inch rear keeps the back end lively and responsive, making it easier to snap through tight corners, pump compressions, and manual over obstacles. The combination gives you stability at speed without sacrificing agility in technical sections.

What are the key upgrades on the 2025 Haibike HYBE CF 9 compared to previous models?
The 2025 model features an all-new carbon frame with extended, straightened tubes and a horizontal shock mount for improved kinematics. The Bosch motor is angled at 85 degrees for easier battery removal, and the bike is upgraded to SRAM T-Type AXS wireless shifting and SRAM DB8 four-piston brakes. The 800Wh battery is a step up from the 750Wh unit in earlier models, and the suspension is updated to RockShox ZEB Select RC and Super Deluxe Select+.

What is the weight of the Haibike HYBE CF 9?
Haibike hasn't published an official weight for the complete bike, but the full carbon frame and high-capacity battery mean it's lighter than aluminium equivalents while still carrying the heft typical of an enduro eMTB. Maximum permissible weight - rider, cargo, and bike combined - is 135 kilograms, so the bike itself is likely in the low-to-mid twenties in kilograms.

Is the Haibike HYBE CF 9 suitable for long-distance touring?
The 800Wh battery and robust build make it capable of long rides, but the HYBE CF 9 is optimised for steep, technical terrain rather than efficient touring. The aggressive geometry, long-travel suspension, and knobby tyres are overkill for smoother gravel or fire roads, and you'll carry extra weight and drag compared to a dedicated touring eMTB. If your touring involves rough, mountainous terrain, it'll handle it, but for mellower long-distance rides, there are lighter, more efficient options.

What are the maintenance requirements for the Bosch Smart System on the Haibike HYBE CF 9?
The Bosch Smart System is low-maintenance: keep the battery charged, clean the motor casing and battery contacts periodically, and update firmware via the Bosch eBike Flow app when prompted. The motor is sealed and doesn't require regular servicing, though it's worth having a Bosch-certified mechanic check it annually or if you notice any performance changes. The battery should be stored at around 30 - 60 per cent charge if you're not riding for extended periods, and avoid exposing it to extreme temperatures.

How does the RockShox ZEB fork perform on the Haibike HYBE CF 9?
The ZEB Select RC is a robust, enduro-focused fork with 170mm of travel and DebonAir+ spring tech that keeps it supple off the top while remaining supportive through the mid-stroke. It handles big hits and rough chatter confidently, and the damping is tuneable enough to dial it to your weight and riding style. It's not as plush or adjustable as the Ultimate version, but for most riders, the Select RC delivers controlled, progressive performance without drama.
