Fitting Your Tektro Cassette: Compatibility You Need to Know

Tektro 9-speed cassettes use the standard Shimano Hyperglide (HG) freehub spline pattern - the one that's been on most MTB and trail hubs for decades. That means fitting is straightforward on the vast majority of wheels you'll encounter. What they won't fit is a Shimano Micro Spline freehub body (the one introduced for 12-speed) or an SRAM XD driver. If you're unsure which freehub your wheel uses, pull the cassette off and count the splines - HG bodies have the distinctive wide spline that keys the cassette in place.

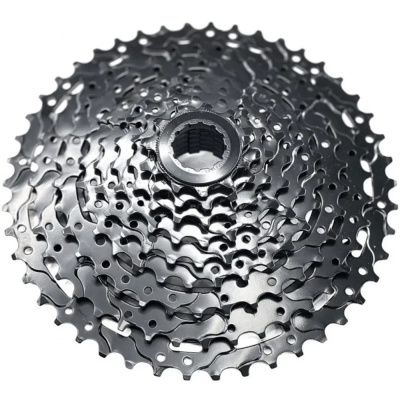

Tektro's 9-speed range includes the popular 11-46t spread, which gives you a genuinely wide gear range for technical climbs without needing to touch anything else on the bike. If you're replacing the entire drivetrain rather than just the cassette, it's worth checking that your rear derailleur matches the pull ratio - particularly important with the ED9 system. Have a look at Tektro 9 speed rear derailleurs to make sure everything speaks the same language before you start bolting parts on. Mixing pull ratios from different generations is a common cause of poor indexing that's easily avoided.

Chain compatibility is equally simple. Any standard 9-speed chain - Shimano, SRAM, KMC - will run cleanly on a Tektro cassette. On an e-bike, though, fit a reinforced e-specific 9-speed chain. Standard chains weren't designed for the shock loads a motor delivers on steep pitches, and a snapped chain mid-ride is nobody's idea of a good time.

Standard MTB vs. E-Drive 9: Picking the Right Block

Tektro's 9-speed cassette lineup splits into two clear camps. The standard MTB cassettes are conventional steel cog units aimed at regular trail and hardtail riding - solid, affordable, and a sensible choice when your drivetrain takes normal pedalling loads. They shift well, they wear reasonably, and they make sense as a budget replacement on a bike without a motor.

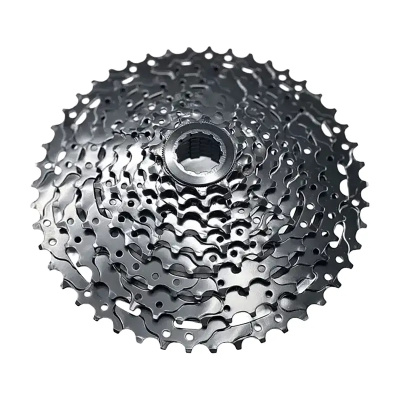

The ED9 range is a different tool for a different job. The cogs use a thicker gauge steel specifically to resist the tooth bending that happens when you're shifting under the tension of a mid-drive motor. On a conventional bike, you can often freewheel slightly before a shift and unload the chain. With a motor pushing through the cranks, that luxury goes away - the chain is under load almost constantly. Tektro's optimized shift ramps on the ED9 are profiled to guide the chain across cogs even under that tension, which keeps shifts cleaner and reduces the likelihood of a dropped or snapped chain.

The weight penalty over a conventional cassette is real but modest. You're not buying the ED9 for gram counting - you're buying it because the alternative is replacing a cheaper cassette twice as often. On a bike where the motor's doing a lot of the work, worn drivetrain parts show up fast. The ED9's reinforced steel cogs are built to slow that curve down. If you're also looking at the wider e-bike drivetrain picture, Tektro chainsets and cranks are worth pairing in for a consistent system.

Riders on a non-motorised setup who want alternatives can compare options from Shimano 9 speed cassettes or look at what Sunrace 9 speed cassettes offer at a similar price point - both are Hyperglide compatible and slot straight onto the same HG freehub body.

UK Durability and Maintenance: Keeping the Drivetrain Alive Through Winter

British conditions are hard on drivetrains. The mix of clay, grit, and standing water that coats your cassette on a typical Peak District or North Downs winter ride behaves like grinding paste - it works into every gap between cogs and accelerates wear at a rate that would horrify anyone used to riding in drier climates. Tektro's heavy-duty steel construction handles this better than lightweight alloy-heavy cassettes, but it's not a reason to skip maintenance.

Clean your cassette properly after muddy rides. A stiff brush, degreaser, and a rinse before re-lubing makes a significant difference to how long everything lasts. More importantly, check drivetrain wear with a chain wear tool regularly - on an e-bike, check at the 0.5% mark rather than waiting for 0.75%. A worn chain on a high-torque drivetrain chews through cog teeth fast, and by the time you notice poor shifting, the damage is usually done. Catching it early saves the cassette.

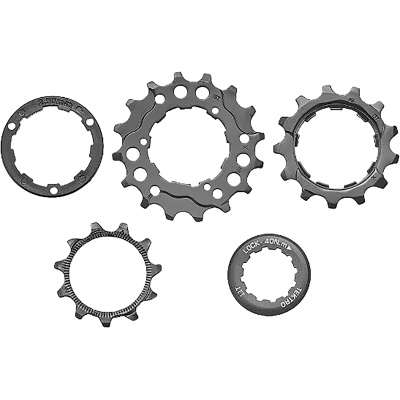

When fitting or re-fitting the cassette, torque the lockring to 40Nm. Under-torqued lockrings can creep loose on e-bikes, particularly under the shock loads of a motor kicking in on a rooty climb. A proper torque wrench here isn't overkill - it's basic workshop sense. The ED9's steel construction is tough, but mechanical sloppiness will undermine any cassette regardless of what it's made from.

If you want to compare durability at a similar price bracket, MicroShift 9 speed cassettes are worth a look for non-motorised builds - decent build quality and HG-compatible, though they don't have an e-bike specific variant in the same way Tektro does with the ED9.
