Reynolds Gravel Wheels
Reynolds gravel wheels are one of the most compelling carbon upgrades you can make to a gravel bike - dropping rotational weight while adding the kind of stiffness and compliance that actually changes how a bike feels underfoot. Reynolds has been refining carbon rim construction long enough to get the layup science genuinely right, and the gravel range reflects that: robust where it needs to be, responsive where it counts.
Every current Reynolds gravel wheelset ships tubeless-ready, with rim tape already installed and valves in the box. The internal rim widths suit modern 40 - 50mm tyre fitments well, and the hookless profiles on select models work in lockstep with ETRTO-compliant tyres - worth checking before you order. Hub options run from Reynolds' own TR3 CNC-machined units through to fully integrated Industry Nine Hydra hubs on the top-tier builds, so engagement character varies significantly across the range.
Whether you're grinding out the South Downs Way or navigating your local bridleway network in February mud, there's a Reynolds wheelset specced for the job. Check your axle spacing - 12x100mm front, 12x142mm rear is standard across the range - and your freehub body compatibility before you buy. The grid below covers the full current lineup; use the filters to narrow by weight, hub spec, and internal rim width.
Prices and availability can change quickly. Delivery charges are not always included in listed prices.
Final price, stock status and delivery terms are set by retailer. We may receive a commission on purchases made.
Axles, Freehubs, and Hookless: Getting the Fitment Right
Every Reynolds gravel wheelset in the current range runs a 12mm thru-axle standard - 12x100mm at the front, 12x142mm at the rear. That covers the vast majority of modern gravel bikes, but if you're running an older flat-mount frame with quick-release dropouts, these won't fit without an adapter, and adapters aren't something Reynolds recommends here. Check your frame spec first.
Rotor fitment is Centerlock across the premium models, which is tidy for installation and keeps things secure on long descents. A handful of models offer 6-bolt compatibility, so glance at the spec sheet if you've already got a set of rotors you want to keep. Centerlock does require a lockring tool if you're swapping rotors at home - not a problem, just worth having in the kit bag.
On hookless rims: Reynolds' hookless profile carbon fiber rim construction demands ETRTO-compliant tyres at pressures within the published limits - typically no higher than 72.5psi. Most gravel-specific tyres from the major brands are ETRTO-compliant now, but it's not universal. Run a quick check against Reynolds' tyre compatibility list before you commit to a tyre purchase. The upside of hookless is a more consistent bead seat and a rim profile that tends to absorb impacts more progressively than a hooked equivalent. If you're moving from a Shimano HG freehub to SRAM XDR - say, because you're building around a 12-speed SRAM groupset - Reynolds' freehub bodies are swappable on most hub platforms, which is handy. Comparable options from DT Swiss and Hope follow similar logic, but hub body availability varies by retailer stock.
ATR vs. Blacklabel: Where Your Money Goes
Reynolds structures the gravel range into two clear tiers, and the differences between them are meaningful rather than marginal.

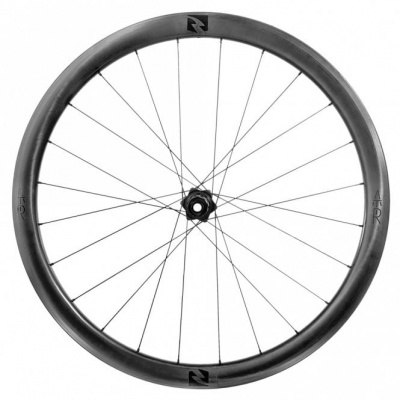

The ATR (All Terrain Road) series is the workhorse end of the lineup. Rims use CR3 carbon layup technology - Reynolds' high-value construction process that balances compliance with durability rather than chasing the lowest possible weight. Hubs are Reynolds' own TR3 units: in-house CNC-machined alloy, solid bearings, and sensible engagement for mixed-surface riding. These aren't flashy hubs, but they're reliable and serviceable. If you're putting in big gravel miles across varied conditions without wanting to fuss over hub maintenance every few weeks, the ATR is the practical pick. It competes well on stiffness-to-weight against Mavic at a similar price point.

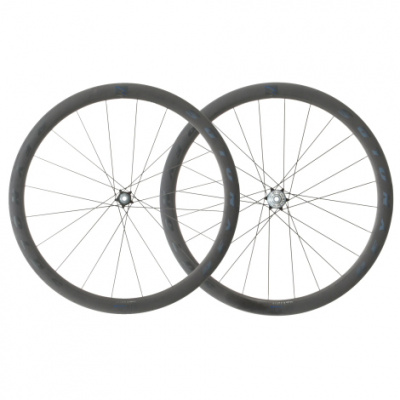

The Blacklabel series is a different proposition. MR5 (Mountain Rim 5) carbon layup replaces CR3 - it's a more precise, impact-resistant construction originally developed for the demands of aggressive off-road riding, translated here into a gravel-optimised profile. The rim is stiffer and lighter, and the layup handles sharp strikes better. That matters on chalk and flint trails where a rim strike isn't just inconvenient - it can be catastrophic on a cheaper carbon wheel.
The bigger change on Blacklabel is the hub spec. Industry Nine Torch and Hydra hubs replace the TR3 units, and the engagement angle difference is immediately noticeable. The Hydra hub in particular offers 690 points of engagement - the ratchet clicks in at fractions of a degree, so there's near-instant power transfer the moment you push on the pedals. On technical climbs where you're picking your way through roots and rocks, that responsiveness translates into real control. It's the kind of difference you feel rather than measure. If you're comparing at this level, ENVE offers a comparable premium build, though hub integration varies. For those already invested in the Reynolds ecosystem, the Reynolds road wheel range uses similar rim technology if you're thinking about a paired setup.
The honest trade-off: Blacklabel costs significantly more. If your gravel riding is predominantly smooth lanes with occasional dirt detours, the ATR gives you most of the performance at a fraction of the premium. If you're regularly on technical, rocky tracks - or if hub engagement on loose climbs is a genuine frustration - Blacklabel earns its price.
Keeping Reynolds Wheels Alive in UK Conditions
British gravel riding is hard on wheels. Chalk downs trails throw up flint edges that can crack lesser carbon rims; winter bridleways coat everything in abrasive grit; and wet freehub pawls and bearings that aren't well-sealed don't last a full season without attention. Reynolds' MR5 and CR3 layups are built with impact resistance as a design priority, not an afterthought - that's not marketing language, it's a structural choice reflected in the carbon fiber rim wall thickness and fibre orientation.
That said, no carbon wheel is immune to a direct flint strike at speed. Run your gravel tyres tubeless - which Reynolds makes easy given every wheelset ships with tape and valves pre-installed - and keep pressures appropriate for the surface. A 40mm tyre at 28psi over chalk downland absorbs far more than the same tyre at 50psi, and the risk of a rim-damaging pinch strike drops substantially.
Hub maintenance is the other side of UK durability. After a wet winter ride - particularly one involving flooded bridleways or peaty moorland crossings - it's worth pulling the rear wheel, removing the freehub body, and cleaning the pawls and ratchet surfaces before the grit dries and scores the mechanism. TR3 hubs are straightforward to service with basic tools; i9 hubs require slightly more care but reward it with a longer service life. Bearing replacement on either is achievable at home with a bearing press. Keep a tube of appropriate grease in the workshop and do it before you need to, not after the freehub starts skipping. A new wheelset is also a natural moment to check your brake setup - our Reynolds brake components section is worth a look if you're doing a full overhaul at the same time.
Reynolds Gravel Wheels FAQs
Are Reynolds gravel wheels tubeless ready?
Yes. All current Reynolds gravel wheels leave the factory tubeless-ready - rim tape is pre-installed and tubeless valves are included in the box. You'll still need sealant and a compatible ETRTO tyre, but the wheel itself is set up for a tubeless conversion from the start.
What is the difference between Reynolds ATR and Blacklabel gravel wheels?
ATR wheels use Reynolds' CR3 carbon layup and in-house TR3 hubs - durable, reliable, and well-priced for high-mileage gravel riding. Blacklabel steps up to MR5 carbon for better impact resistance and lower weight, paired with Industry Nine Torch or Hydra hubs for significantly faster freehub engagement on technical climbs.
Do Reynolds carbon wheels come with a lifetime warranty?
Yes. Reynolds backs their carbon rims with a lifetime warranty to the original owner covering manufacturing defects. They also offer a crash replacement policy for impact damage sustained while riding - pricing for replacement is discounted compared to buying new, which is worth factoring in if you're riding demanding UK trails regularly.
