Reserve MTB Wheels

Axle Standards, Rotor Mounts, and Freehub Bodies

Before you get drawn into rim widths and carbon layups, get the spec sheet sorted. Reserve MTB wheels cover the full spread of modern axle standards. Most trail and enduro builds run Boost spacing - 15x110mm front, 12x148mm rear - which is the default across the range. If you're running a Super Boost-specific frame (common on longer-travel Santa Cruz and Specialized bikes), Reserve also offers Super Boost 12x157mm rear options, so check your dropout spec before you order.

Rotor mounting comes in both 6-bolt and Centerlock flavours depending on the hub spec. DT Swiss hubs typically offer Centerlock as standard; Industry Nine builds often run 6-bolt. Neither is technically superior - it comes down to what your brake callipers and existing rotors use. Freehub bodies are another variable worth confirming: SRAM XD for 10-tooth cogs, Shimano Microspline for 12-speed Shimano drivetrains, or standard HG for older setups. Reserve and its hub partners cover all three, but not every wheel model ships with every option, so double-check compatibility at the point of purchase.

If you're after the carbon hoop alone to lace to your own hub choice, that's a different conversation - head straight to Reserve Rims where you'll find the bare hoops without the complete wheel build premium.

Breaking Down the Reserve Range: SL, HD, and DH

Reserve's model numbers tell you two things: the internal rim width in millimetres, and the intended use. Get this choice wrong and you're either carrying unnecessary weight on a cross-country loop or underbuilding for a full-on enduro season.

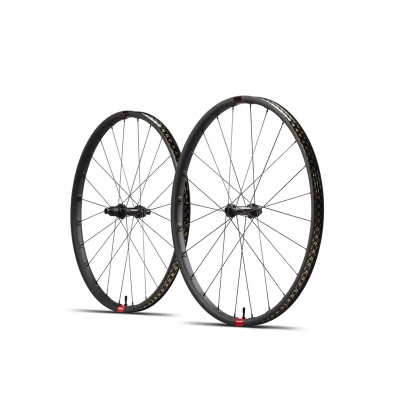

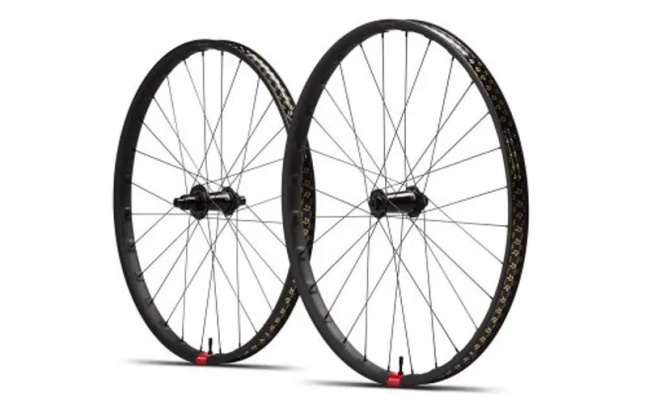

The 30|SL (Super Light) sits at the lighter end. A 30mm internal rim width suits 2.2 - 2.4" tyres well, and the SL layup prioritises low rotational weight without sacrificing the rim's core impact resistance. This is the wheel for riders chasing fast, flowy singletrack or competitive XC - think Surrey Hills race laps or a Dalby Forest flow trail where you want the bike to feel nimble and quick to accelerate. Spoke counts are typically lower to keep weight down.

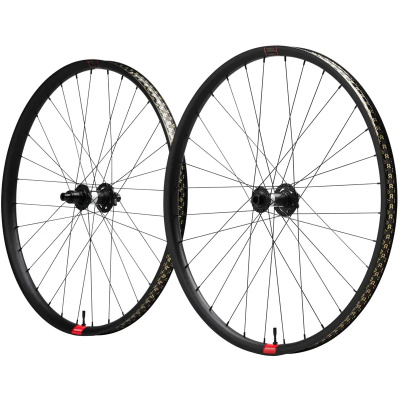

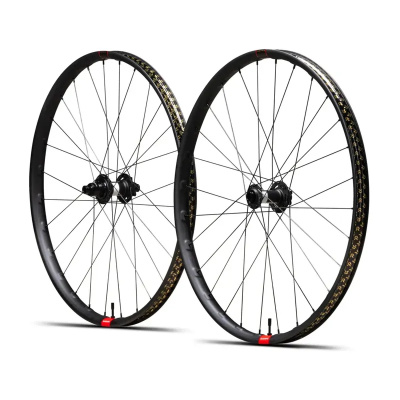

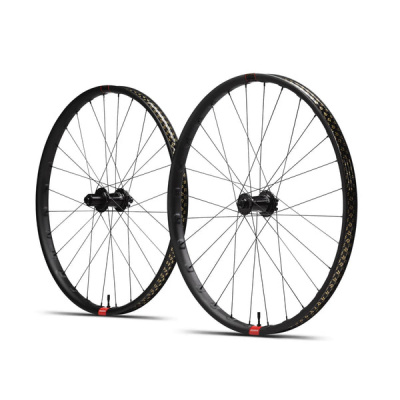

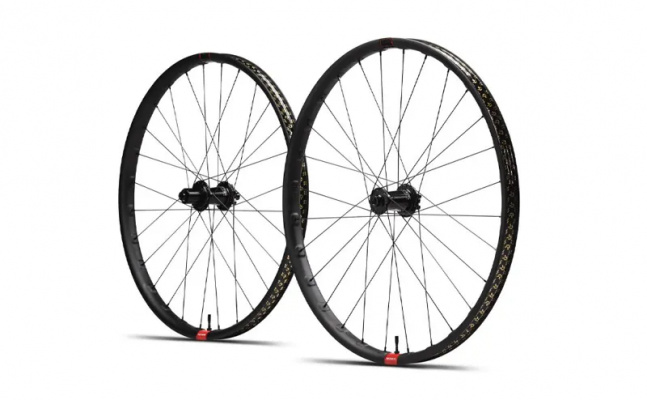

Step up to the 30|HD (Heavy Duty) and you're in all-mountain and enduro territory. Same 30mm internal width, but a reinforced carbon layup that handles repeated square-edge hits without building up micro-fractures over time. Spoke counts go up, the rim wall gets beefier, and the overall build is tuned for riders who spend their weekends on the Tweed Valley or Afan trails rather than a smooth XC circuit. The HD is arguably the most versatile option in the range - capable enough for enduro race days, composed enough for regular trail riding.

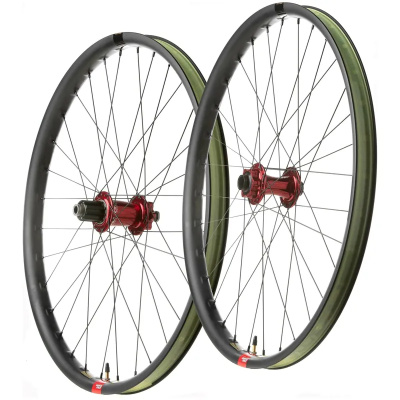

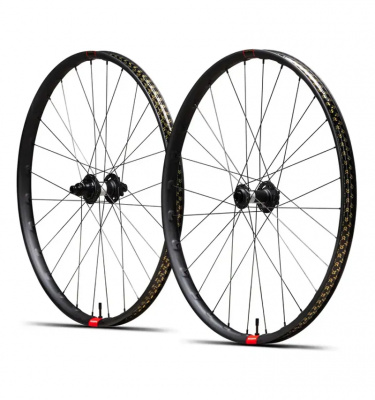

At the top of the stack sits the 31|DH, built specifically for downhill. The wider 31mm internal width supports high-volume DH tyres run at low pressures without the bead squirming under cornering loads, and the layup is heavy-duty by any measure. If you're lapping a bike park or shuttling rather than pedalling up, this is the one. It's not a wheel you'd want to push up a Welsh mountain; it is a wheel that'll handle the descent without drama.

Compared to rivals like ENVE MTB Wheels or Hope MTB Wheels, Reserve sits in a similar price bracket but leans harder on the warranty proposition and the compliant-rather-than-stiff carbon philosophy. DT Swiss MTB Wheels offer comparable hub reliability but with alloy rim options at the lower end - a different trade-off if weight isn't the priority.

Surviving UK Grit: Servicing and Long-Term Reliability

British trails aren't kind to bearings. Gritty water from a Lake District descent or a muddy Chilterns bridleway gets into everything, and hubs that need specialist tools or proprietary parts become a proper pain come February. Reserve's choice of DT Swiss and Industry Nine Hydra hubs isn't accidental - both are widely serviced by UK mechanics and have readily available spare parts.

DT Swiss hubs use the Star Ratchet engagement system. It's modular, so you can swap the ratchet ring for a higher-engagement version (from 18 to 36 or 54 points of engagement) without replacing the whole hub. Bearings are standard sizes, widely stocked, and straightforward to press in and out. Industry Nine's pawl-based system in the Hydra hub runs six independent pawls for near-instant engagement - useful on technical climbs where a fraction of a second of freewheel cost you momentum. Both systems handle prolonged wet riding well, though both benefit from a fresh grease pack at the start of each season.

The externally reinforced spoke holes are worth calling out here. Most carbon rims require internal nipples during the build, which makes future spoke replacements genuinely awkward - you're fishing around inside a sealed rim. Reserve's external nipple design means a trailside spoke replacement or a workshop true-up is the same job it would be on an alloy wheel. Standard J-bend spokes throughout, no proprietary lengths to source. That's a real-world advantage when you're staring at a buckled wheel the night before a ride.

For a proper tubeless setup that holds up through a winter of abuse, these wheels pair well with Reserve Tubeless Valves - the valve core design matches the rim's valve hole tolerances cleanly and reduces the chance of sealant pooling around the base. Run a quality sealant, check it every couple of months, and the low-pressure grip you need on off-camber roots or wet rock slabs stays consistent without the bead burping off mid-corner.

If your riding leans more towards gravel or mixed-surface adventure, it's worth knowing Reserve also makes a strong case in that category - Reserve Gravel Wheels carry across the same design principles, so you're not starting from scratch when you build a second setup.
