Renthal Pedals

Fitment, Axle Standards and What Clears What

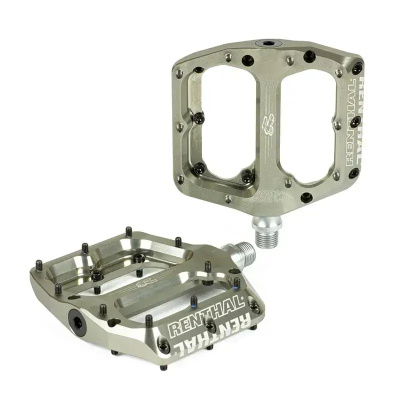

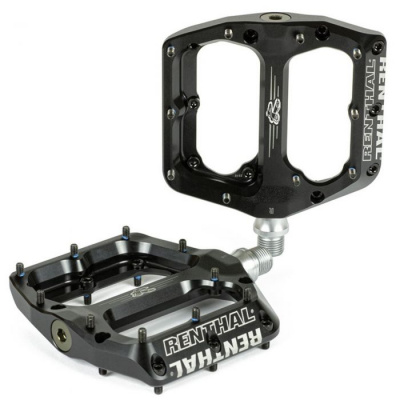

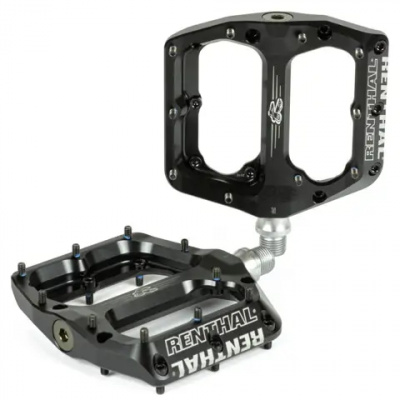

Every Renthal Revo-F uses a standard 9/16 thread chromoly axle, so they fit all modern MTB cranks without adapters or faff. That covers everything from budget trail builds to high-end carbon arms - if it's a current MTB crank, you're fine. The platform measures 104mm long by 100mm wide, which gives you a genuinely supportive footprint without feeling like you're standing on dinner plates. Q-factor - the outward offset of the pedal platform from the crank arm - sits in a neutral position that suits the majority of riders, though anyone with a particularly wide or narrow stance will want to factor that in before buying.

One practical thing worth knowing before you torque them down: if your cranks are wrapped in thick rubber crank boot protectors, check the spindle clears the boot cleanly once tightened. On some setups, a bulky boot can bind against the pedal spindle at full torque, creating a creak that's maddening to diagnose. Snug the pedal down, spin it, and confirm it moves freely before you head out. Thirty seconds in the garage saves an hour of head-scratching on the trail.

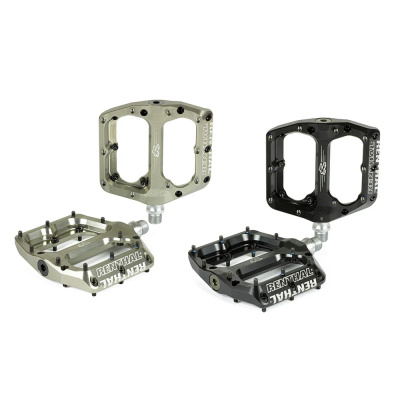

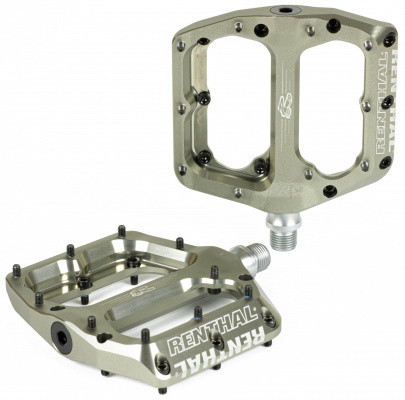

Inside the Revo-F: How the Engineering Actually Works

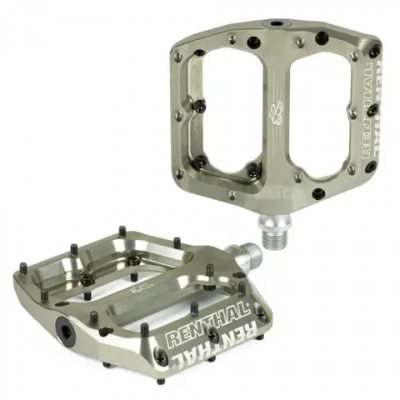

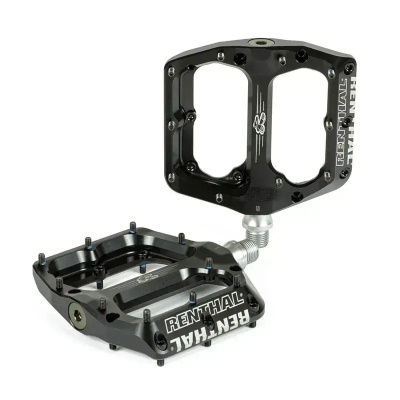

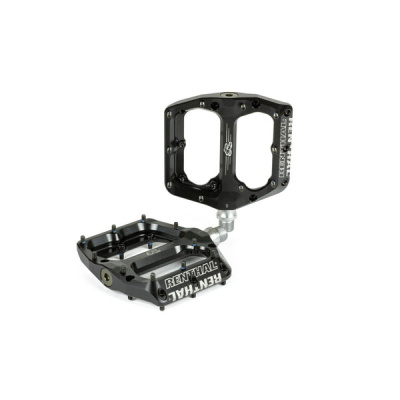

The Renthal Revo-F starts life as a forged aluminium billet before the CNC machine gets near it. That sequencing matters. Forging aligns the grain structure of the metal, which means the finished body resists impact and flex far better than a purely machined or cast equivalent - think of it like the difference between splitting wood along the grain versus across it. The CNC work then adds precision: the concave dish, the pin holes, the bearing seats. You end up with a body that's both stiff and resistant to the kind of rock strikes that leave cheaper pedals with cracked corners.

The concave profile is meaningful rather than cosmetic. That deep dish pulls your shoe into the platform under load, which matters most when you're braking hard into a loose corner and your feet want to slide forward. It works alongside the tunable pin system, which is genuinely one of the more thoughtful details on a flat pedal at this level. Renthal includes washers that sit beneath each pin head, letting you dial pin protrusion from a conservative 2.5mm up to an aggressive 5.5mm. Running a stiff-soled enduro shoe with shallow tread? Drop to the lower setting. Softer rubber with deeper lugs? Wind the pins out and let them bite. It's the kind of adjustment that sounds minor until you've stood on a pedal that didn't suit your shoe and felt it.

Compared with options like DMR pedals or Burgtec pedals, the Revo-F sits at the premium end of the best flat pedals for UK enduro conversation - not because of branding, but because the rebuild and tune options are genuinely broader. If you want a pedal you can service yourself rather than replace every couple of seasons, that distinction is worth paying for.

Keeping Them Running Through a UK Winter

The internal spec is where Renthal clearly thought about real-world use rather than just spec sheets. Three sealed cartridge bearings per pedal, combined with an extra-wide IGUS bushing, handle the spindle loads that a standard two-bearing setup starts to struggle with after repeated hard landings. The IGUS material is self-lubricating and grit-resistant - relevant when you're riding Peak District grit, which works into every moving part like grinding paste given half a chance. Wet clay on a Scottish descent behaves differently but does the same long-term damage; the triple-sealed arrangement slows that process considerably.

Servicing is straightforward if you stay on top of it. A 50-hour interval is a reasonable guide for cleaning and re-greasing the spindle - more frequently if you're riding through particularly filthy conditions every weekend. When you pull the spindle, check the IGUS bushing for wear and replace it if there's any lateral play. On Renthal pedal pin replacement: after you've adjusted pin height using the washer system, put a small dab of blue Loctite on each pin thread before reinstalling. Pins vibrate loose on rough ground, and Loctite at that torque level still allows removal with an Allen key when you need to make further adjustments. It's a five-minute job that stops a recurring annoyance. For a complete contact-point overhaul, Renthal grips and Renthal handlebars pair naturally if you're building a cohesive setup.

If the Renthal spec is more than your budget wants to stretch to right now, Hope pedals and Deity pedals are worth a look at slightly different price points - both are rebuildable and well-suited to UK conditions. But if longevity and tunability are the priority, the Revo-F is hard to argue against. Pair them with Renthal stems if you're going the full cockpit route.
