Fazua Frame Bags

Fitting Fazua Batteries to Your Frame: What Actually Works

The Energy 250X and Energy 430 batteries are cylindrical, and that shape is the crux of the compatibility issue. The 430 used in the Ride 60 system is both longer and wider in girth than the older 250X from the Ride 50, so a bag sized for one won't necessarily work for the other - check the listed dimensions carefully before buying. Standard frame bags are designed around flat or irregular objects; they're not built to hold a rigid cylinder under load, and the zip teeth take the strain when the contents are dense and heavy. The result is a bag that looks fine at the trailhead and fails somewhere on the North Downs.

Before you commit to any bag, measure your front triangle clearance properly. On full-suspension e-MTBs, the shock and linkage can seriously limit where a downtube bag will sit - you might find the bag fouls the shock body on compression, or that top tube mounting is the only viable option. Neither is ideal without checking first. A tape measure and five minutes in the garage saves a frustrating return. If your front triangle is genuinely too cramped for any bag solution, it's worth looking at Fazua e-bike batteries and alternative carrying strategies before you buy.

Dedicated Bags vs. Universal Options: Where the Money Goes

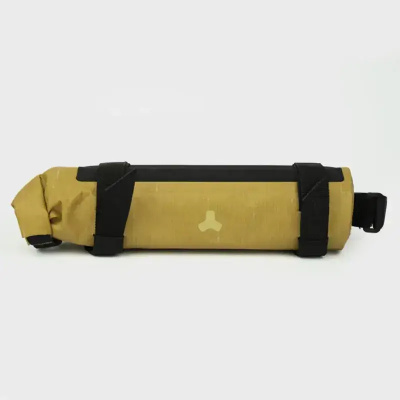

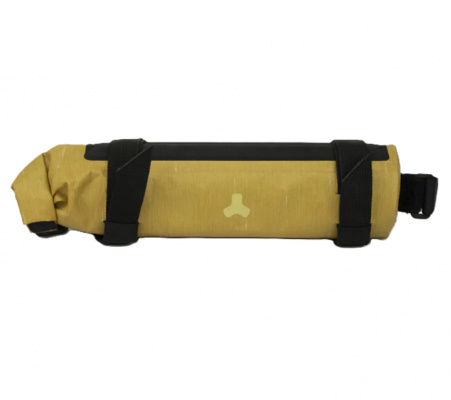

Fazua's dedicated battery bags - several produced through a collaboration with Evoc - cost more than a generic frame bag. That premium buys you specific things, not just branding. The cylindrical sleeve is tailored to the battery's exact profile, which eliminates internal movement. Hypalon velcro straps resist stretching under sustained load, which cheaper alternatives simply don't - ordinary webbing creeps, and a creeping strap means a swinging battery. The non-slip silicone backing grips your frame rather than letting the whole assembly migrate downward on a long climb.

Neoprene insulation is the other meaningful differentiator. Cold weather reduces lithium cell efficiency noticeably; a neoprene-lined bag slows that heat loss, which is genuinely useful on a January ride in the Scottish Borders where ambient temperatures drop fast. It won't make a cold battery perform like a warm one, but it keeps the cells in a more reasonable operating range for longer. Universal bags from brands like Apidura or Ortlieb offer excellent waterproofing and build quality, but they're not shaped for this job - they're a workaround rather than a solution. If your frame lacks the triangle space for any bag, Fazua e-bike chargers and a mid-ride café stop might be a more practical answer than forcing the fit.

Riders who genuinely can't fit a frame bag - perhaps due to a compact e-MTB front triangle - should also consider pannier racks as an alternative storage route, keeping the battery accessible without compromising frame clearance.

Keeping the Bag and Your Frame in Good Shape on UK Rides

A rigid, 1.4kg battery strapped to your frame creates friction points wherever the bag contacts the paintwork. UK grit is abrasive; it gets between the bag backing and the frame and works like sandpaper over time. Fit helicopter tape or frame protection film beneath the bag's contact patches before the first ride - not after you've noticed the wear. It takes ten minutes and saves a respray. Altura frame bags and other universal options often come with foam padding for this reason, but dedicated Fazua bags with silicone backing still benefit from an extra layer of protection on carbon frames where any surface damage is a bigger concern.

Water-resistant zips - the kind with tight-woven teeth and a rubber seal on the puller - are what you want on a bag that lives in UK mud. After a wet ride in the Peak District or a sloppy Welsh trail centre session, grit works into the zip teeth and dries hard. Clean the zip with a soft brush and water before it sets, then apply a silicone zip lubricant to the teeth. Avoid WD-40; it strips the water-resistant coating from the seal over time. Do this every few rides and the zip will last the life of the bag. Neglect it and you'll be forcing a jammed pull on a cold morning, which is how zips split.

Check the velcro strap attachment points periodically too. The Hypalon straps on the Evoc-collaboration bags are robust, but the anchor points on the bag body can work loose if the bag is repeatedly removed and refitted - common if you're swapping the spare battery in and out frequently. A quick visual check before each ride costs nothing. You can also browse the broader Evoc frame bag range if you want to compare construction details across their lineup, and check Fazua e-bike displays to round out your system setup.
