Easton Dropper Posts

Will an Easton Dropper Fit Your Frame?

The short answer for most modern gravel riders: probably yes. Easton's dropper range is built around a 27.2mm diameter, which is the standard seat tube size on the vast majority of gravel and cyclocross frames currently on the market. That said, always double-check with calipers before you buy - some older steel frames run 27.0mm or 28.6mm, and a fraction of a millimetre is enough to cause grief.

Beyond diameter, the critical requirement is a frame drilled for internal cable routing through the seat tube. You need a clean exit hole at the base of the tube so the cable housing can run from the post's bottom-mount cable actuation point up through the frame to your remote lever. If your frame has no such port, a traditional rigid seatpost is your only option - in which case, our Easton seatposts page is a better starting point.

Assuming your frame is routed correctly, seat tube insertion depth is the next thing to pin down. Every dropper post has a minimum insertion mark - drop below it and you risk damaging the post's internals or the frame. Measure your available seat tube depth from the saddle clamp to the bottom bracket shell and compare it against the post's published minimum insertion requirement before committing.

On the lever side, Easton droppers use a standard cable actuator with conventional cable pull ratios, so remote lever compatibility is broad. Shimano GRX dropper levers pair cleanly, as do most aftermarket drop-bar remotes from brands like Wolf Tooth or Jtek. You're not locked into a proprietary ecosystem, which is genuinely useful when you're building up a bike piece by piece.

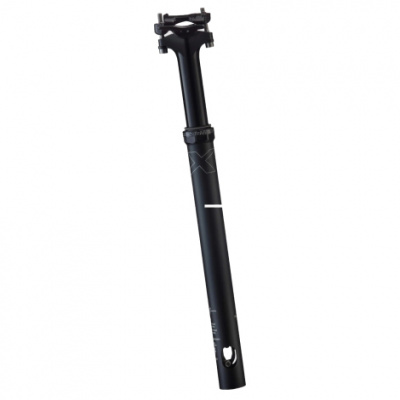

The EA90 AX: Travel Options and What They Mean in Practice

Easton's gravel dropper story centres on the EA90 AX, and the lineup is deliberately tight. You're choosing between 50mm travel and 70mm travel - that's it. No hydraulic variants, no wireless options. For some riders that's a limitation; for most gravel cyclists, it's clarity.

The 50mm version is the natural fit for cyclocross. CX courses rarely demand dramatic saddle drops - you need enough clearance to dismount cleanly and get back on without snagging - and 50mm handles that comfortably while keeping the post compact enough to suit shorter seat tubes. It's also the lighter option, which counts when you're already watching grams on a race build.

Step up to 70mm and you're catering to riders who push into singletrack, rocky descents, or the kind of route that starts on gravel and ends somewhere much more interesting. Seventy millimetres gives you a more meaningful weight shift on steeper ground. Think Dartmoor bridleways or the more aggressive gravel loops around the Brecon Beacons - rides where a modest drop just doesn't feel like enough when the gradient bites.

Both versions use alloy construction throughout, which adds a small but real weight penalty over a rigid carbon post. A quality carbon rigid post might save you 100 - 150g, but it gives you nothing back in function. The trade-off is straightforward: if you descend with confidence on technical ground, the dropper earns its grams. If your gravel riding is mostly smooth and fast, a rigid post makes more sense.

The DOSS-style mechanical locking mechanism used in the EA90 AX keeps actuation predictable and the internals serviceable. Mechanical cartridge systems like this are easier to bleed air from, easier to rebuild, and less fussy about temperature than hydraulic posts - useful context for UK winters where your bike spends half its life cold and damp. Compared to the more complex internals you'd find on RockShox dropper posts or Fox dropper posts, the Easton's mechanical approach trades some of the buttery feel for straightforward longevity. For a gravel-specific post that sees mixed use rather than daily trail abuse, that's a reasonable call.

If you want to compare a budget-friendly cable-actuated alternative, Brand X dropper posts are worth a look - they cover similar travel territory at a lower entry point, though without the EA90 AX's optimised 27.2mm chassis refinement. For a more premium short-travel option, PNW Components dropper posts have built a strong following in the gravel community and are worth comparing directly.

Keeping It Running Through UK Winter Conditions

A dropper post on a gravel bike is a different maintenance proposition to the same post on a trail bike. You're not necessarily riding it harder, but the environments it sees - liquid mud from a Shropshire bridleway, road salt spray on a January commute, standing water pooled around the bottom bracket shell on a sodden Scottish loop - are quietly brutal on anything with a moving seal or a cable run.

The wiper seal at the top of the 27.2mm chassis is the first thing to look after. Wipe the stanchion clean after every wet ride - dried grit left on the post gets dragged back past the seal on the next drop, accelerating wear from the inside. A light application of suspension spray or PTFE lubricant on the stanchion keeps things moving and gives the seal something to work with rather than against.

The cable run deserves equal attention. Because internal cable routing often passes through or near the bottom bracket shell, water has a habit of tracking along the housing and sitting in the lowest point of the run. Over a season, this turns a crisp actuation into a sticky, reluctant one. Using sealed cable housing - Shimano SP41 is the standard recommendation, Jagwire's sealed gravel-spec housing is another solid option - dramatically reduces water ingress. Check the cable tension at the lever end every couple of months; a small amount of barrel adjuster correction is normal as housing beds in and compresses with use.

If actuation starts feeling sluggish despite clean cable runs, strip the post back to the actuator end, clean the cable anchor point, and check for corrosion on the cable itself - road salt works quickly on bare steel wire. Replacing the inner cable annually is cheap insurance on a bike that sees regular winter use. Pair the post with Easton handlebars and Easton bar tape if you're building a cohesive gravel cockpit - consistent contact points make a real difference to how the bike feels as a whole, not just how it descends.
