E Thirteen 12 Speed Cassettes
E Thirteen 12 speed cassettes do something no other major brand has managed quite as neatly: squeeze a 556% gear range out of a 9-50T block without bolting on a dinner-plate large cog that sends your B-tension screw into a crisis. The secret is the proprietary 9T smallest cog - tighter than anything SRAM or Shimano offer natively - which buys you all that range at the top end without the cassette growing any bigger at the bottom. That matters on a long Welsh moorland grind as much as it does on a tight Gnar-riddled enduro stage.
The two models you'll see most often are the Helix R and the Helix Plus, and both share a design feature that mechanics genuinely appreciate: a two-piece interlocking construction that lets you swap the alloy climbing cluster independently from the steel block. Given how quickly gritty Peak District and Scottish winter riding chews through aluminium cogs, that's a real cost saver over a full cassette replacement. You're also not locked into one drivetrain ecosystem - the Helix cross-compatibility system is engineered to shift cleanly with both SRAM Eagle and Shimano 12-speed derailleurs, which is rarer than the marketing suggests.
Prices and availability can change quickly. Delivery charges are not always included in listed prices.
Final price, stock status and delivery terms are set by retailer. We may receive a commission on purchases made.
Freehub Standards and What Fits What
Before you add one to your basket, sort the freehub situation. Most E Thirteen 12-speed cassettes rely on a SRAM XD driver to seat that 9T cog properly - standard HG freehub bodies simply don't have the engagement diameter to support it. If your wheel already runs XD, you're good to go. If you're on a newer Shimano hub, e*thirteen does produce Microspline variants, so check the product listing carefully rather than assuming.
The Helix cross-compatibility feature is worth flagging again here, because it genuinely changes the upgrade calculus. You can run an E Thirteen cassette behind a Shimano XT derailleur or a SRAM Eagle setup without any dark arts cable tension fiddling - the cassette's ramp and tooth profiles are shaped to work with either chain pitch. That said, going up to a 9-52T or 9-50T range does demand a chain length check and a careful look at your B-tension screw. If the derailleur cage is too close to the largest cog under load, you'll get grinding rather than smooth climbing, and that's entirely avoidable with five minutes before the ride. Compared to SRAM 12-speed cassettes or Shimano 12-speed cassettes, e*thirteen's cross-brand flexibility is a genuine differentiator rather than a spec-sheet claim.
Helix R vs Helix Plus: Which One's for You

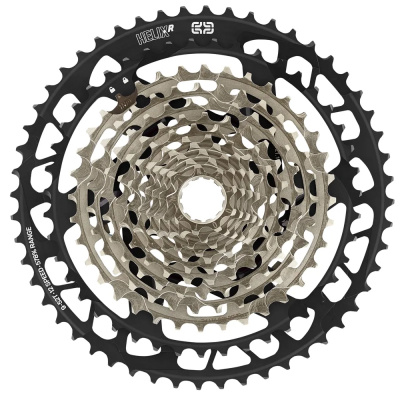

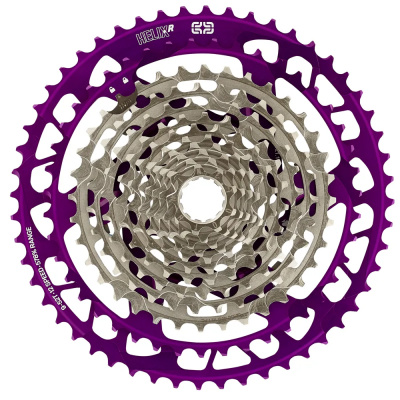

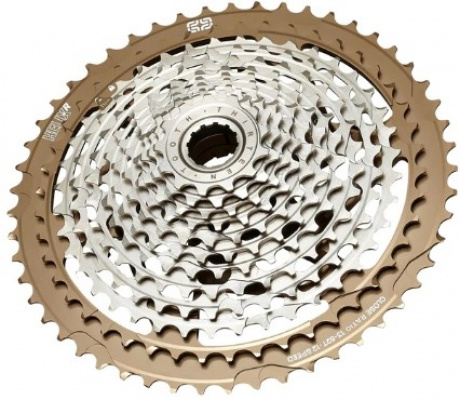

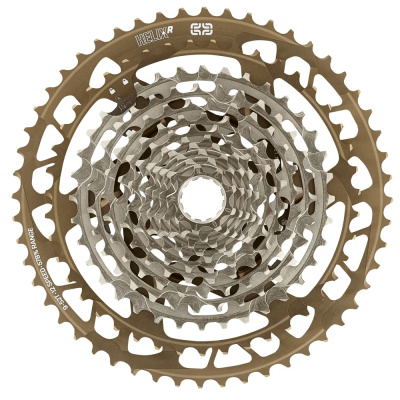

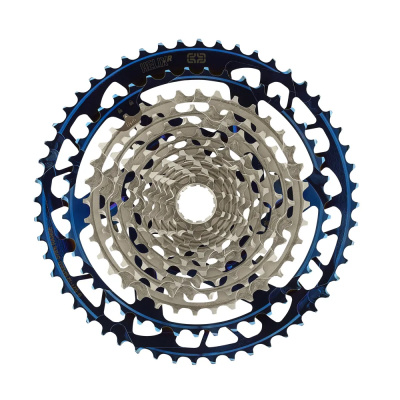

The Helix R sits at the top of the range. It's built from CNC machined steel on the lower cogs and a lightweight aluminum cog cluster for the larger climbing gears, and it comes in those vivid anodised colours that look sharp until the Pennine mud gets involved. At a 9-50T or 9-52T spread, it's aimed squarely at enduro racers and weight-conscious trail riders who want every gram accounted for. The machining tolerances are tight, shift feel is precise, and the gear range means you're almost certainly covered from the steepest hike-a-bike pitches to fast fireroad spins.

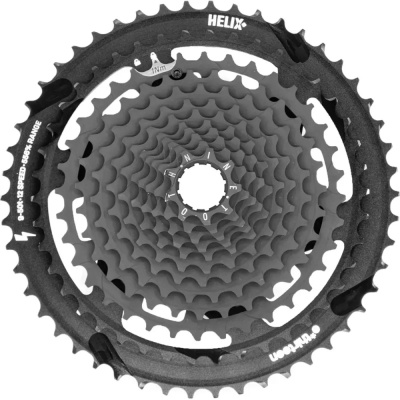

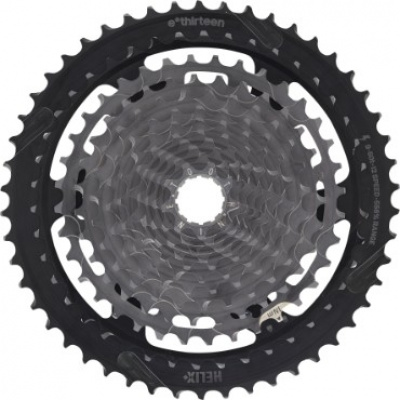

The Helix Plus trades some of that weight saving for a more robust, predominantly steel build. It's heavier - not dramatically, but you'll notice it on the scales. What you gain is durability that holds up better through a proper UK winter without the aluminium cogs wearing as fast. For a rider doing back-to-back soggy Lake District weekends from October through February, that's worth the trade. If you're comparing across brands, Garbaruk 12-speed cassettes occupy a similar lightweight-CNC niche, while Sunrace 12-speed cassettes compete more directly with the Plus on value-for-durability grounds. Pairing either E Thirteen cassette with a matched e*thirteen chainring is worth considering for optimised ramp geometry, though it's not mandatory.
Keeping It Running Through UK Winters
Here's where the two-piece interlocking design pays for itself. The cassette splits into two sections - the steel block covering the smaller sprockets, and the alloy cluster handling the big climbing cogs. The alloy section is what wears fastest, particularly if you're regularly pushing through Peak District grit or the sandy loam sections of the Surrey Hills. Rather than replacing the whole cassette, you can source just the alloy cluster. Over a season or two, that adds up to a meaningful saving.
The one thing to do properly at installation is grease the interface between the two sections. Use a quality PTFE or copper-based grease on the mating surfaces - skip this step and high-torque bog-riding produces a creak that'll have you checking every other bolt on the bike first. It's a quick job that prevents a persistent annoyance. Also worth pairing with a fresh chain; worn chains accelerate cog wear regardless of how well the cassette is built. If you're speccing the whole drivetrain from scratch, e*thirteen's chainsets and cranks and hubs are designed to play nicely together, which simplifies cross-compatibility decisions considerably. The mud-shedding profiles between cogs are well thought out too - spacing is generous enough that winter slop clears rather than packing.
One thing to keep realistic: the aluminium cogs on the Helix R will wear faster than a full-steel setup in abrasive conditions. That's the weight-versus-longevity trade-off, and the modular replacement system exists precisely because e*thirteen acknowledges it. Go in knowing you'll replace the alloy cluster periodically rather than expecting it to last as long as the steel section.
E Thirteen 12 Speed Cassettes FAQs
Are E Thirteen cassettes compatible with SRAM Eagle and Shimano 12-speed?
Yes. The Helix series is built around e*thirteen's cross-compatibility engineering, meaning the ramp and tooth profiles work properly with both SRAM Eagle and Shimano 12-speed derailleurs and chains. You don't need to run a matching brand drivetrain - it's a genuinely flexible upgrade rather than a marketing stretch.
Do I need a specific freehub body for an E Thirteen 12-speed cassette?
For most E Thirteen 12-speed cassettes, yes - you'll need a SRAM XD driver to accommodate the 9T smallest cog. If you're running a Shimano hub, e*thirteen produces Microspline variants for those, so check the specific listing before buying rather than assuming one version fits all.
Can I replace individual cogs on an E Thirteen cassette?
Not individual cogs, but the two-piece design means you can replace the aluminium cluster (the larger climbing cogs that wear fastest) separately from the steel block. It's a smarter system than most - you're not binning the whole cassette when only the alloy section is tired. Still running an older setup? Check out our <a href="https://bikesy.co.uk/b/e+thirteen/11+speed+cassettes/">E Thirteen 11-speed cassettes</a> for legacy drivetrain upgrades.
