Campagnolo 13 Speed Cassettes

The N3W Standard and What It Means for Your Wheel Build

Let's be direct: Campagnolo 13-speed cassettes will not fit a standard freehub. Not Shimano HG, not SRAM XD, not SRAM XDR, and not older Campagnolo bodies either. They require Campagnolo's proprietary N3W (Next 3 Ways) freehub body, full stop. The N3W body is physically shorter than conventional designs, and that shorter profile is precisely what makes the 9-tooth starting sprocket possible - there's simply no way to seat a 9T cog securely on a longer body without the geometry going wrong.

If your current wheels aren't N3W-compatible, you're looking at a hub swap or a new rear wheel before any of this makes sense. Check the freehub splines carefully; it's a common trap for riders converting from a Shimano or SRAM setup who assume cassette swaps are straightforward. They're not in this case. You'll also need a dedicated 13-speed cassette lockring - the one from your old groupset won't thread correctly. For anyone working through a hub conversion or building fresh wheels, our Campagnolo tools category covers the lockring tool you'll need, and it's worth having the right one before you start rather than improvising with something close.

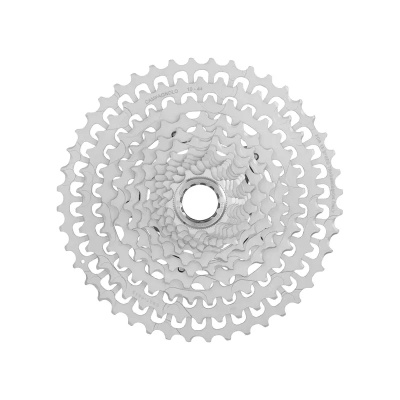

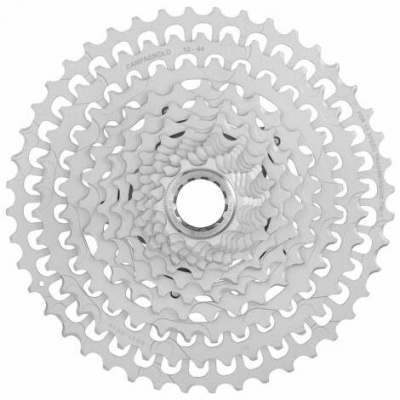

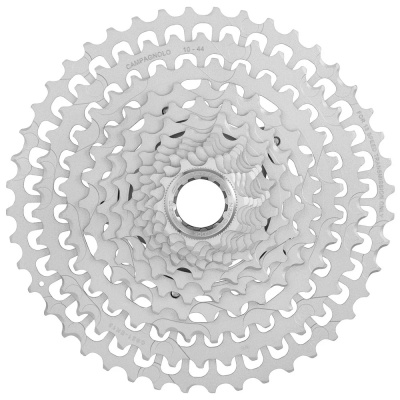

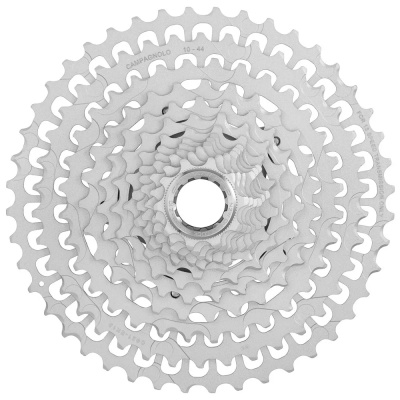

The Campagnolo Ekar 13 speed cassette is designed as a closed system within the Ekar 1x13 groupset. That exclusivity is a genuine trade-off compared to more universal standards, but it's the price of the engineering that makes 13 sprockets work at these tolerances.

Breaking Down the Three Ekar Cassette Options

Campagnolo gives you three distinct gear range options, and choosing the right one matters more than most riders expect. These aren't just cosmetic differences - each ratio changes how the bike feels on different ground.

• 9-36T (Endurance): This is the road-biased option. The steps between sprockets are remarkably small, which keeps your cadence smooth on fast, paved or hardpacked all-road routes. If your gravel riding is mostly crushed-stone paths, canal towpaths, and light gravel with the odd steep tarmac climb, the 9-36T keeps things feeling almost road-like in its precision. It's not built for hauling a loaded bike up a Welsh mountain pass, though - the 36T low gear will feel inadequate when the gradient bites hard and the surface turns loose.
• 9-42T (Gravel Race): The one most Ekar riders end up on. The 9T small sprocket still gives you speed when you need it, and the 42T opens up a genuinely usable low gear for punchy, rolling gravel stages. Fast gravel sportives, XC-ish loop rides in the Chilterns or Cotswolds - this ratio sits well there. The jumps between sprockets are a touch wider than the 9-36T, but across 13 speeds, you barely notice.

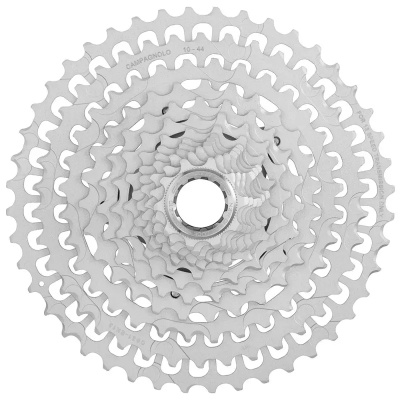

• 10-44T (Gravel Adventure): You give up the 9T here, which costs you a touch of top-end, but you gain a 44T bailout gear that's a different proposition entirely on steep, muddy UK bridleways. If your riding involves loaded bikepacking, technical bridleway climbing in the Dales or Scottish Borders, or the kind of steep, slick descents where you want every mechanical advantage going, this is the cassette. The 2-piece block design - steel core for the small, high-torque sprockets, aluminium alloy spider carrying the larger cogs - keeps the weight from spiralling despite the bigger range.

Worth comparing: if you're considering alternatives, SRAM 13 speed cassettes operate on a different ecosystem entirely (SRAM's own Transmission standard), so cross-compatibility between the two doesn't exist. The Ekar system is its own world.

The 13 speed gravel cassette Campagnolo builds around the Ekar groupset also pairs with the 1x13-specific sprocket spacing, which requires the proprietary C13 chain. More on that below.

UK Grit, Wet Lanes, and Making Your Cassette Last

Here's the honest conversation about longevity: 13-speed sprocket spacing is microscopic. The gaps between teeth are narrower than anything you'd have run on a 10 or 11-speed setup, which means a worn chain doesn't just skip - it accelerates wear on those expensive small cogs at a frightening rate. The 9T and 10T sprockets, taking the most torque under power, are the first to go, and replacing them isn't cheap.

The nickel-chrome surface finish Campagnolo applies across the Ekar cassette does meaningful work here. It resists the surface corrosion that sets in fast on wet UK rides, particularly through winter when road and bridleway grit gets everywhere. But the finish isn't a substitute for chain management. Replace your chain at 0.5% wear - not the 0.75% figure you might have used on older groupsets. That extra margin matters when sprocket spacing is this tight. A chain checker is a small investment against a cassette replacement.

You'll also want to think about what lubricant you're running. UK riding through autumn and winter throws abrasive grit into the drivetrain constantly, and a wet lube that traps that grit will grind through a 13-speed chain faster than you'd expect. A waxed or semi-dry lube, reapplied regularly, keeps the contamination lower. Check our range of Campagnolo 13 speed chains for the correct C13 chain - and pick up a chain checker while you're there. The Campagnolo C13 is the only chain designed for the Ekar's ultra-narrow sprocket pitch; using an 11 or 12-speed chain causes jamming and can damage the cassette quickly.

Installation is also worth getting right first time. The N3W lockring requires a specific tool and a precise torque - check Campagnolo's spec before you start rather than going by feel. If you're doing the swap yourself, the correct lockring tool is non-negotiable; an improvised fit risks damaging the freehub body or leaving the cassette under-torqued, which causes creaking and accelerated wear.

One practical note: if you're running the Campagnolo N3W cassette through a full UK winter of mixed bridleway and road riding, pull the cassette off every few weeks, clean the freehub body, and check the sprocket faces for wear. Takes twenty minutes and adds months to the cassette's life. Best 13 speed cassette for gravel performance only stays best if you're maintaining the thing properly.
