M Part Gravel Wheels

Will They Fit Your Frame? Axle Standards, Rotor Mounts and Freehub Bodies

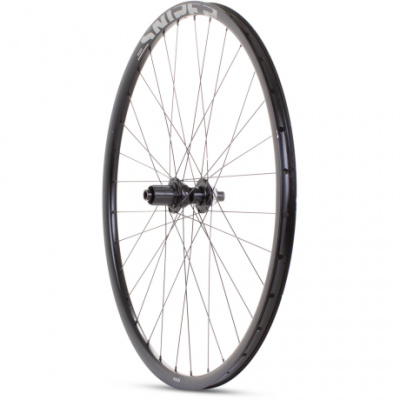

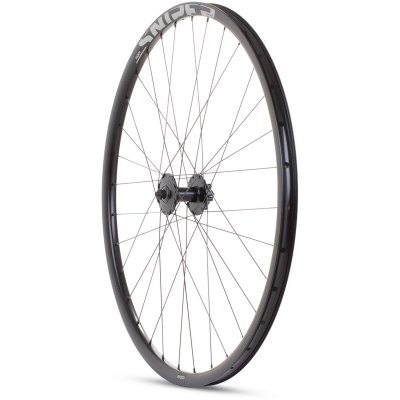

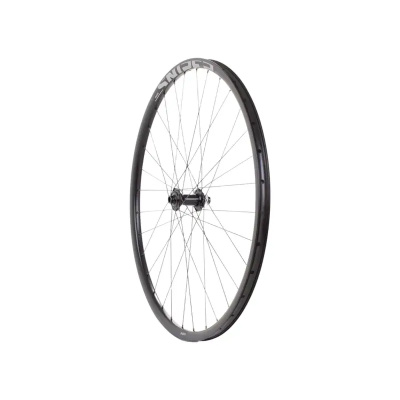

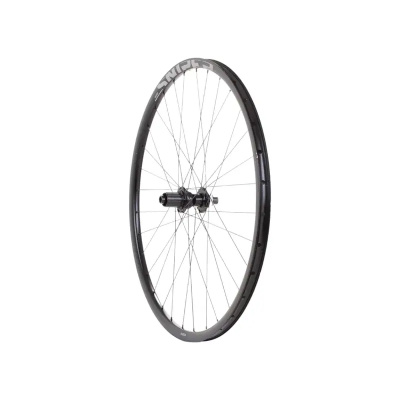

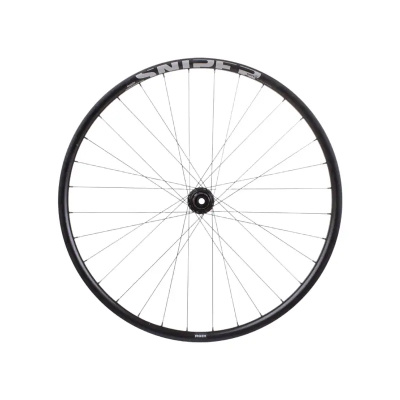

Getting compatibility right before you buy saves a lot of grief. M Part gravel wheels are available across the most common axle standards you'll encounter - modern 12x100mm front and 12x142mm rear thru-axle configurations cover the majority of disc-brake gravel and adventure frames built in the last several years. If your frame or fork uses the older 9mm quick release standard, there are options here too, so don't assume you need to upgrade your whole setup just to get a reliable replacement wheel.

On the rotor side, you'll find both 6-bolt and Centerlock disc interfaces across the range - worth double-checking against your existing rotors before ordering. Freehub compatibility is the other thing to confirm: most M Part gravel wheels use a Shimano HG freehub body as standard, which suits the vast majority of road and gravel groupsets. If you're running SRAM XDR for a 12-speed Eagle or Rival AXS setup, check the specific wheel's spec sheet carefully. For axle hardware, skewers, or hub internals, those sit outside the scope of wheels - you'll find what you need in our dedicated M Part skewers category.

If you're shopping alternatives at this level, Halo gravel wheels and Prime Cycling gravel wheels occupy similar value territory and are worth a look for comparison.

700c or 650b: Choosing the Right Diameter for How You Actually Ride

The 700c versus 650b question isn't really about fashion - it's about what you're asking the wheel to do. A 700c wheel rolls faster on packed gravel, tarmac connectors, and hardpack lanes. It keeps momentum better on longer, flatter efforts, which is why most riders doing mixed-surface sportives or fast gravel rides gravitate towards it. Think Lincolnshire byways or the gravel tracks of the Forest of Bowland - places where you want to keep speed without constantly fighting the surface.

A 650b wheel gives you a smaller diameter that allows a significantly higher-volume tyre in the same frame clearance. That extra air volume softens the hit from roots and rocks, and it opens the door to running tyres in the 47mm - 2.1-inch range that would never clear a 700c-optimised frame. If your riding leans towards technical, rooty singletrack or you're after a more planted feel on loose surfaces, 650b is the more considered choice. The internal rim width matters here too - a wider internal section (21mm or above) is needed to properly support those heftier tyre profiles and keep the bead seated securely when you drop pressures for grip.

One thing to bear in mind: M Part gravel wheels sit in the mixed-surface middle ground by design. If you find yourself almost exclusively on tarmac, our DT Swiss gravel wheels page is worth a browse, and for anything more aggressively off-road, you're better served looking at dedicated MTB-specific options. M Part's alloy rim extrusions are built for high-value practicality rather than the ultralight or high-load extremes of those categories.

Keeping M Part Wheels Running Through a UK Winter

UK riding conditions are a proper stress test for any wheelset. The abrasive grinding paste that builds up from winter grit and mud on bridleways works its way into bearing seals given half a chance, and M Part's double-sealed cartridge bearings are specifically designed to resist exactly this. That said, no bearing seal is invincible - worth pulling the wheels out and spinning the axles by hand every few weeks through winter to catch any roughness early, before it becomes a full bearing replacement job.

Spoke tension is the other thing that catches people out. New wheels - any brand - bed in over the first hundred miles or so, and spokes can lose a little tension as the lacing settles. Get them checked and trued at that point. The good news with M Part's standardised J-bend spoke lacing is that any competent local mechanic can do this without hunting for proprietary parts. A spoke key and a few minutes is all it takes to keep the wheel running true rather than developing a wobble that gradually worsens through the season.

Flinty chalk paths in the Chilterns or South Downs can be punishing on rim walls, particularly on loaded bikepacking setups. M Part's alloy extrusions are built with wall strength in mind for exactly this kind of impact, but running tyres at the appropriate pressure for the surface - slightly lower on loose or rocky ground - takes a lot of stress off the rim on sharp hits. If you're running tubeless, topping up sealant every two to three months keeps the self-sealing properties working properly through the wet season.

For maintenance supplies, M Part bearings and M Part tools are the obvious starting points for keeping things in order at home. Pair the wheels with M Part mudguards if you're commuting through winter - your bearings and drivetrain will thank you for it. A decent M Part track pump with a pressure gauge is also worth having on hand if you're setting up tubeless, so you can seat the bead reliably without heading to a garage.
