Wippermann 9 Speed Chains

What Fits What: Compatibility Across 9-Speed Drivetrains

Wippermann 9-speed chains are built to the standard 1/2" x 11/128" pitch with a pin length of 6.6mm - the same spec that governs every major 9-speed platform. That means full cross-compatibility with Shimano 9-speed groupsets, SRAM 9-speed cassettes and derailleurs, and Campagnolo 9-speed setups. Whether you're running a 1x9 gravel drivetrain or a 3x9 on a touring bike loaded up for a week in Scotland, the chain dimensions are the same throughout the Wippermann range.

Drivetrain wear is influenced as much by chain quality as by riding frequency, so it's worth knowing these chains aren't fussy about what they run on. Front derailleur, single ring, double chainring - the geometry works across all of them. The only variable is which tier of chain suits your riding best, and that's what the range is designed to answer.

Breaking Down the Range: From the 900 to the 9sE

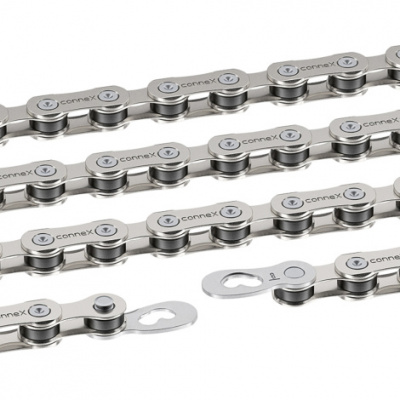

Wippermann structures its 9-speed lineup as a clear progression, and understanding what each step actually buys you makes the choice straightforward. At the base sits the Connex 900, a solid industrial-grade steel chain with no coating. It's the no-nonsense option - functional, honest, and entirely at home on a bike that rarely sees winter muck.

Step up to the Connex 904 and you get nickel coating on the outer plates. That's a meaningful difference for UK riding - nickel resists surface rust from the kind of drizzle that hangs around for days in the Peaks or on a Welsh commute. The Connex 908 takes this further with fully nickel-plated inner and outer plates, which reduces friction noticeably and makes the chain easier to clean after a gritty ride.

Then there's the Connex 9sB, which uses brass plating rather than nickel. Brass is softer than nickel but bonds differently to lubricant, and in conditions where your chain is running through genuine grinding paste - think winter lanes in the Fens or clay-heavy bridleways - the 9sB holds lubricant more consistently and resists the abrasive wear that eats standard chains alive.

The Connex 9sX brings stainless steel inner plates into the build. Stainless inner plates are where most of the wear interaction with cassette cogs and chainring teeth actually happens, so this is a targeted upgrade with real longevity implications rather than a cosmetic one. Tensile strength is also higher across the stainless-spec models, which matters if your riding puts sustained load through the drivetrain.

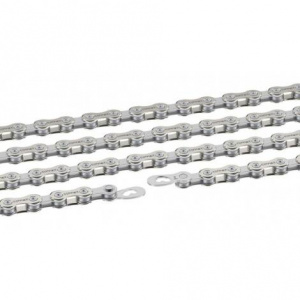

At the top sits the Connex 9sE - the best 9 speed chain for e-bikes in Wippermann's range. It's built specifically around mid-drive motor torque, using reinforced plates and XHB pins (Extra Hardened) that resist the kind of shear force a standard chain simply wasn't designed to handle. If you're running a Bosch or Shimano Steps mid-drive, a standard chain will stretch measurably faster under motor-assisted load. The 9sE addresses that directly. It's also the chain we'd point to if you're a heavier rider who climbs a lot - the same forces apply.

Comparing across the market, KMC 9-speed chains offer solid value at the mid-tier, but Wippermann's coating depth and the reusable Connex link give the range a durability edge that's hard to argue with once you've checked wear intervals over a full winter.

Keeping a Wippermann Chain Running Through a UK Winter

UK winters do specific, predictable damage to chains. Wet roots and standing water strip lubricant fast. Road grit mixed with rain becomes a fine abrasive paste that works between the rollers and accelerates drivetrain wear more quickly than dry miles ever would. The nickel and brass coatings in the Wippermann range are direct answers to both problems - the coatings resist corrosion and reduce the rate at which abrasive material beds into the chain's moving parts.

For servicing, check wear at 0.5% stretch if you're running an expensive cassette you want to preserve. At 0.75% the chain is overdue, and at that point you're risking cassette wear that'll cost more than a timely chain replacement. A basic chain wear tool takes thirty seconds to use. Ride frequency matters more than calendar time - a commuter doing daily miles through January will hit 0.5% faster than a weekend rider doing the same distance over three months.

Wippermann chains use a proprietary reusable Connex link master link that makes removal for deep cleaning or mid-ride repairs genuinely quick. For replacement Connex links and compatible spares, head to our Chain Quick Links category page where you'll find the full range of options.

One practical note: if you're running the 9sB or 9sX in genuine winter conditions, a wax-based lubricant or a thick wet-weather oil will perform better than a light dry lube. The coating does the corrosion work; the lube handles the friction. Get both right and the chain will last considerably longer than a standard steel option at the same price point.

If you're also running a 10 or 11-speed drivetrain on another bike, it's worth knowing Wippermann's approach scales consistently - see the Wippermann 10-speed chains and 11-speed chains for the same tiered logic applied to narrower specs.
