SRAM 13 Speed Cassettes

What You Need Before You Buy: Compatibility Explained

SRAM 13-speed cassette compatibility is strict, and getting this wrong is an expensive mistake. First things first: you need an XDR freehub body on your rear hub. The 10-tooth small cog that defines this system physically cannot seat on a standard HG or even a regular XD driver - the XDR body is fractionally wider to accommodate it. Check your hub spec before anything else. If you're running a current SRAM AXS wheelset, you're likely already sorted, but third-party hubs vary, so confirm with the manufacturer.

Beyond the freehub, these cassettes are designed exclusively for 1x drivetrains and demand SRAM's Flattop chain. A standard 12-speed chain won't index correctly - the Flattop's unique profile is integral to how the X-SYNC tooth profile on the cassette picks up and releases the chain. Using a non-Flattop chain risks skipping, poor shifting, and accelerated wear on cogs that aren't cheap to replace. Stick to the system.

The RED XPLR rear derailleur - which pairs with this cassette - uses SRAM's Full Mount interface, meaning your frame needs a UDH (Universal Derailleur Hanger) to accept it directly. Frames without UDH will need an adaptor, which adds complication. If you're speccing a new gravel build, a UDH-compatible frame is increasingly the sensible starting point. For a full picture of compatible components, our SRAM 13 speed rear derailleurs page covers the derailleur side in detail.

The Range Right Now: RED XPLR and Where It Sits

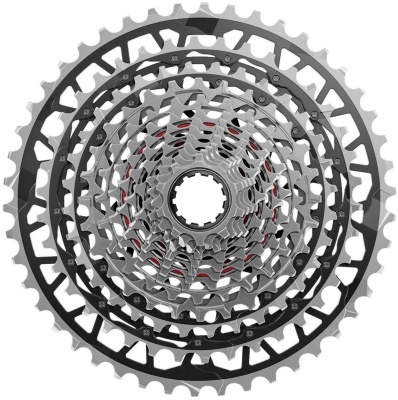

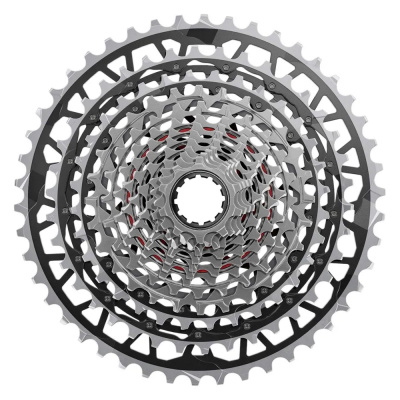

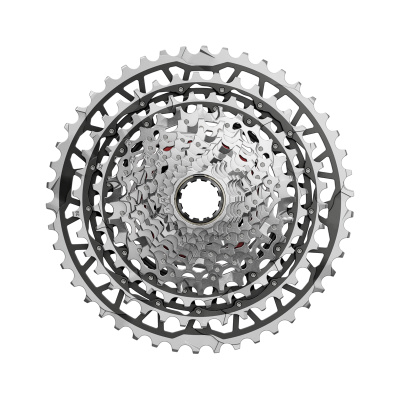

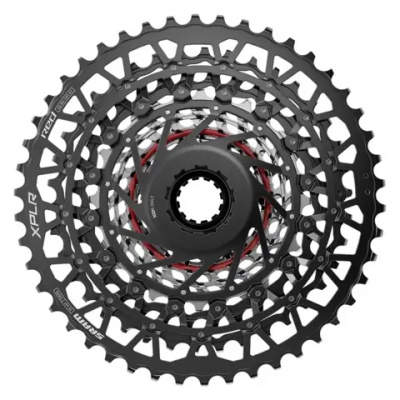

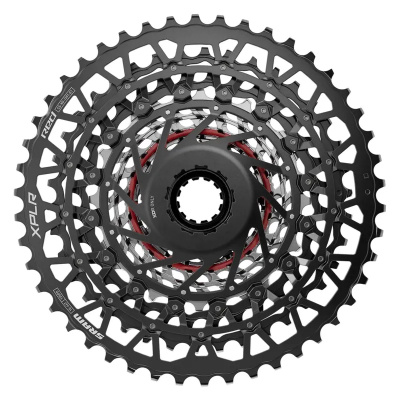

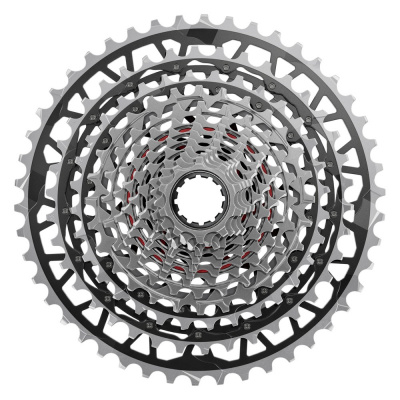

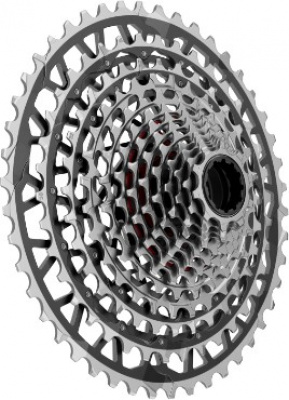

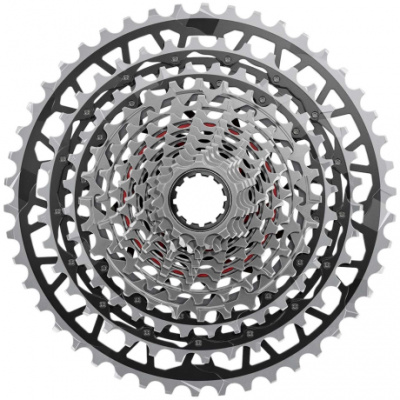

Currently, SRAM's 13-speed cassette offering lives exclusively at the top of the tree. The RED XPLR AXS cassette is a one-piece machined steel X-Dome construction - essentially a single billet of steel shaped into a cassette, rather than individual cogs bolted or pinned together. That process removes material precisely where it isn't needed, yielding a component that's impressively light for a wide-range steel cassette while staying rigid under the kind of lateral load you generate on a steep gravel climb.

The 10-46T is the headline option, and for most gravel riders it covers everything. The gear range is genuinely expansive - think of it as having climbing gears you might associate with a triple chainring setup, paired with a top end that doesn't leave you spinning out on a fast descent. There's also a 10-36T option for riders whose riding is flatter and faster, where the tighter overall spread means even smaller steps between gears on the road sections. Worth knowing if your gravel riding is more Fens-style rolling than Lakeland slog.

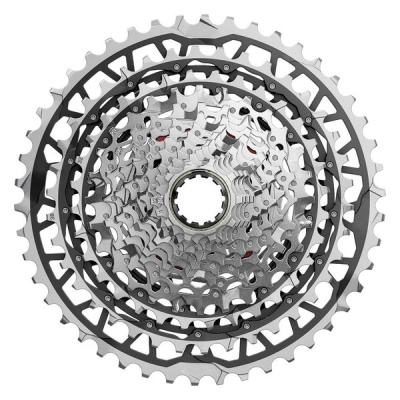

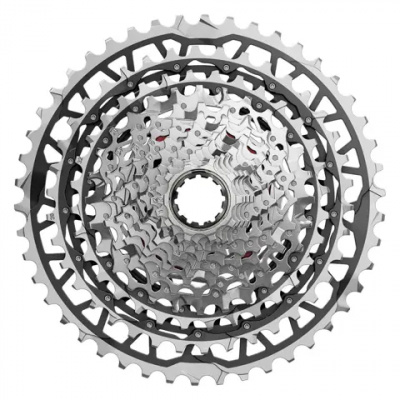

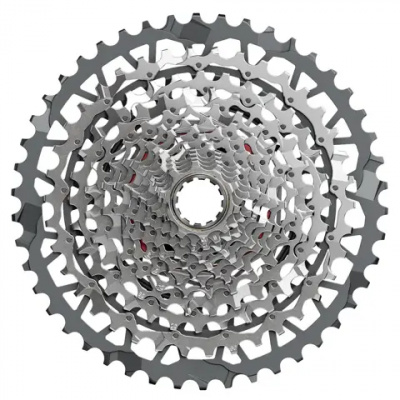

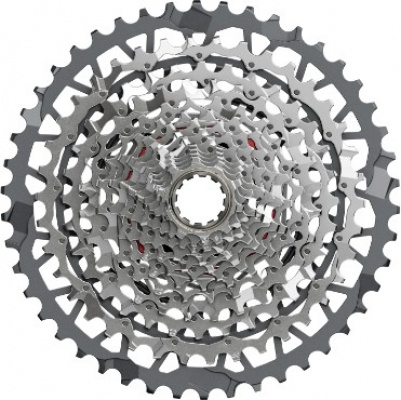

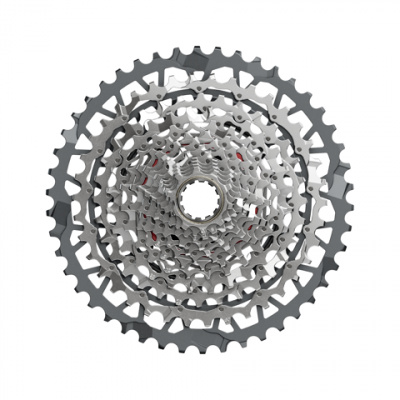

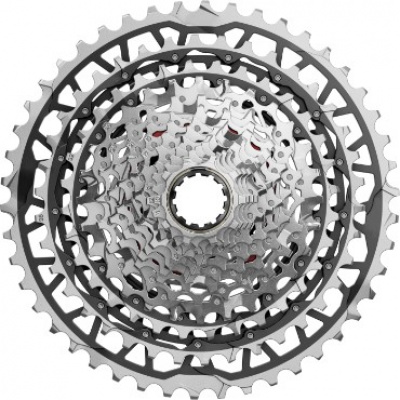

As the 13-speed platform matures, Force and Rival-tier versions will almost certainly follow, likely using pinned cog construction rather than the machined X-Dome approach. That'll add some grams but bring the cost down considerably - important for riders who get through cassettes in a UK winter. For now though, RED XPLR is your only 13-speed option from SRAM. If budget is the primary concern and you're not locked into 13-speed, the Shimano gravel cassettes range offers strong 12-speed alternatives worth comparing.

How It Holds Up in UK Conditions

The tighter cog spacing that makes 13-speed shifting feel so polished is the same thing that makes mud management more demanding. In a wet Peak District winter, grit works into the narrower gaps between cogs fast, and abrasive Peak District grit in particular turns into a grinding paste that accelerates wear on even hardened steel. A machined steel cassette is as durable as steel gets, but it's not magic - it rewards consistent cleaning.

After a muddy ride on the Ridgeway or a chalk-and-clay blast across the South Downs, rinse the drivetrain properly before the muck dries. The X-SYNC tooth profile does a solid job of shedding debris mid-ride and maintaining chain retention when things get slippery, but it works best when the chain is clean and lubricated correctly. Wet lube in winter, wax or dry lube when it's dry - that's not new advice, but it matters more here than on a wider-spaced 10-speed cassette where you have a bit more forgiveness built in.

Chain wear is your early warning system. A stretched chain on a 13-speed cassette will eat through cogs faster than you'd expect given the price of the component. Check chain wear regularly - every few hundred miles in winter - and replace the chain before it's too far gone. Pair it with a set of SRAM Flattop chains kept on rotation and you'll get meaningful longevity from the cassette. For further maintenance essentials, our bike cleaning and maintenance section has what you need.

Pros and Trade-Offs Worth Knowing

What works well:

• Gear range without compromise: The 10-46T spread gives you a genuine top gear alongside a usable climbing ratio - something 1x setups have historically struggled to deliver convincingly.
• Shifting precision: The X-SYNC tooth profile and Flattop chain combination produces fast, clean shifts that hold up under load in a way that impresses anyone who's spent time with earlier 1x systems.
• Machined construction: Single-piece X-Dome architecture means consistent quality, excellent stiffness, and no pinned cog interfaces to work loose over time.

Trade-offs to factor in:

• Cost and ecosystem lock-in: RED XPLR pricing sits at the premium end, and the XDR freehub plus Flattop chain requirements mean you're committing to the SRAM ecosystem fully. That's fine if you're building a gravel bike from scratch, less ideal if you're retrofitting. Riders on Campagnolo or Shimano drivetrains should look at Shimano 12 speed cassettes or Campagnolo cassettes instead.
• No budget option yet: Until Force or Rival 13-speed cassettes arrive, there's no entry point below RED XPLR - which makes this a harder sell for riders who swap cassettes frequently through winter. Worth weighing against a 12-speed build where replacement costs are lower.
• Mud clearance demands attention: The tight spacing isn't a dealbreaker but it does ask more of your cleaning routine in truly mucky conditions. Build that into your thinking before committing.
